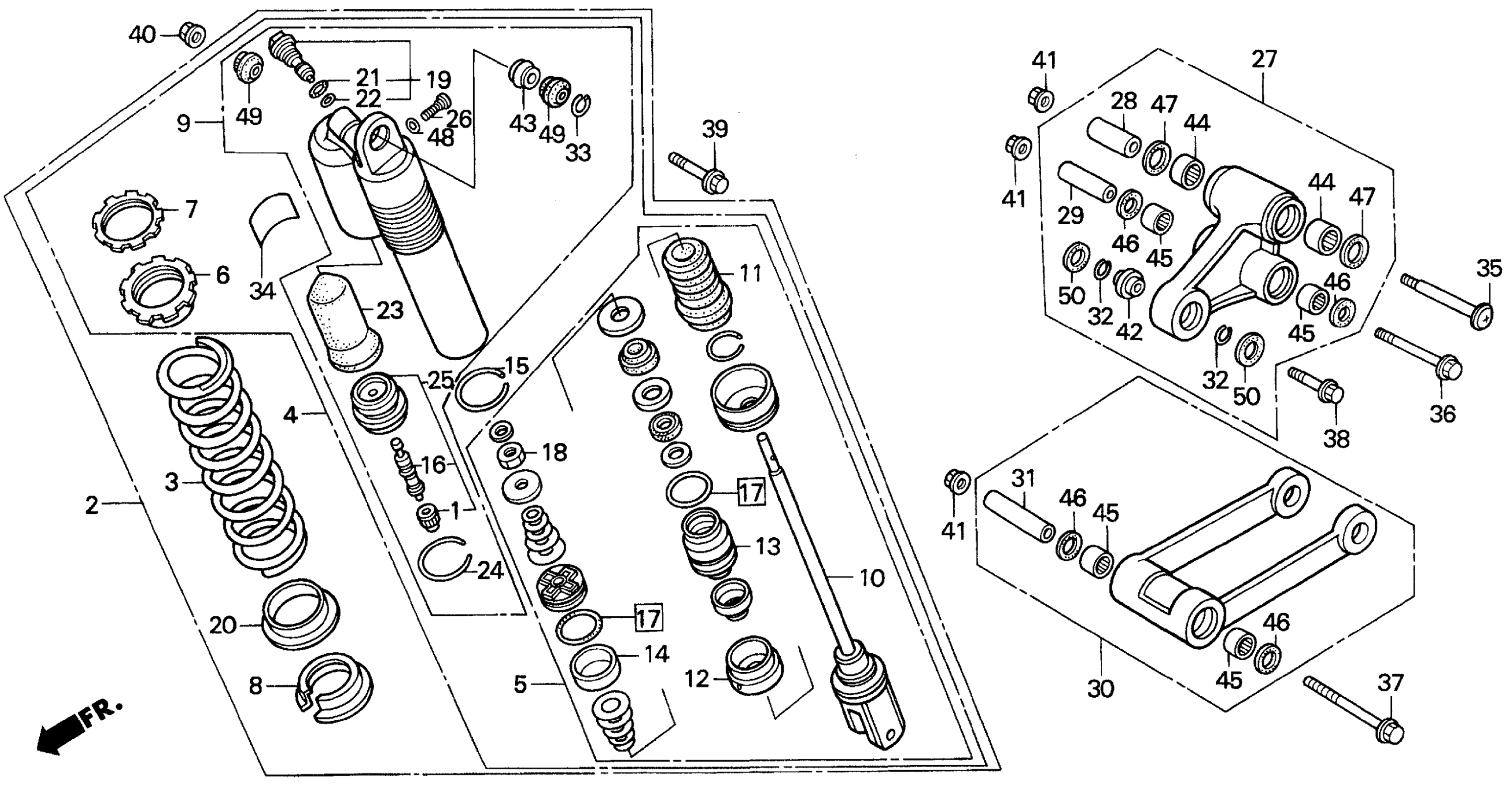

Honda CR125RA (90) MOTORCYCLE, JPN, VIN# JH2JE010-LM100013 TO JH2JE010-LM103521 REAR SHOCK ABSORBER 90 Diagram

#

Description
Price

1

CAP, AIR VALVE

51453-KK0-004

$4.46

2

SHOCK ABSORBER, RR. (KAYABA)

52400-KZ4-771

Unavailable

3

SPRING, RR. SHOCK ABSORBER (5.0KG/MM) (KAYABA)

52401-KZ4-701

Unavailable

3

SPRING, RR. SHOCK ABSORBER (4.6KG/MM) (KAYABA) | (Optional).

52402-KZ4-811

Unavailable

3

SPRING, RR. SHOCK ABSORBER (5.4KG/MM) (KAYABA) | (Optional).

52403-KZ4-821

Unavailable

4

DAMPER, RR. (SHOWA)

52410-KZ4-771

Unavailable

5

ROD, PISTON (KAYABA) (NOT AVAILABLE)

52421-KZ4-701

Unavailable

6

SEAT, SPRING (UPPER) (KAYABA)

52422-KS6-701

Unavailable

7

NUT, ADJUSTER (KAYABA)

52423-KS6-701

Unavailable

8

SEAT, SPRING (LOWER) (KAYABA)

52424-KS6-701

Unavailable

9

CASE ASSY., SUB (KAYABA)

52425-KZ4-701

Unavailable

10

ROD (NOT AVAILABLE)

52426-KZ4-003

Unavailable

11

RUBBER, BUMPER (KAYABA)

52427-KZ4-701

Unavailable

12

CAP, CASE (KAYABA)

52428-KS6-701

Unavailable

13

CASE, ROD GUIDE (KAYABA)

52429-KS6-831

$35.59

14

RING, PISTON (KAYABA)

52431-KS6-831

Unavailable

15

RING, SNAP (KAYABA) This part replaces 52435-KS6-701.

52435-ML3-791

Unavailable

15

RING, SNAP

52435-ML3-791

Unavailable

16

CORE, VALVE

52437-KA3-731

Unavailable

17

O-RING SET (KAYABA)

52437-KS6-305

Unavailable

18

NUT, HEX. (12MM)

52438-KA3-731

$3.10

19

ADJUSTER (KAYABA)

52440-KZ4-701

Unavailable

20

WASHER, SPRING SEAT

52445-KT1-671

Unavailable

21

O-RING (17.8X2.4) (KAYABA)

52447-KS6-701

$2.98

22

O-RING (17.5X1.5)

52448-KZ4-003

Unavailable

23

BLADDER (KAYABA)

52451-KZ4-003

$30.00

24

RING, SNAP (KAYABA)

52452-KZ4-003

Unavailable

25

CAP, BLADDER

52453-KZ4-003

Unavailable

26

BOLT, DRAIN

52454-KZ4-003

Unavailable

27

ARM ASSY., SHOCK ABSORBER This part replaces 52460-KZ4-000.

52460-KZ4-020

Unavailable

27

ARM ASSY., SHOCK ABSORBER This part replaces 52460-KZ4-010.

52460-KZ4-020

Unavailable

27

ARM ASSY., SHOCK ABSORBER

52460-KZ4-020

Unavailable

28

COLLAR, CUSHION ARM PIVOT

52463-KZ4-000

Unavailable

29

COLLAR, CUSHION ARM

52464-KZ4-000

Unavailable

30

ROD ASSY., SHOCK ABSORBER This part replaces 52470-KZ4-000.

52470-KZ4-020

Unavailable

30

ROD ASSY., SHOCK ABSORBER This part replaces 52470-KZ4-010.

52470-KZ4-020

Unavailable

30

ROD ASSY., SHOCK ABSORBER

52470-KZ4-020

Unavailable

31

COLLAR, CONNECTING ROD PIVOT

52473-KZ4-000

Unavailable

32

RING, STOPPER

52487-KN5-000

$3.26

33

RING, STOPPER (KAYABA) (NOT AVAILABLE)

52487-KS6-701

Unavailable

34

LABEL, RR. DAMPER WARNING

87516-KZ4-671

Unavailable

35

BOLT, FLANGE (14X108)

90128-KZ4-010

Unavailable

36

BOLT, FLANGE (12X92)

90129-KZ4-010

Unavailable

37

BOLT, FLANGE (12X113)

90130-KZ4-010

Unavailable

38

BOLT, FLANGE (10X38)

90153-KS7-830

Unavailable

39

BOLT, FLANGE (10X58) This part replaces 90182-KA3-730.

90153-KK0-000

$7.27

40

NUT, AXLE (10MM)

90304-GA6-003

$2.89

41

NUT, FLANGE (12MM) This part replaces 90306-KA4-003.

90306-181-761

$6.08

41

NUT, FLANGE (12MM)

90306-181-761

$6.08

42

BEARING, SPHERICAL (10)

91074-KS7-831

Unavailable

43

BEARING, SPHERICAL (10MM)

91077-KS6-701

Unavailable

44

BEARING, NEEDLE (22X28X16) This part replaces 91078-KS7-834.

91078-KS7-836

Unavailable

44

BEARING, NEEDLE (22X28X16)

91078-KS7-836

Unavailable

45

BEARING, NEEDLE (20X26X20) This part replaces 91079-KS7-834.

91079-KZ3-731

$25.67

45

BEARING, NEEDLE (20X26X20)

91079-KZ3-731

$25.67

46

DUST SEAL (20X28X5)

91261-KS7-832

Unavailable

47

DUST SEAL (22X30X5)

91262-KS7-831

Unavailable

48

O-RING

91310-MJ1-672

Unavailable

49

DUST SEAL, RR. SHOCK (UPPER)

91351-KS6-701

Unavailable

50

DUST SEAL, SHOCK (LOWER)

91351-KS7-832

Unavailable
