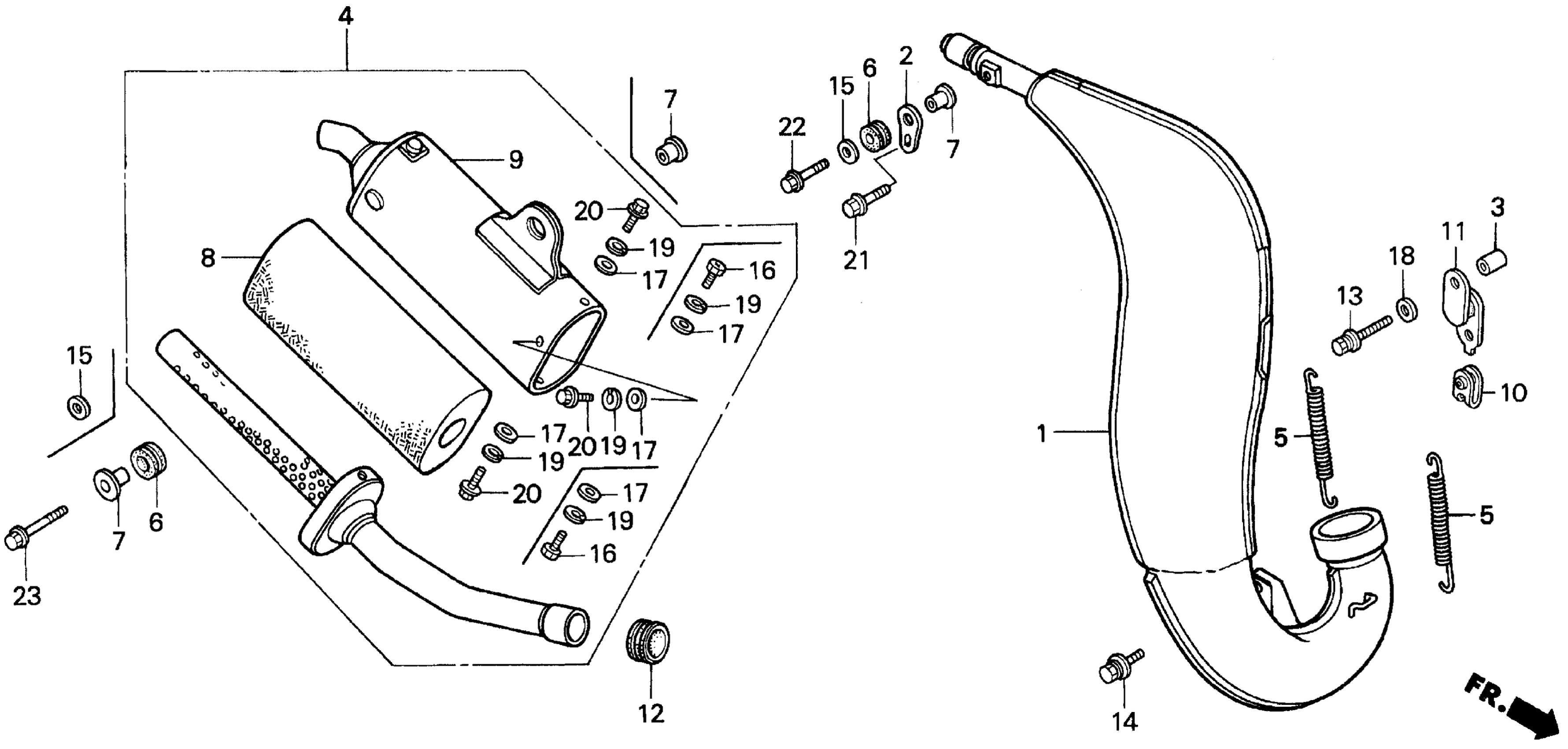

Honda CR125RA (90) MOTORCYCLE, JPN, VIN# JH2JE010-LM100013 TO JH2JE010-LM103521 MUFFLER Diagram

#

Description
Price

1

MUFFLER, EX. This part replaces 18300-KZ4-700.

18300-KZ4-A10

Unavailable

2

STAY, RR. CHAMBER

18325-KS6-000

$22.52

3

COLLAR, MUFFLER MOUNTING

18325-KZ4-000

Unavailable

4

MUFFLER

18330-KZ4-700

Unavailable

5

SPRING, EX. PIPE

18332-KS7-830

$11.53

6

RUBBER, MUFFLER

18334-KA3-830

$3.89

7

COLLAR, MUFFLER SETTING

18336-KS6-700

$5.60

8

WOOL, GLASS

18340-KZ4-000

Unavailable

9

BODY, MUFFLER

18350-KZ4-700

Unavailable

10

NUT, CHAMBER SPRING

18354-KS6-000

$4.98

11

STAY, CHAMBER

18355-KS6-000

$23.32

12

RUBBER, MUFFLER CONNECTING PIPE

18365-KZ4-000

$19.17

13

BOLT, FLANGE (6X40)

90008-GE0-710

Unavailable

14

BOLT-WASHER (6X16)

90102-KS6-000

$9.16

15

WASHER, FENDER MOUNTING

90506-430-000

$2.92

16

BOLT, RECESSED (5X10)

92301-05010-0A

$1.49

17

WASHER, PLAIN (5MM)

94101-05000

$1.49

18

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

18

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

18

WASHER, PLAIN (6MM)

94101-06800

$1.49

19

WASHER, SPRING (5MM)

94111-05000

$1.49

21

BOLT, FLANGE (6X18)

96001-06018-00

$1.80

22

BOLT, FLANGE (6X25)

96001-06025-00

$2.00

23

BOLT, FLANGE (6X28)

96001-06028-00

$2.06
