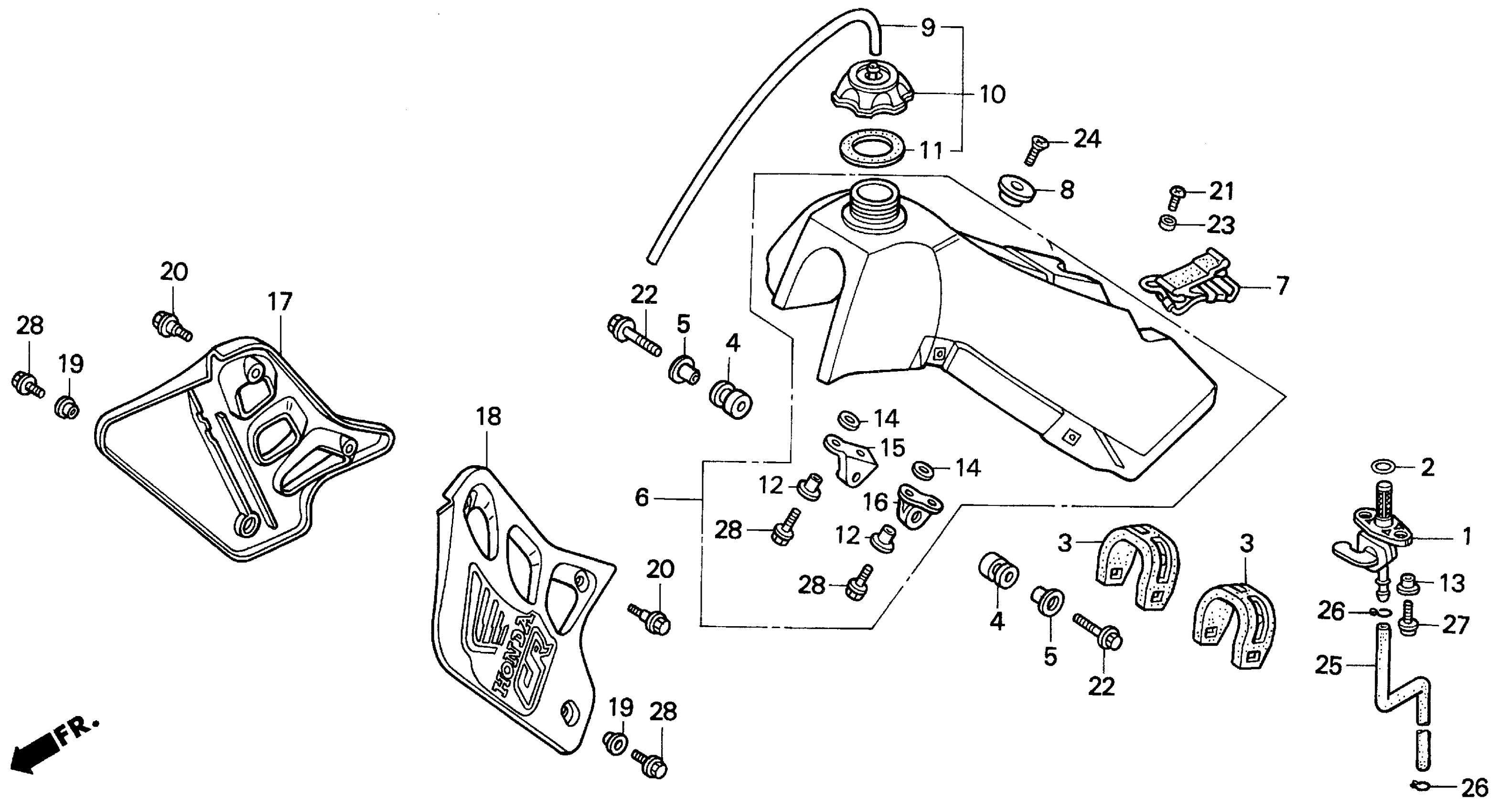

Honda CR125RA (90) MOTORCYCLE, JPN, VIN# JH2JE010-LM100013 TO JH2JE010-LM103521 FUEL TANK 90 Diagram

#

Description
Price

1

PETCOCK ASSY. | Use up to Frame SN LM100015 This part replaces 16950-ML3-910.

16950-ML3-911

$51.08

1

PETCOCK ASSY.

16950-ML3-911

$51.08

2

O-RING (11.8X3.55)

16997-467-000

$2.11

3

RUBBER, TANK SETTING (B)

17506-KA3-830

Unavailable

4

RUBBER, TANK MOUNTING RUBBER, FUEL TANK SETTING

17508-GBF-830

$5.90

4

RUBBER, TANK MOUNTING This part replaces 17508-KS6-700.

17508-GBF-830

$5.90

5

COLLAR, TANK SETTING

17509-KS6-700

$9.13

6

TANK, FUEL *R119* (FLASH RED) (NOT AVAILABLE)

17510-KZ4-000ZB

Unavailable

7

BAND, RR. TANK

17516-KS6-700

Unavailable

8

COLLAR, FR. SEAT

17518-KS6-700

$6.87

9

TUBE, FUEL CAP BREATHER

17521-429-000

$6.98

10

CAP ASSY., FUEL TANK

17620-ML3-840

Unavailable

11

GASKET, FUEL TANK CAP

17624-KA4-000

$5.94

12

COLLAR, FUEL TANK SETTING

17626-KA4-700

$6.71

13

COLLAR, FUEL TANK SETTING

17626-467-000

$4.76

14

RUBBER, FR. FUEL TANK

17627-467-000

$2.39

15

BRACKET, R. FR. FUEL TANK

17634-KS6-701

Unavailable

16

BRACKET, L. FR. FUEL TANK

17635-KS6-701

Unavailable

17

SHROUD SET, R. RADIATOR *R119* (WL) (FLASH RED)

19071-KZ4-700ZA

Unavailable

18

SHROUD SET, L. RADIATOR *R119* (WL) (FLASH RED)

19072-KZ4-700ZA

Unavailable

19

COLLAR (6X23)

19509-KA3-730

$6.99

20

BOLT, SHROUD SETTING

90101-ML3-840

$4.24

21

SCREW, TRUSS (M6X16) This part replaces 90110-KA3-830.

90131-S0X-A00

$1.49

21

SCREW, TRUSS (M6X16)

90131-S0X-A00

$1.49

22

BOLT, FLANGE (6X40)

90137-KA3-830

$2.90

23

COLLAR (6.2X6)

90516-KA3-830

Unavailable

24

SCREW, FLAT (6X16)

93600-06016-0A

$1.49

25

BULK HOSE, FUEL (7.5X8000) (7.3X130)

95001-75008-60M

$103.82

26

CLIP, TUBE (B12)

95002-02120

$2.00

27

BOLT, FLANGE (6X16)

96001-06016-00

$1.49

28

BOLT, FLANGE (6X20)

96001-06020-00

$1.49
