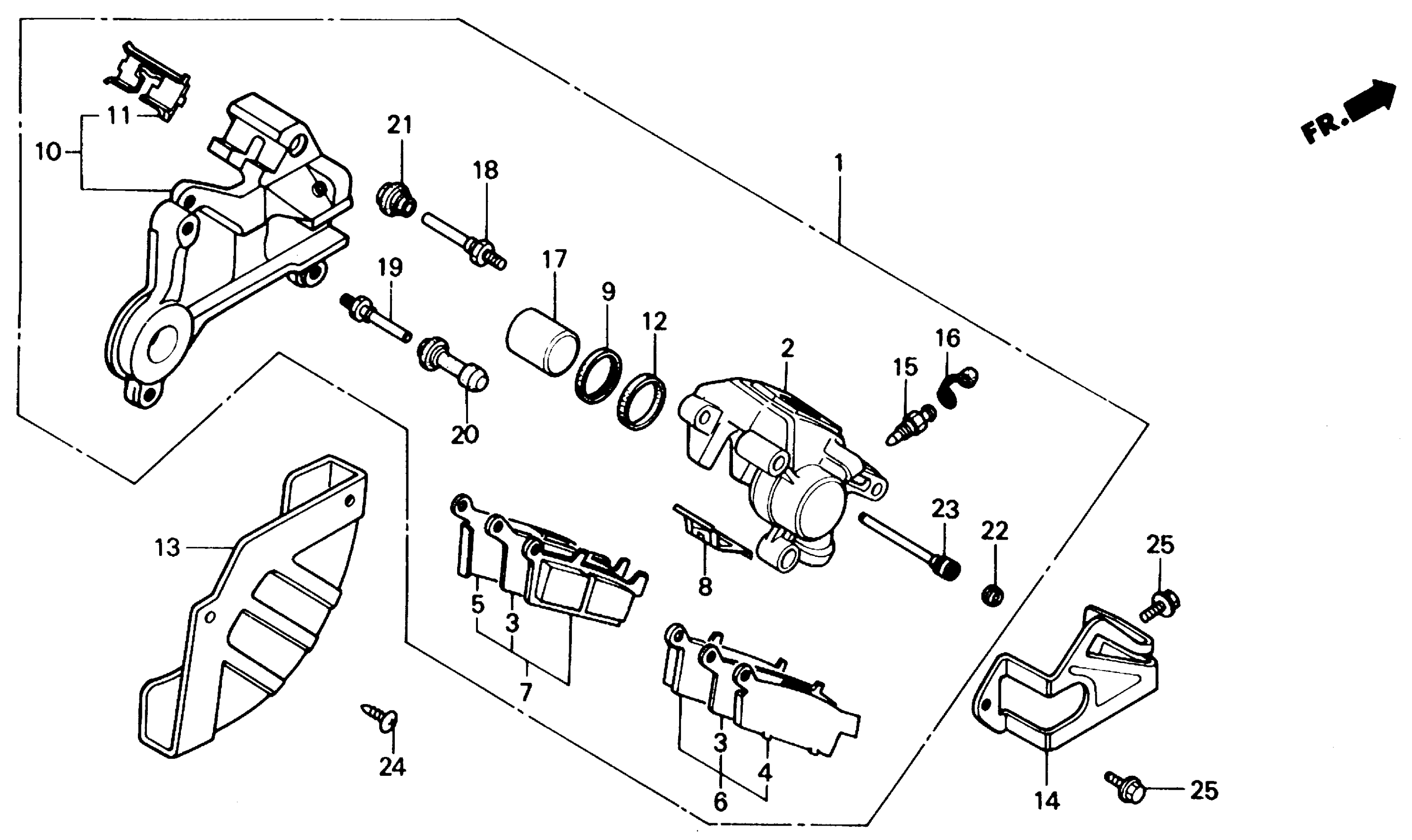

Honda CR125RA (89) MOTORCYCLE, JPN, VIN# JH2JE010-KM000006 REAR BRAKE CALIPER Diagram

#

Description
Price

1

CALIPER ASSY., RR. This part replaces 43100-KS6-831.

43100-KS6-832

Unavailable

2

BODY, RR. CALIPER This part replaces 43101-KS6-701.

43130-KS6-305

Unavailable

2

BODY, RR. CALIPER

43130-KS6-305

Unavailable

3

INSULATOR

43102-KS6-701

Unavailable

4

RETAINER A, PAD

43103-KS6-702

Unavailable

5

RETAINER B, PAD

43104-KS6-702

Unavailable

6

PAD A

43105-KS6-702

Unavailable

7

PAD B

43106-KS6-702

Unavailable

8

SPRING, PAD This part replaces 43108-KS6-701.

43108-MY6-671

$5.28

8

SPRING, PAD

43108-MY6-671

$5.28

9

DUST SEAL

43109-MA3-006

$5.73

10

BRACKET, RR.

43110-KS6-831

Unavailable

11

RETAINER

43112-KS6-701

$6.07

12

SEAL, PISTON

43209-MA3-006

$7.04

13

COVER, RR. DISK

43330-KS6-700

$25.49

14

GUARD, RR. CALIPER

43340-KS6-831

Unavailable

14

GUARD, RR. CALIPER This part replaces 43340-KS6-830.

43340-KS6-831

Unavailable

15

SCREW, BLEEDER

43352-568-003

$7.95

16

CAP, BLEEDER

43353-461-771

$5.05

17

PISTON (NISSIN)

45107-ML4-006

$37.87

18

BOLT A, PIN This part replaces 45131-HA5-671.

45131-HA5-672

$15.44

18

BOLT A, BOLT

45131-HA5-672

$15.44

19

PIN, BOLT

45131-166-016

$7.63

20

BUSH, PIN

45132-166-016

$5.46

21

BOOT B

45133-MA3-006

$5.46

22

PLUG, PIN This part replaces 45203-MG3-006.

45203-MG3-016

$5.12

22

PLUG, PIN

45203-MG3-016

$5.12

23

PIN, HANGER This part replaces 45215-KA3-731.

45215-KA3-732

$11.52

23

PIN, HANGER

45215-KA3-732

$11.52

24

SCREW, SPECIAL (6X10)

90101-KS6-700

$2.62

25

BOLT, FLANGE (6X12)

96300-06012-00

$1.49

25

BOLT, FLANGE (6X12) This part replaces 96500-06012-00.

96300-06012-00

$1.49
