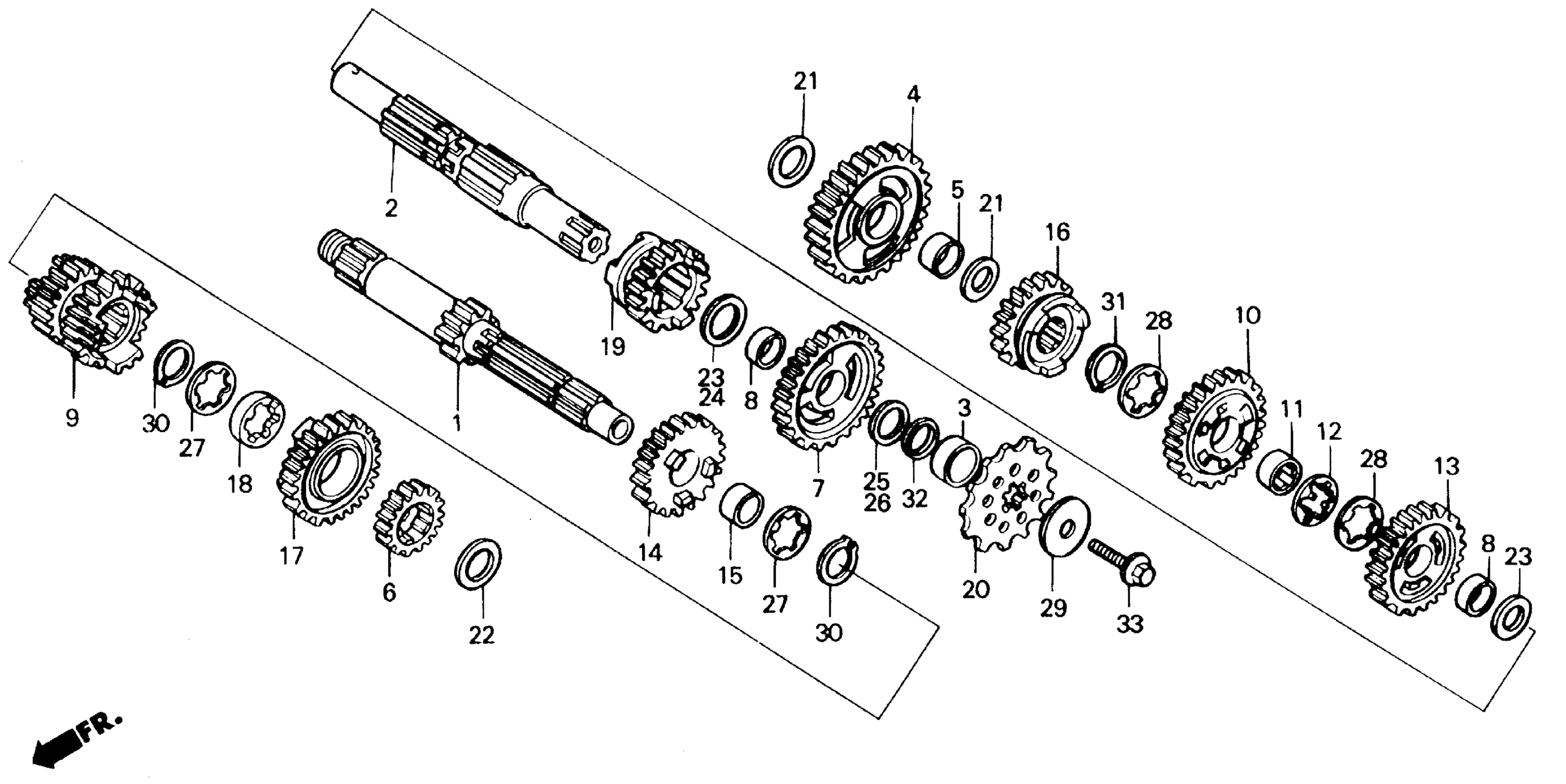

Honda CR125RA (88) MOTORCYCLE, JPN, VIN# JH2JE010-JM900005 TO JH2JE010-JM904170 TRANSMISSION Diagram

#

Description
Price

1

MAINSHAFT (NOT AVAILABLE)

23210-KS6-700

Unavailable

2

COUNTERSHAFT (NOT AVAILABLE)

23221-KS6-700

Unavailable

3

COLLAR, COUNTERSHAFT

23225-KS6-000

$16.44

4

GEAR, COUNTERSHAFT LOW (29T) (NOT AVAILABLE)

23410-KS6-700

Unavailable

6

GEAR, MAINSHAFT SECOND (17T)

23421-KS6-700

Unavailable

7

GEAR, COUNTERSHAFT SECOND (31T)

23431-KS6-701

Unavailable

9

GEAR, MAINSHAFT THIRD & FOURTH (21T/19T) (NOT AVAILABLE)

23441-KS6-830

Unavailable

10

GEAR, COUNTERSHAFT THIRD (29T)

23451-KS6-830

Unavailable

12

WASHER, LOCK

23456-KA3-000

$5.87

13

GEAR, COUNTERSHAFT FOURTH (27T)

23461-KS6-700

Unavailable

14

GEAR, MAINSHAFT FIFTH (23T) (NOT AVAILABLE)

23471-KS6-701

Unavailable

16

GEAR, COUNTERSHAFT FIFTH (26T)

23481-KS6-701

Unavailable

17

GEAR, MAINSHAFT SIXTH (24T) (NOT AVAILABLE)

23491-KS6-700

Unavailable

18

COLLAR, MAINSHAFT SIXTH GEAR

23492-KA3-710

$30.90

19

GEAR, COUNTERSHAFT SIXTH (24T)

23501-KS6-701

Unavailable

20

SPROCKET, DRIVE (13T)

23803-KS6-700

Unavailable

21

WASHER, THRUST (17MM)

90452-178-000

$4.17

24

WASHER, THRUST (22MM)

90452-357-000

$5.79

25

WASHER, THRUST (20X28X1.5)

90453-KA3-710

Unavailable

27

WASHER, SPLINE (20MM)

90461-444-000

$5.04

28

WASHER, SPLINE (22MM)

90464-444-000

$5.37

29

WASHER, SPRING (8X40) This part replaces 90501-KA3-741.

90501-HB9-003

$4.40

30

SET-RING (20MM)

90601-360-000

$9.19

31

SET-RING, COUNTER SECOND

90602-360-000

$9.66

32

O-RING (20MM)

91351-KA3-711

$4.06

33

BOLT, FLANGE (8X20)

96300-08020-07

$2.00
