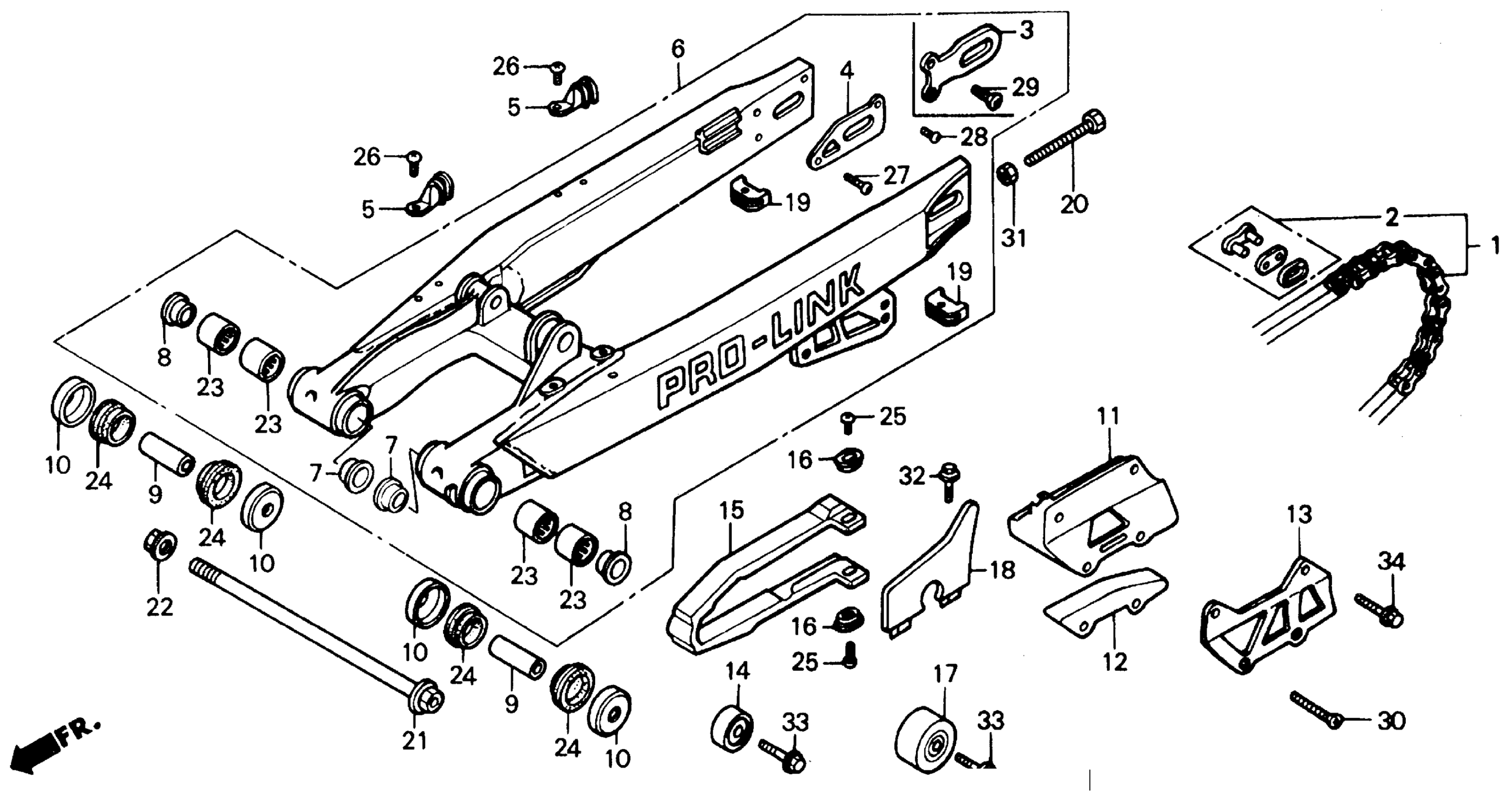

Honda CR125RA (88) MOTORCYCLE, JPN, VIN# JH2JE010-JM900005 TO JH2JE010-JM904170 SWINGARM 87-88 Diagram

#

Description
Price

1

CHAIN, DRIVE

405W3-KA4-505

Unavailable

1

CHAIN, DRIVE | (Optional).

405W3-KA4-505

Unavailable

1

CHAIN, DRIVE This part replaces 40530-KA3-831.

405W3-KA4-505

Unavailable

1

CHAIN, DRIVE This part replaces 40530-KA3-832.

405W3-KA4-505

Unavailable

1

CHAIN, DRIVE This part replaces 40530-KS6-831.

405W3-KA4-505

Unavailable

1

CHAIN, DRIVE This part replaces 40532-KA3-733.

405W3-KA4-505

Unavailable

1

CHAIN, DRIVE | (Optional). This part replaces 40532-KA3-831.

405W3-KA4-505

Unavailable

1

CHAIN, DRIVE | (Optional). This part replaces 40532-KA3-832.

405W3-KA4-505

Unavailable

1

CHAIN, DRIVE | (Optional). This part replaces 40532-KS6-315.

405W3-KA4-505

Unavailable

2

MASTER LINK (DAIDO) | (Optional).

40531-KA3-831

Unavailable

2

MASTER LINK (TAKASAGO)

40531-KS6-831

Unavailable

4

WASHER, RR. SWINGARM (INNER)

42307-KS6-830

Unavailable

5

GUIDE, RR. BRAKE HOSE

43468-KS6-700

$11.31

6

SWINGARM ASSY., RR. (WL)

52000-KS6-830

Unavailable

7

BUSH, PIVOT THRUST (IN.)

52108-KS6-701

Unavailable

8

BUSH, PIVOT THRUST

52109-KA4-701

$16.01

9

COLLAR, RR. SWINGARM (NOT AVAILABLE)

52141-KA3-830

$14.71

10

CAP, DUST SEAL

52144-KA3-731

$14.60

11

GUIDE, CHAIN

52146-KS6-700

Unavailable

12

SLIDER, CHAIN GUIDE

52147-KS6-701

$25.73

13

PLATE, CHAIN GUIDE (NOT AVAILABLE)

52156-KS6-700

Unavailable

14

ROLLER, CHAIN TENSIONER

52158-KA3-831

$51.10

15

SLIDER, CHAIN

52170-KS6-700

Unavailable

16

WASHER, CHAIN SLIDER | Use up to Frame SN JM901207

52171-KA3-830

$2.89

16

WASHER, CHAIN SLIDER | Use from Frame SN JM901208

52171-KR6-000

$2.57

17

ROLLER, CHAIN (UPPER)

52175-KA3-831

Unavailable

18

SPLASH GUARD, CHAIN (NOT AVAILABLE)

52180-KS6-700

Unavailable

19

CAP, RR. SWINGARM FRAME

52190-KS6-700

Unavailable

20

BOLT, HEX. (8X49)

90106-KS6-700

$5.69

21

BOLT, RR. SWINGARM

90117-KA3-831

Unavailable

22

NUT, RR. SWINGARM PIVOT

90301-430-000

Unavailable

23

BEARING, RR. SWINGARM PIVOT (TOYO) This part replaces 91071-KS6-003.

91071-KS6-004

$21.15

23

BEARING, RR. SWINGARM PIVOT (TOYO)

91071-KS6-004

$21.15

24

DUST SEAL (32X36.8X8) (ARAI)

91253-KA3-731

Unavailable

24

DUST SEAL

91253-KA4-701

$12.86

24

DUST SEAL This part replaces 91253-KA4-702.

91253-KA4-701

$12.86

25

SCREW, PAN (5X6)

93500-05006-0H

$1.49

26

SCREW, PAN (5X8)

93500-05008-0A

$1.49

27

SCREW, PAN (6X28)

93500-06028-0A

$1.49

28

SCREW, FLAT (5X12)

93600-05012-0A

$1.49

30

SCREW, FLAT (6X40)

93600-06040-0A

$1.49

31

NUT, FLANGE (8MM)

94050-08000

$1.49

32

BOLT, FLANGE (6X16) This part replaces 96000-06016-00.

96001-06016-00

$1.49

32

BOLT, FLANGE (6X16)

96001-06016-00

$1.49

33

BOLT, FLANGE (8X35)

96300-08035-00

$1.95

34

BOLT, FLANGE (6X20)

96300-06020-00

$1.49

34

BOLT, FLANGE (6X20) This part replaces 96500-06020-00.

96300-06020-00

$1.49
