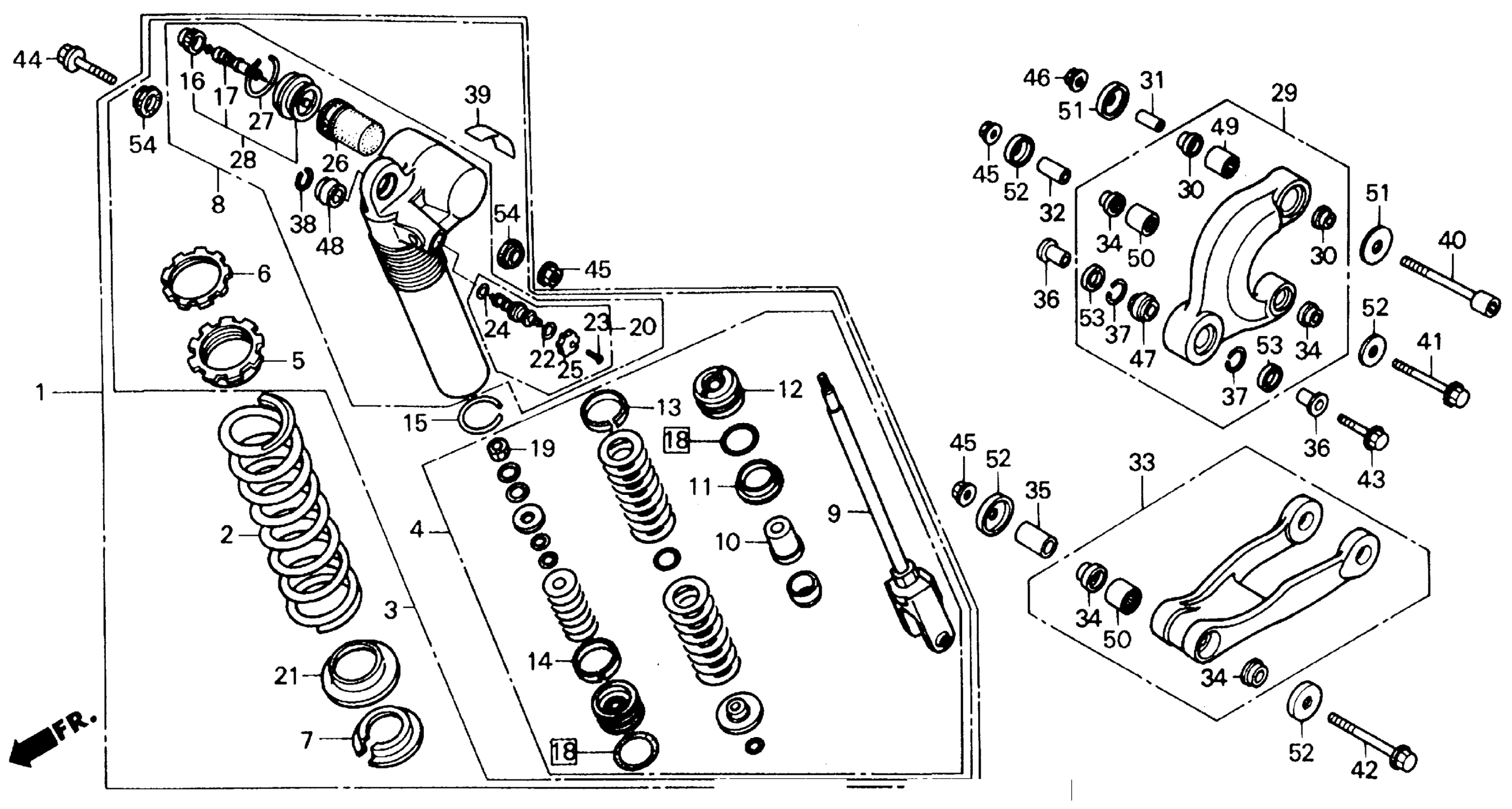

Honda CR125RA (88) MOTORCYCLE, JPN, VIN# JH2JE010-JM900005 TO JH2JE010-JM904170 SHOCK ABSORBER 87-88 Diagram

#

Description
Price

1

SHOCK ABSORBER ASSY., RR. (KAYABA)

52400-KS6-841

Unavailable

2

SPRING, RR. SHOCK ABSORBER (49.03N/MM,5.0KGF/MM) (KAYABA)

52401-KS6-841

Unavailable

2

SPRING, RR. SHOCK ABSORBER (45.11N/MM,4.6KGF/MM) (KAYABA) (2 GROOVE) | (Optional).

52402-KS6-820

Unavailable

2

SPRING, RR. SHOCK ABSORBER (52.96N/MM,5.4KGF/MM) (KAYABA) (FIVE GROOVE) | (Optional).

52403-KS6-820

Unavailable

3

DAMPER, RR. (KAYABA)

52410-KS6-841

Unavailable

4

ROD, PISTON (KAYABA)

52421-KS6-701

Unavailable

4

ROD, PISTON (KAYABA) (NOT AVAILABLE)

52421-KS6-831

Unavailable

5

SEAT, SPRING (UPPER) (KAYABA)

52422-KS6-701

Unavailable

6

NUT, ADJUSTER (KAYABA)

52423-KS6-701

Unavailable

7

SEAT, SPRING (LOWER) (KAYABA)

52424-KS6-701

Unavailable

8

CASE, RR. SHOCK ABSORBER (KAYABA)

52425-KS6-831

Unavailable

9

ROD (KAYABA)

52426-KS6-831

Unavailable

10

RUBBER, BUMPER (KAYABA) (NOT AVAILABLE)

52427-KS6-701

Unavailable

11

CAP, CASE (KAYABA)

52428-KS6-701

Unavailable

12

CASE, ROD GUIDE (KAYABA)

52429-KS6-831

$35.59

13

RING, PISTON (KAYABA)

52431-KS6-831

Unavailable

15

RING, SNAP (KAYABA) This part replaces 52435-KS6-701.

52435-ML3-791

Unavailable

15

RING, SNAP

52435-ML3-791

Unavailable

16

CAP, AIR VALVE

52436-KA3-731

Unavailable

17

CORE, VALVE

52437-KA3-731

Unavailable

18

O-RING SET (KAYABA)

52437-KS6-305

Unavailable

19

NUT, HEX. (12MM)

52438-KA3-731

$3.10

20

ADJUSTER (KAYABA)

52440-KS6-831

Unavailable

21

WASHER, SPRING SEAT

52445-KT1-671

Unavailable

22

O-RING (17.8X2.4) (KAYABA)

52447-KS6-701

$2.98

23

SCREW, PAN (3X8)

52448-KS6-004

Unavailable

24

O-RING (15.5X1.5) (KAYABA)

52448-KS6-701

Unavailable

25

DIAL, ADJUSTING (NOT AVAILABLE)

52449-KS6-701

Unavailable

26

BLADDER (KAYABA) (NOT AVAILABLE)

52451-KS6-701

Unavailable

27

RING, SNAP (KAYABA)

52452-KS6-701

Unavailable

28

CAP, BLADDER (KAYABA)

52453-KS6-701

Unavailable

29

ARM ASSY., SHOCK ABSORBER (NOT AVAILABLE)

52460-KA3-831

Unavailable

30

BUSH, DAMPER ARM

52462-KA3-831

Unavailable

31

COLLAR, CUSHION ARM PIVOT

52463-KA3-830

Unavailable

32

COLLAR, CUSHION ARM

52464-KA3-830

Unavailable

33

ROD ASSY., RUBBER CONNECTING

52470-KS6-000

Unavailable

34

BUSH, SHOCK CONNECTING ROD THRUST

52472-KA3-831

Unavailable

35

COLLAR, CONNECTING ROD PIVOT

52473-KA3-830

Unavailable

36

COLLAR, SHOCK ABSORBER (UPPER)

52486-KA3-731

Unavailable

37

RING, STOPPER

52487-KA3-731

Unavailable

38

RING, STOPPER (KAYABA) (NOT AVAILABLE)

52487-KS6-701

Unavailable

39

LABEL, RR. DAMPER WARNING

87516-KS6-701

Unavailable

40

BOLT, SOCKET (12X86)

90128-KS6-700

Unavailable

41

BOLT, FLANGE (10X77)

90129-KF0-000

$14.86

42

BOLT, FLANGE (10X83)

90130-KS6-700

Unavailable

43

BOLT, FLANGE (10X48)

90153-KA3-730

Unavailable

44

BOLT, FLANGE (10X52)

90154-KA3-830

Unavailable

45

NUT, AXLE (10MM)

90304-GA6-003

$2.89

46

NUT, FLANGE (12MM) This part replaces 90306-KA4-003.

90306-181-761

$6.08

46

NUT, FLANGE (12MM)

90306-181-761

$6.08

47

BEARING, SPHERICAL (14MM) This part replaces 91077-KA3-731.

91077-KN5-004

$22.62

47

BEARING, SPHERICAL (14MM)

91077-KN5-004

$22.62

48

BEARING, SPHERICAL (10MM)

91077-KS6-701

Unavailable

49

BEARING, NEEDLE (19.1X26.1X27) (TOYO)

91078-KA3-831

Unavailable

50

BEARING, NEEDLE (17.5X24.5X22)

91079-KA3-831

$27.76

51

SEAL, CUSHION ARM PIVOT

91261-KS6-701

$8.62

52

SEAL, RUBBER CONNECTING ROD PIVOT

91262-KA3-831

Unavailable

53

DUST SEAL, RR. SHOCK (UPPER)

91351-KA3-731

Unavailable

54

DUST SEAL, RR. SHOCK (UPPER)

91351-KS6-701

Unavailable
