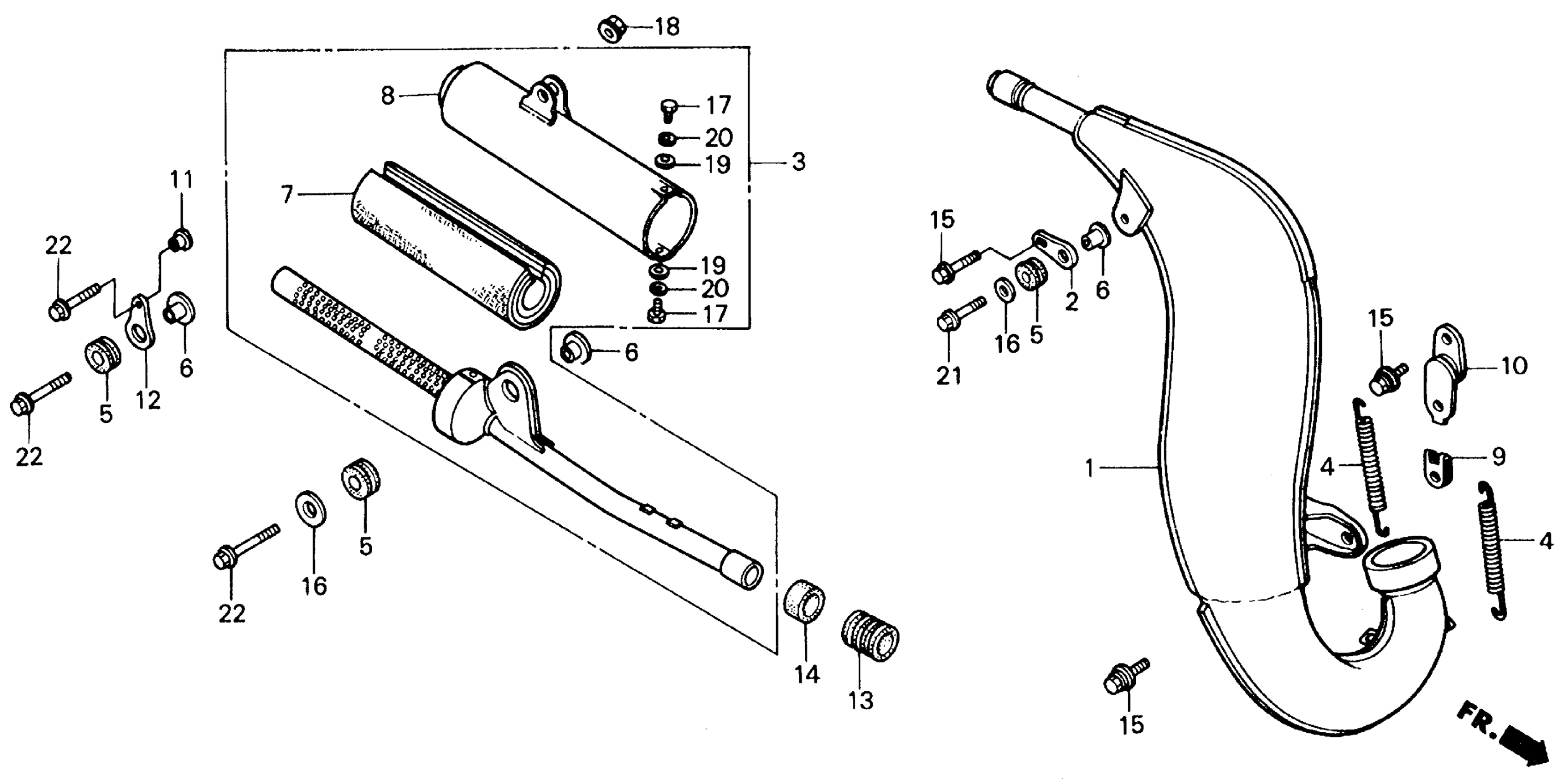

Honda CR125RA (88) MOTORCYCLE, JPN, VIN# JH2JE010-JM900005 TO JH2JE010-JM904170 MUFFLER 87-88 Diagram

MUFFLER (NOT AVAILABLE)

18300-KS6-700

Unavailable

STAY, RR. CHAMBER

18325-KS6-000

$20.23

MUFFLER (NOT AVAILABLE)

18330-KS6-700

Unavailable

SPRING, EX. PIPE

18332-KS6-000

$11.18

RUBBER, MUFFLER

18334-KA3-830

$3.62

COLLAR, MUFFLER SETTING

18336-KS6-700

$5.22

WOOL, GLASS

18340-KS6-700

Unavailable

BODY, MUFFLER

18350-KS6-700

Unavailable

NUT, MUFFLER SPRING

18354-KS6-000

$4.64

STAY, CHAMBER

18355-KS6-000

$20.94

COLLAR, MUFFLER (NOT AVAILABLE)

18356-KS6-000

Unavailable

STAY, MUFFLER (NOT AVAILABLE)

18358-KS6-000

Unavailable

SEAL, MUFFLER

18365-KA3-830

Unavailable

RUBBER, MUFFLER CONNECTING PIPE (NOT AVAILABLE)

18365-KS6-000

Unavailable

BOLT-WASHER (6X16)

90102-KS6-000

$8.24

WASHER, FENDER SETTING

90506-430-000

$2.71

BOLT, RECESSED (5X10)

92301-05010-0A

Unavailable

NUT, FLANGE (6MM)

94050-06080

$0.59

WASHER, PLAIN (5MM)

94101-05000

$0.90

WASHER, SPRING (5MM)

94111-05000

$1.03

BOLT, FLANGE (6X25)

96000-06025-00

$1.91

BOLT, FLANGE (6X25)

96001-06025-00

$1.91

BOLT, FLANGE (6X28) This part replaces 96000-06028-00.

96001-06028-00

Unavailable

BOLT, FLANGE (6X28)

96001-06028-00

Unavailable
