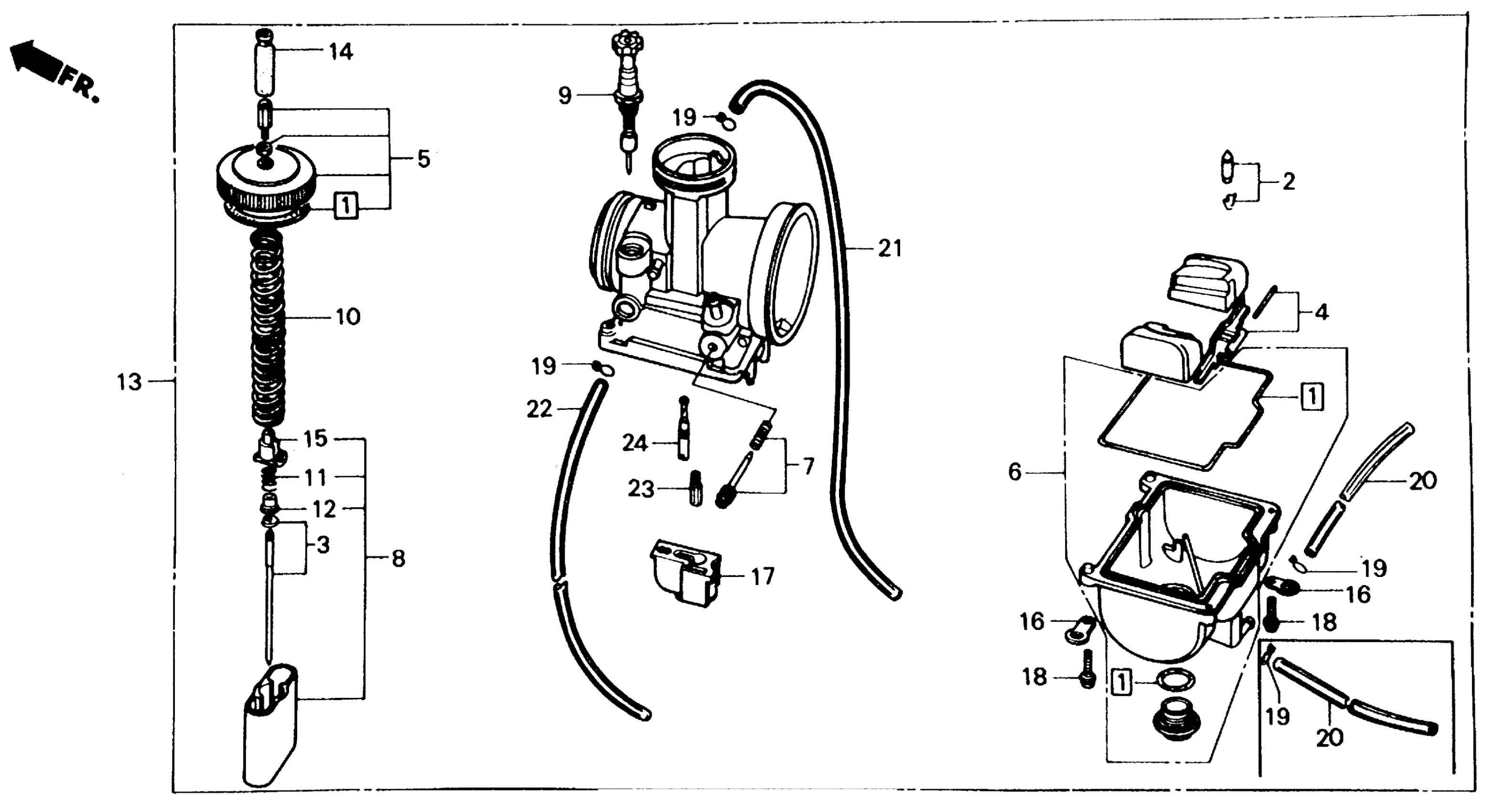

Honda CR125RA (88) MOTORCYCLE, JPN, VIN# JH2JE010-JM900005 TO JH2JE010-JM904170 CARBURETOR 85-89 Diagram

#

Description
Price

1

GASKET SET

16010-KA3-004

$48.37

2

VALVE SET, FLOAT

16011-KA3-741

$45.27

3

NEEDLE SET, JET (R1469N)

16012-KS6-831

Unavailable

4

FLOAT SET This part replaces 16013-KA3-741.

16013-HA2-671

$50.15

5

TOP SET

16014-KA3-761

Unavailable

6

CHAMBER SET, FLOAT

16015-VM0-004

Unavailable

7

SCREW SET

16016-HA2-004

Unavailable

8

VALVE SET, THROTTLE

16022-KA3-761

Unavailable

9

VALVE SET, STARTER

16046-KA3-761

$74.90

10

SPRING, COMPRESSION COIL

16050-KA3-761

Unavailable

11

SPRING, COMPRESSION COIL

16051-KA3-761

$16.41

12

COLLAR, SPRING SETTING

16066-KA3-761

Unavailable

13

CARBURETOR ASSY. This part replaces 16100-KS6-832.

16100-KS6-307

Unavailable

14

CAP, CABLE SEALING

16118-166-004

$8.08

15

HOLDER, CABLE

16137-KA3-761

Unavailable

17

PLATE, BUFFER

16185-KA3-761

Unavailable

18

SCREW-WASHER (4X16)

93892-04016-08

$1.49

19

CLIP, TUBE (B7)

95002-02070

$1.80

20

BULK HOSE, VINYL (3.5X6.5X8000) (3.5X6.5X270)

95003-05008-60M

$19.34

21

BULK HOSE, VINYL (4X7X8000) (4X7X330)

95003-07008-60M

$24.47

22

BULK HOSE, VINYL (4X7X8000) (4X7X360)

95003-07008-60M

$24.47

23

JET, MAIN (#165) This part replaces 99101-357-1650.

99113-GHB-1650

$9.41

23

JET, MAIN (#165)

99113-GHB-1650

$9.41

24

JET, SLOW (#60)

99103-KA3-0600

Unavailable

24

JET, SLOW (#60) This part replaces 99103-440-0600.

99103-KA3-0600

Unavailable
