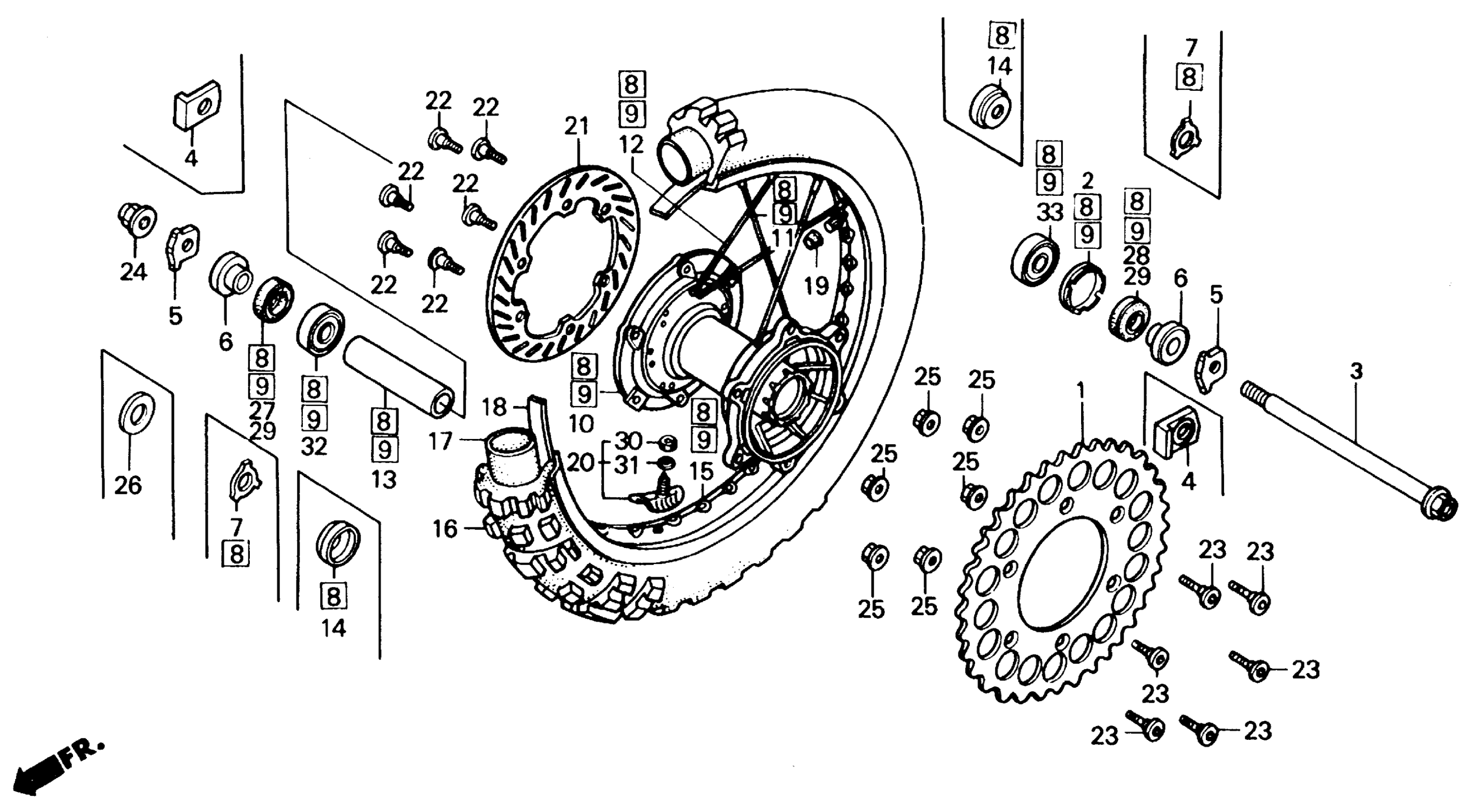

Honda CR125RA (87) MOTORCYCLE, JPN, VIN# JH2JE010-HC800020 TO JH2JE010-HC806942 REAR WHEEL 87-89 Diagram

#

Description
Price

1

SPROCKET, FINAL DRIVEN (51T) This part replaces 41201-KS6-700.

41201-MEY-000

$115.77

1

SPROCKET, FINAL DRIVEN (53T) | (Optional). This part replaces 41201-KS7-700.

41201-KZ3-740

Unavailable

1

SPROCKET, FINAL DRIVEN (53T) | (Optional).

41201-KZ3-740

Unavailable

1

SPROCKET, FINAL DRIVEN (51T) This part replaces 41201-KS6-830.

41201-MEY-000

$115.77

1

SPROCKET, FINAL DRIVEN (51T) This part replaces 41201-KZ4-711.

41201-MEY-000

$115.77

1

SPROCKET, RR. (49T) | (Optional).

41202-KS6-700

Unavailable

1

SPROCKET, FINAL DRIVEN (51T) This part replaces 41202-KZ3-B00.

41201-MEY-000

$115.77

1

SPROCKET, FINAL DRIVEN (51T) This part replaces 41202-KZ4-J20.

41201-MEY-000

$115.77

1

SPROCKET, FINAL DRIVEN (51T) (STEEL) | (Optional).

41204-KA3-710

Unavailable

2

RETAINER, RR. WHEEL BEARING

41231-KS6-700

Unavailable

3

AXLE, RR. WHEEL

42301-KS6-700

Unavailable

4

COLLAR, RR. AXLE (NOT AVAILABLE)

42306-KS6-700

Unavailable

6

COLLAR, RR. WHEEL SIDE

42311-KS6-700

Unavailable

7

WASHER, RR. WHEEL SIDE

42312-KA3-730

Unavailable

8

RIM ASSY., RR. WHEEL

426A5-KS6-700

Unavailable

10

HUB, RR. WHEEL *NH105* (MAT BLACK)

42601-KS6-700ZA

Unavailable

11

SPOKE SET A, RR. (192.5MM)

42610-KA3-830

Unavailable

11

SPOKE SET A, RR. (192.5MM) This part replaces 42610-KS6-305.

42610-KA3-830

Unavailable

13

COLLAR, RR. DISTANCE (NOT AVAILABLE)

42620-KS6-700

Unavailable

14

CAP, DISTANCE COLLAR

42621-KA3-711

Unavailable

15

RIM, RR. WHEEL (1.85X18) (DAIDO)

42701-KS6-701

Unavailable

16

TIRE, RR. (100/100-18) (59M D756) (DUNLOP) This part replaces 42711-KS6-771.

42711-KSC-004

Unavailable

16

TIRE, RR. (100/100-18) (59M D756) (DUNLOP) This part replaces 42711-KZ4-771.

42711-KSC-004

Unavailable

17

TUBE, TIRE This part replaces 42712-KS6-003.

42712-KT1-673

$37.60

17

TUBE, TIRE This part replaces 42712-KS6-641.

42712-KT1-673

$37.60

17

TUBE, TIRE This part replaces 42712-KS7-641.

42712-KT1-673

$37.60

17

TUBE, TIRE This part replaces 42712-KT1-671.

42712-KT1-673

$37.60

17

TUBE, TIRE This part replaces 42712-KV6-009.

42712-KT1-673

$37.60

17

TUBE, TIRE This part replaces 42712-300-004.

42712-KT1-673

$37.60

17

TUBE, TIRE This part replaces 42712-400-003.

42712-KT1-673

$37.60

18

FLAP, TIRE (2.15-18) (DUNLOP) This part replaces 42713-KS6-641.

42713-300-004

$6.14

19

CAP, VALVE

42714-KA3-710

$10.46

20

STOPPER, BEAD (1.85)

42715-KA2-680

$32.27

21

DISK, RR. BRAKE (NOT AVAILABLE)

43351-KS6-701

Unavailable

22

BOLT, DISK (6X17)

90105-KS6-700

$5.20

23

SCREW, FLAT (8X29)

90125-KA3-700

$6.19

24

NUT, FLANGE (18MM) This part replaces 90305-KS6-003.

90305-MCC-000

$7.10

25

NUT, HEX. (8MM)

90309-357-000

$3.40

26

WASHER (20X33) (NOT AVAILABLE)

90501-KS6-700

Unavailable

29

DUST SEAL (28X42X8) (NOK) This part replaces 91257-KA3-711.

91257-MAY-003

$9.16

29

DUST SEAL (28X42X8) (NOK) This part replaces 91257-KA3-712.

91257-MAY-003

$9.16

29

DUST SEAL (28X42X8) (NOK)

91257-MAY-003

$9.16

30

NUT, HEX. (8MM)

94001-08000-0S

$1.49

31

WASHER, SPRING (8MM)

94111-08000

$1.49

32

BEARING, RADIAL BALL (6004UU)

96150-60040-10

$19.53

33

BEARING, RADIAL BALL (6204UU)

96150-62040-10

$18.44
