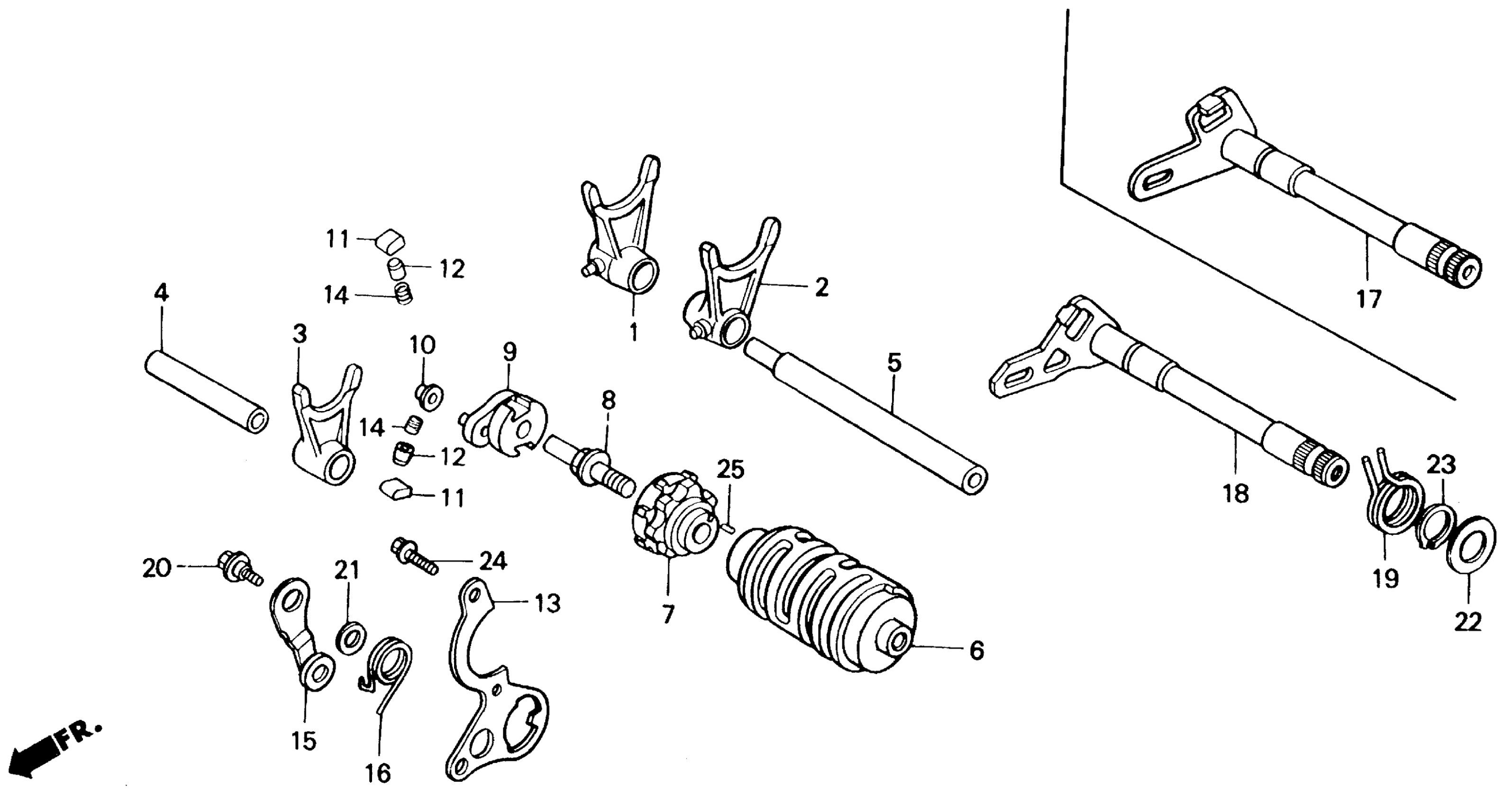

Honda CR125RA (87) MOTORCYCLE, JPN, VIN# JH2JE010-HC800020 TO JH2JE010-HC806942 GEARSHIFT DRUM Diagram

#

Description
Price

1

FORK, R. GEARSHIFT This part replaces 24211-KS6-700.

24211-KS6-701

Unavailable

1

FORK, R. GEARSHIFT

24211-KS6-701

Unavailable

2

FORK, L. GEARSHIFT (NOT AVAILABLE)

24221-KS6-700

Unavailable

3

FORK C, GEARSHIFT

24231-KS6-700

Unavailable

4

MAINSHAFT, SHIFT FORK

24265-KA3-760

$14.15

5

COUNTERSHAFT, GEARSHIFT FORK This part replaces 24266-KA3-760.

24266-KSR-730

$47.74

6

DRUM, GEARSHIFT This part replaces 24311-KS6-700.

24311-KS6-701

Unavailable

6

DRUM, GEARSHIFT

24311-KS6-701

Unavailable

7

CENTER, SHIFT DRUM

24312-KA3-741

$63.47

8

PIN, SHIFTER

24315-KA3-710

$19.43

9

SHIFTER, DRUM

24320-KS6-700

Unavailable

10

COLLAR, SHIFTER This part replaces 24322-KA3-740.

24322-HA0-000

$5.23

10

COLLAR, SHIFTER

24322-HA0-000

$5.23

11

PAWL, RATCHET

24324-KA3-740

Unavailable

12

PLUNGER, PAWL This part replaces 24326-360-000.

24326-360-010

$4.95

12

PLUNGER, PAWL

24326-360-010

$4.95

13

PLATE, GUIDE

24328-KS6-700

Unavailable

14

SPRING, PAWL PLUNGER

24329-KA3-740

$2.71

15

STOPPER, DRUM

24430-KA3-740

$20.10

16

SPRING, DRUM STOPPER

24435-KA3-710

Unavailable

18

SPINDLE, GEARSHIFT

24610-KS6-700

Unavailable

19

SPRING, SHIFT RETURN

24651-KA3-740

$10.57

20

BOLT, GEARSHIFT DRUM STOPPER ARM PIVOT | Use up to Engine SN 5802240 This part replaces 90023-041-000.

90023-041-010

$2.07

20

BOLT, GEARSHIFT DRUM STOPPER ARM PIVOT

90023-041-010

$2.07

21

WASHER, DRUM STOPPER

90417-360-000

Unavailable

22

WASHER B, THRUST (14MM)

90428-958-000

$4.45

23

CIRCLIP (OUTER) (14MM)

94510-14000

Unavailable

24

BOLT, HEX. (6X16)

92101-06016-0A

$1.47

25

ROLLER (4X8)

96220-40080

Unavailable
