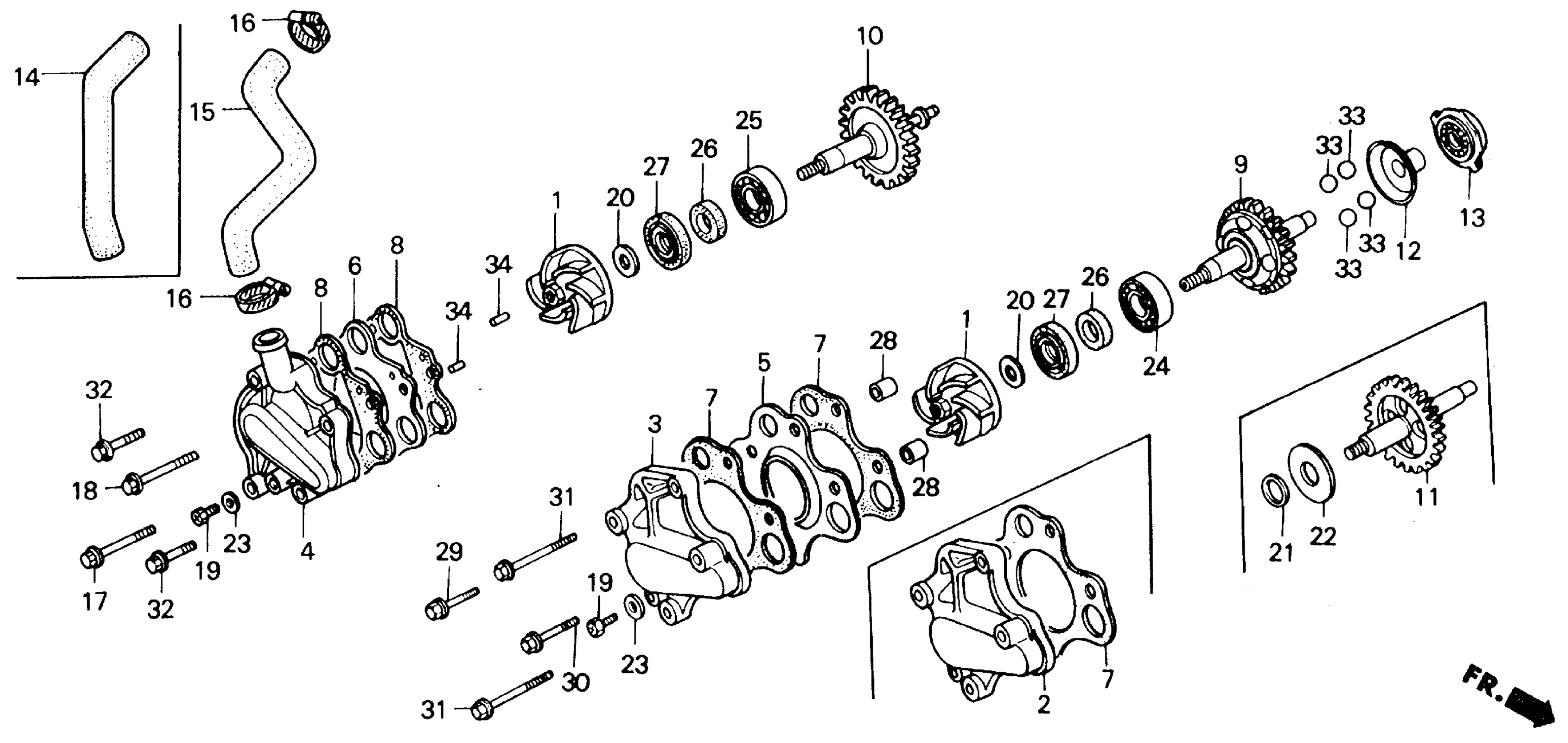

Honda CR125RA (86) MOTORCYCLE, JPN, VIN# JH2JE010-GC700018 TO JH2JE010-GC708780 WATER PUMP Diagram

#

Description
Price

1

IMPELLER, WATER PUMP

19215-KA3-740

$63.20

3

COVER, WATER PUMP (NOT AVAILABLE)

19221-KA3-760

Unavailable

5

SEPARATOR, WATER PUMP (NOT AVAILABLE)

19222-KA3-760

Unavailable

7

GASKET, WATER PUMP COVER

19229-KA3-307

Unavailable

7

GASKET, WATER PUMP COVER This part replaces 19229-KA3-740.

19229-KA3-307

Unavailable

9

SHAFT, WATER PUMP

19240-KS6-000

Unavailable

12

PLATE, GOVERNOR (NOT AVAILABLE)

19251-KS6-000

Unavailable

13

RELEASE (NOT AVAILABLE)

19260-KA3-740

Unavailable

19

BOLT, OIL CHECK

90037-360-000

$3.26

20

WASHER, SEALING (7MM)

90447-KE1-000

$2.66

23

GASKET, FR. FORK DRAIN VALVE

90543-273-000

$2.46

24

BEARING, RADIAL BALL (12X28X7) (TOYO)

91001-KA4-003

$17.08

24

BEARING, RADIAL BALL (12X28X7) (NTN) This part replaces 91001-KA4-004.

91001-KA4-003

$17.08

26

OIL SEAL (12X22X5) This part replaces 91201-148-003.

91201-965-000

$4.06

26

OIL SEAL (12X22X5)

91201-965-000

$4.06

27

SEAL, WATER PUMP (NOK)

91211-KA3-761

$6.69

28

PIN, DOWEL (8X10) This part replaces 90701-679-000.

94301-08100

$2.25

28

PIN A, DOWEL (8X10)

94301-08100

$2.25

29

BOLT, FLANGE (6X35) This part replaces 96000-06035-07.

96001-06035-07

$2.06

29

BOLT, FLANGE (6X35)

96001-06035-07

$2.06

30

BOLT, FLANGE (6X40) This part replaces 96000-06040-07.

96001-06040-07

$1.49

30

BOLT, FLANGE (6X40)

96001-06040-07

$1.49

31

BOLT, FLANGE (6X75) This part replaces 90052-KA4-770.

96001-06075-07

$1.97

31

BOLT, FLANGE (6X75)

96001-06075-07

$1.97

33

BALL, STEEL (#13) (13/32)

96211-13000

$1.49
