- CR125RA (86) MOTORCYCLE, JPN, VIN# JH2JE010-GC700018 TO JH2JE010-GC708780
SHOCK ABSORBER 85-86

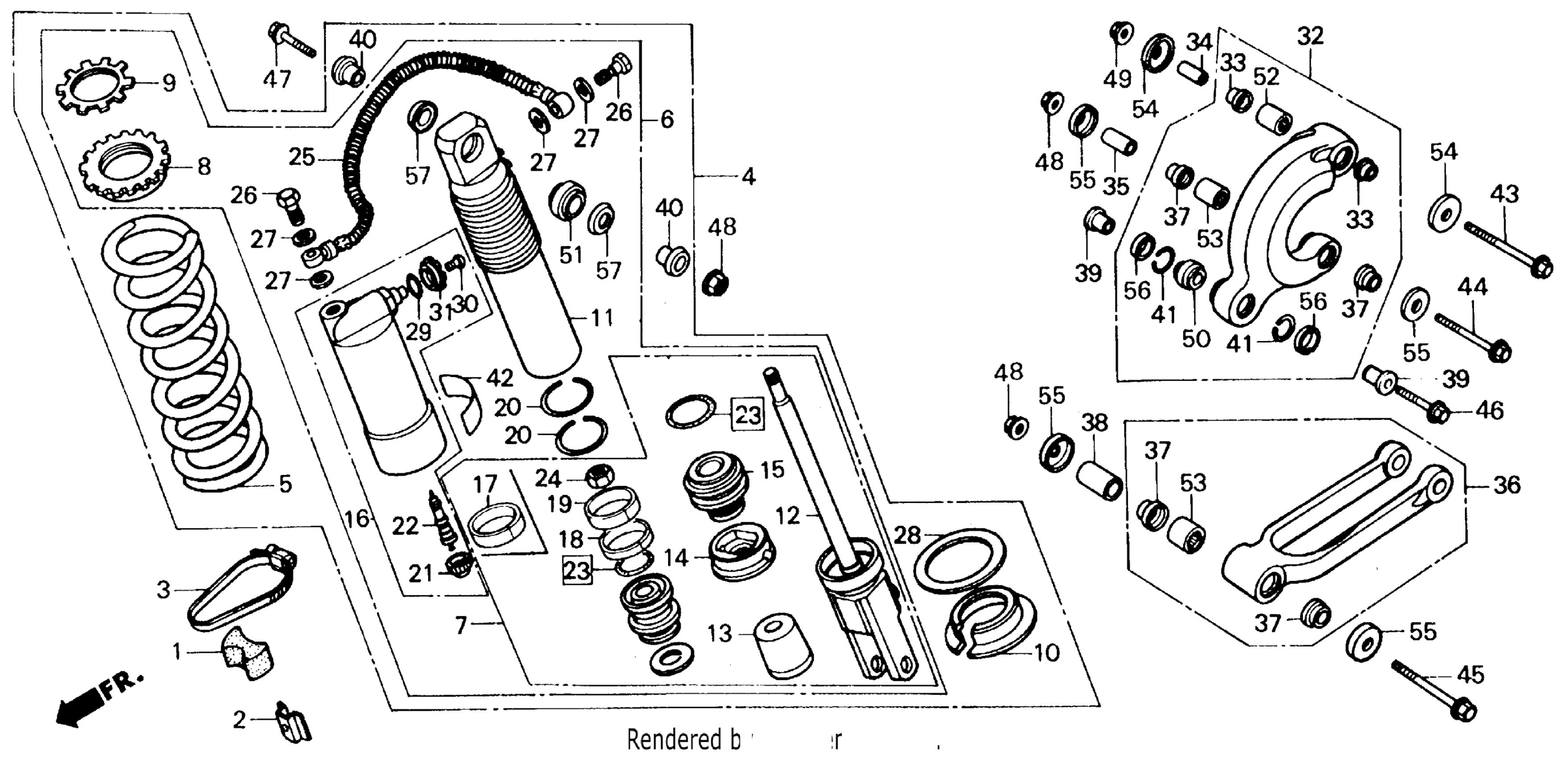

Honda CR125RA (86) MOTORCYCLE, JPN, VIN# JH2JE010-GC700018 TO JH2JE010-GC708780 SHOCK ABSORBER 85-86 Diagram
#
1
RUBBER, SUB-TANK MOUNTING (NOT AVAILABLE)
50250-KA3-830
Unavailable
2
RUBBER, SUB-TANK
50251-KS7-000
Unavailable
3
BAND, SUB-TANK (NOT AVAILABLE)
50252-KA3-830
Unavailable
4
SHOCK ABSORBER ASSY., RR. (KAYABA)
52400-KS6-671
Unavailable
5
SPRING, RR. SHOCK ABSORBER (43.15N/MM,4.4KGF/MM) (KAYABA)
52401-KS6-004
Unavailable
5
SPRING, RR. SHOCK ABSORBER (39.23N/MM,4.0KGF/MM) (KAYABA) | (Optional).
52402-KS6-305
Unavailable
5
SPRING, RR. SHOCK ABSORBER (47.07N/MM,4.8KGF/MM) (KAYABA) | (Optional).
52403-KS6-305
Unavailable
6
DAMPER, RR. (KAYABA)
52410-KS6-671
Unavailable
7
ROD, PISTON (KAYABA)
52421-KS6-004
Unavailable
8
SEAT, SPRING (UPPER) (KAYABA)
52422-KS6-004
Unavailable
9
NUT, ADJUSTER (KAYABA)
52423-KS6-004
Unavailable
10
SEAT, SPRING (LOWER) This part replaces 52424-KA3-831.
52424-KS6-701
Unavailable
10
SEAT, SPRING (LOWER) (KAYABA)
52424-KS6-701
Unavailable
10
SEAT, SPRING (LOWER) This part replaces 52424-KT1-671.
52424-KS6-701
Unavailable
11
CASE, RR. SHOCK ABSORBER (NOT AVAILABLE)
52425-KS6-004
Unavailable
12
ROD (KAYABA)
52426-KS6-004
Unavailable
13
RUBBER, BUMPER (NOT AVAILABLE)
52427-KA3-731
Unavailable
14
CAP, CASE
52428-KA3-731
Unavailable
16
TANK ASSY., SUB (KAYABA)
52430-KS6-004
Unavailable
18
RING A, PISTON (KAYABA)
52431-KS6-014
Unavailable
19
RING B, PISTON (KAYABA)
52433-KS6-004
Unavailable
20
RING, SNAP (KAYABA)
52435-KS6-004
Unavailable
21
CAP, AIR VALVE
52436-KA3-731
Unavailable
22
CORE, VALVE
52437-KA3-731
Unavailable
23
O-RING SET (KAYABA)
52437-KA3-832
Unavailable
25
HOSE, JOINT (KAYABA)
52440-KS6-004
Unavailable
26
BOLT, OIL
52441-KA3-731
Unavailable
28
WASHER, SPRING SEAT (KAYABA)
52445-KA3-831
Unavailable
29
O-RING (2.4X10.8)
52447-KA3-731
Unavailable
30
SCREW, PAN (3X8)
52448-KS6-004
Unavailable
31
DIAL, ADJUSTING (NOT AVAILABLE) This part replaces 52449-KA3-831.
52449-KS6-701
Unavailable
32
ARM ASSY., SHOCK ABSORBER (NOT AVAILABLE)
52460-KA3-831
Unavailable
33
BUSH, DAMPER ARM
52462-KA3-831
Unavailable
34
COLLAR, CUSHION ARM PIVOT
52463-KA3-830
Unavailable
35
COLLAR, CUSHION ARM
52464-KA3-830
Unavailable
36
ROD ASSY., RUBBER CONNECTING
52470-KS6-000
Unavailable
37
BUSH, SHOCK CONNECTING ROD THRUST
52472-KA3-831
Unavailable
38
COLLAR, CONNECTING ROD PIVOT
52473-KA3-830
Unavailable
39
COLLAR, SHOCK ABSORBER (UPPER)
52486-KA3-731
Unavailable
40
COLLAR, SHOCK ABSORBER (UPPER)
52486-KS6-004
Unavailable
41
RING, STOPPER
52487-KA3-731
Unavailable
42
LABEL, RR. DAMPER WARNING (NOT AVAILABLE) This part replaces 87516-KA3-741.
87516-KT1-901
Unavailable
42
LABEL, RR. DAMPER WARNING (NOT AVAILABLE) This part replaces 87516-KK0-771.
87516-KT1-901
Unavailable
42
LABEL, RR. DAMPER WARNING (NOT AVAILABLE) This part replaces 87516-KT1-771.
87516-KT1-901
Unavailable
42
LABEL, RR. DAMPER WARNING
87516-KT1-901
Unavailable
43
BOLT, FLANGE (12X105) This part replaces 90128-KA3-831.
90128-KA4-003
Unavailable
43
BOLT, FLANGE (12X105)
90128-KA4-003
Unavailable
45
BOLT, FLANGE (10X83)
90130-KS6-000
Unavailable
46
BOLT, FLANGE (10X48)
90153-KA3-730
Unavailable
47
BOLT, FLANGE (10X52)
90154-KA3-830
Unavailable
51
BEARING, SPHERICAL (14MM)
91077-KA3-831
Unavailable
52
BEARING, NEEDLE (19.1X26.1X27) (TOYO)
91078-KA3-831
Unavailable
55
SEAL, RUBBER CONNECTING ROD PIVOT
91262-KA3-831
Unavailable
56
DUST SEAL, RR. SHOCK (UPPER)
91351-KA3-731
Unavailable
