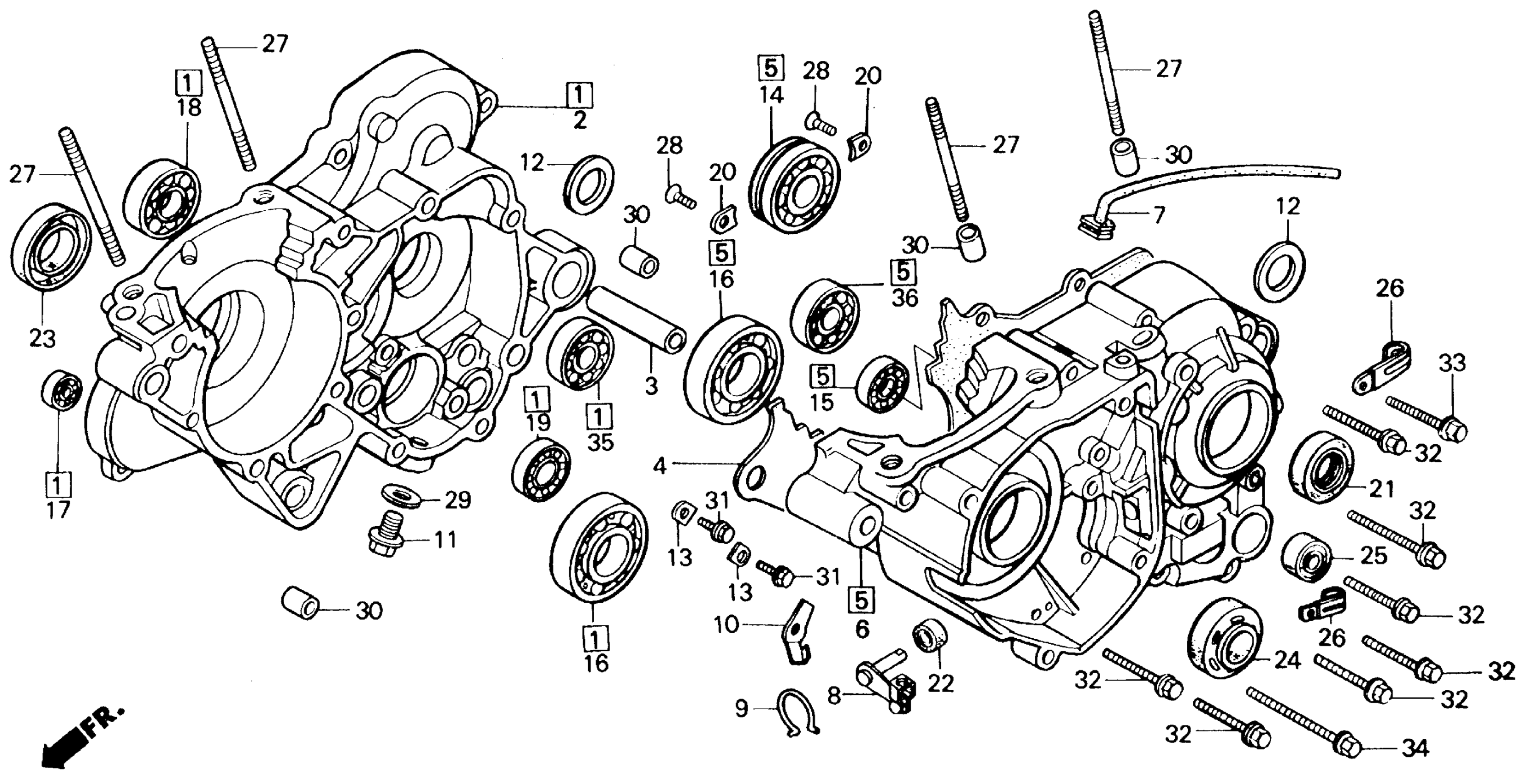

Honda CR125RA (86) MOTORCYCLE, JPN, VIN# JH2JE010-GC700018 TO JH2JE010-GC708780 CRANKCASE 84-86 Diagram

#

Description
Price

1

CRANKCASE ASSY., R. (NOT AVAILABLE)

111A0-KS6-000

Unavailable

4

GASKET, CRANKCASE

11191-KA3-308

Unavailable

4

GASKET, CRANKCASE This part replaces 11191-KA3-760.

11191-KA3-308

Unavailable

5

CRANKCASE ASSY., L. (NOT AVAILABLE)

112A0-KS6-000

Unavailable

7

TUBE, BREATHER

11211-GC4-701

$9.35

8

LIFTER, CLUTCH (NOT AVAILABLE)

22810-KS6-000

Unavailable

9

SPRING, CLUTCH LEVER (NOT AVAILABLE)

22815-KA3-760

Unavailable

10

STOPPER, CLUTCH LIFTER (NOT AVAILABLE)

22821-KS6-000

Unavailable

11

BOLT, SPECIAL (12MM)

90015-KA3-711

$6.51

13

PLATE, BEARING HOLDER

90441-KA4-700

$3.35

14

BEARING, BALL (6204)

91001-KA3-711

$30.00

15

BEARING, SHELL (33X38X8) (TOYO)

91022-KA4-740

$17.87

16

BEARING, RADIAL BALL (63/22) This part replaces 91002-KE1-014.

91002-KY4-901

$24.38

16

BEARING, RADIAL BALL (63/22)

91002-KY4-901

$24.38

16

BEARING, RADIAL BALL (63/22) This part replaces 91002-466-008.

91002-KY4-901

$24.38

17

BEARING, RADIAL BALL (7X19X6) (TOYO)

91002-KA4-003

$21.67

17

BEARING, RADIAL BALL (7X19X6) (TOYO) This part replaces 91002-KA4-004.

91002-KA4-003

$21.67

17

BEARING, RADIAL BALL (7X19X6) (TOYO) This part replaces 91002-KA4-005.

91002-KA4-003

$21.67

18

BEARING, RADIAL BALL (6004)

96100-60040-00

$15.58

19

BEARING, RADIAL BALL (25X42X9) (TOYO)

91004-GC4-731

$27.55

19

BEARING, RADIAL BALL (25X42X9) (TOYO) This part replaces 91004-430-003.

91004-GC4-731

$27.55

19

BEARING, RADIAL BALL (25X42X9) (TOYO) This part replaces 91004-430-004.

91004-GC4-731

$27.55

20

PLATE, COUNTERSHAFT BEARING

91012-KA3-710

$4.87

21

OIL SEAL (26X37X7) (ARAI)

91201-KS6-004

$11.37

21

OIL SEAL (26X37X7) (ARAI) This part replaces 91201-KS6-003.

91201-KS6-004

$11.37

22

OIL SEAL (10X17X4) This part replaces 91201-VB3-802.

91206-VA3-J02

$2.10

22

OIL SEAL (10X17X4) This part replaces 91202-KA3-711.

91206-VA3-J02

$2.10

22

OIL SEAL (10X17X4) This part replaces 91202-KA3-712.

91206-VA3-J02

$2.10

23

OIL SEAL (30X45X8) (ARAI) This part replaces 91203-KS6-003.

91203-KS6-004

$15.27

23

OIL SEAL (30X45X8) (ARAI)

91203-KS6-004

$15.27

24

OIL SEAL (20X32X7) (NOK) This part replaces 91205-GC4-711.

91205-166-004

$17.38

24

OIL SEAL (20X32X7) (NOK)

91205-166-004

$17.38

25

OIL SEAL (14X22.7X5) This part replaces 91206-KA3-711.

91206-KA3-712

Unavailable

25

OIL SEAL (14X22.7X5)

91206-KA3-712

Unavailable

26

CLIP, WIRE HARNESS

91406-657-671

$9.42

27

BOLT, STUD (8X35)

92900-08035-3E

$2.25

28

SCREW, FLAT (6X12)

93600-06012-0A

$1.49

29

WASHER, DRAIN PLUG (12MM)

94109-12000

$1.49

30

PIN A, DOWEL (10X14)

94301-10140

$2.28

31

BOLT, FLANGE (6X14) This part replaces 96000-06014-00.

96001-06014-00

$1.72

31

BOLT, FLANGE (6X14)

96001-06014-00

$1.72

32

BOLT, FLANGE (6X45) This part replaces 96000-06045-07.

96001-06045-07

$2.16

32

BOLT, FLANGE (6X45)

96001-06045-07

$2.16

33

BOLT, FLANGE (6X65) This part replaces 96000-06065-07.

96001-06065-07

$1.97

33

BOLT, FLANGE (6X65)

96001-06065-07

$1.97

34

BOLT, FLANGE (6X80) This part replaces 96000-06080-07.

96001-06080-07

$2.23

34

BOLT, FLANGE (6X80)

96001-06080-07

$2.23

35

BEARING, RADIAL BALL (6003)

96100-60030-00

$9.35

36

BEARING, RADIAL BALL (6003U)

96140-60030-00

$14.68
