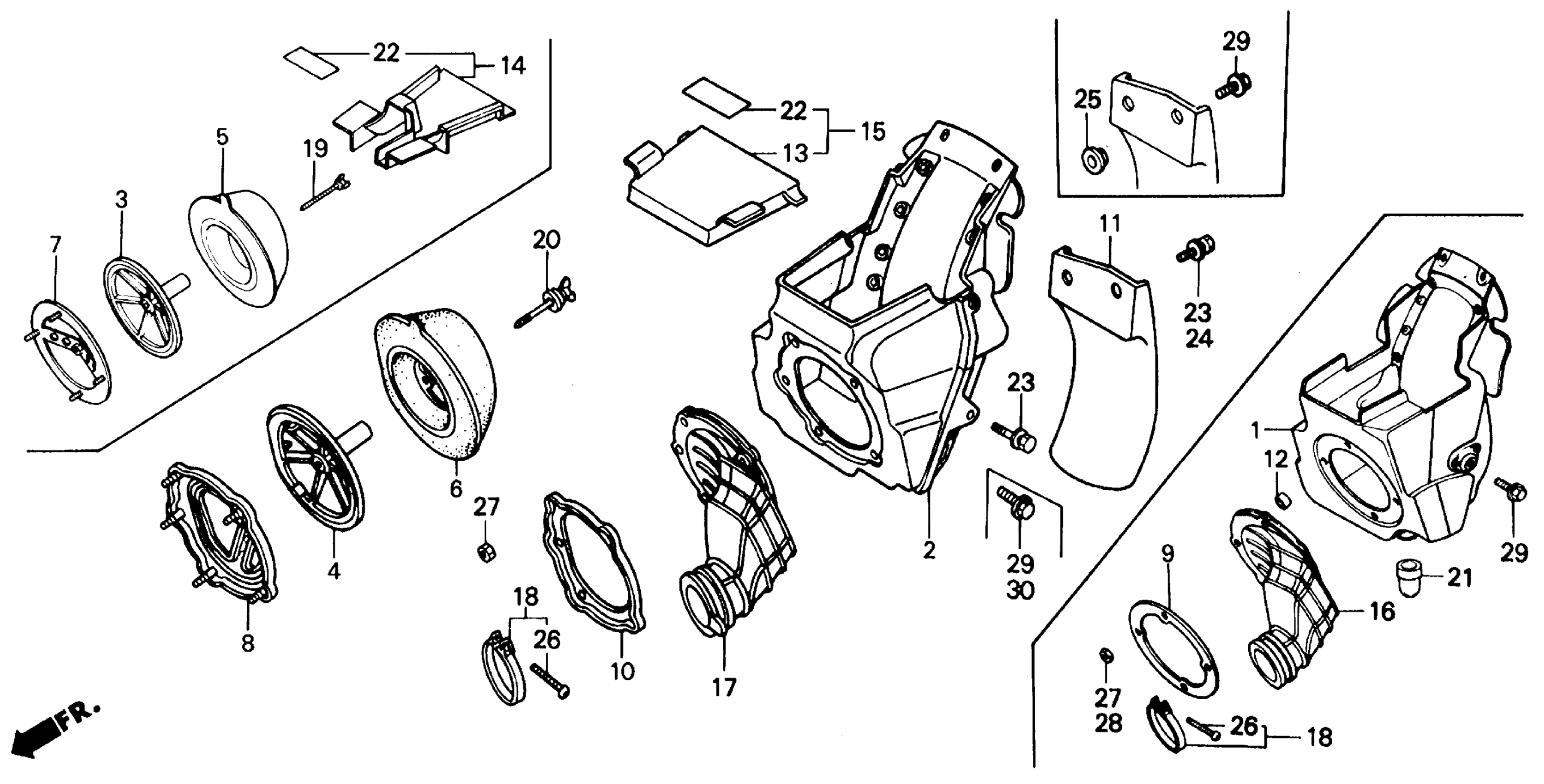

Honda CR125RA (86) MOTORCYCLE, JPN, VIN# JH2JE010-GC700018 TO JH2JE010-GC708780 AIR CLEANER 85-89 Diagram

#

Description
Price

1

HOUSING, AIR CLEANER

17210-KS6-000

Unavailable

3

BASE, ELEMENT This part replaces 17212-KS6-000.

17212-KS6-010

Unavailable

3

BASE, ELEMENT

17212-KS6-010

Unavailable

5

ELEMENT, AIR CLEANER

17213-KS6-000

Unavailable

7

STAY, AIR CLEANER ELEMENT

17215-KS6-000

Unavailable

9

PLATE, FR. AIR CLEANER HOUSING

17217-KS6-000

Unavailable

11

SPLASH GUARD A, AIR CLEANER HOUSING (NOT AVAILABLE)

17218-KA3-730

Unavailable

14

COVER SUB-ASSY., AIR CLEANER (NOT AVAILABLE)

17224-KS6-670

Unavailable

16

TUBE, AIR CLEANER CONNECTING (NOT AVAILABLE)

17253-KS6-300

Unavailable

18

BAND, AIR CLEANER CONNECTING TUBE (70) This part replaces 17256-MK4-000.

95018-70250

$14.92

18

BAND, AIR CLEANER CONNECTING TUBE (70) This part replaces 17257-KA3-830.

95018-70250

$14.92

18

BAND, AIR CLEANER CONNECTING TUBE (70) This part replaces 90652-GHB-780.

95018-70250

$14.92

18

BAND, AIR CLEANER CONNECTING TUBE (70)

95018-70250

$14.92

19

BOLT, ELEMENT SETTING This part replaces 17291-KS6-000.

17291-MAC-740

$11.31

19

BOLT, ELEMENT SETTING This part replaces 17291-KS6-700.

17291-MAC-740

$11.31

19

BOLT, ELEMENT SETTING

17291-MAC-740

$11.31

21

TUBE, DRAIN (NOT AVAILABLE)

17358-KA3-830

Unavailable

22

LABEL, AIR CLEANER COVER CAUTION (NOT AVAILABLE)

87517-KA4-770

Unavailable

25

WASHER, RR. COVER

90506-425-000

$2.89

26

SCREW, PAN (4X20)

93500-04020-0A

$1.49

27

NUT, HEX. (5MM)

94002-05000-0S

$1.49

29

BOLT, FLANGE (6X10) This part replaces 96000-06010-00.

96001-06010-00

$1.55

29

BOLT, FLANGE (6X10)

96001-06010-00

$1.55
