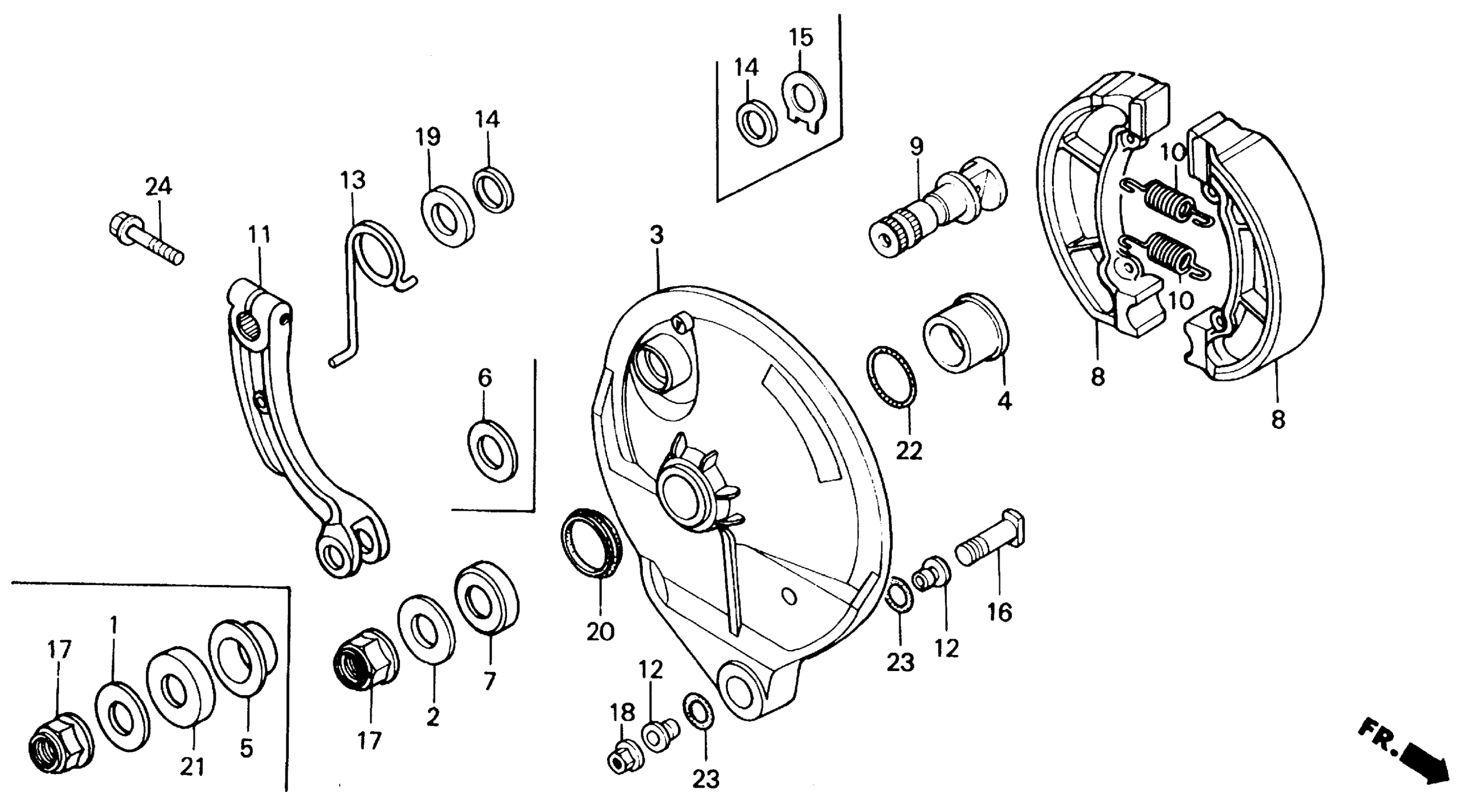

Honda CR125RA (85) MOTORCYCLE, JPN, VIN# JH2JE010-FC600001 TO JH2JE010-FC608237 REAR BRAKE PANEL Diagram

COLLAR, RR. AXLE

42306-KA3-830

Unavailable

PANEL, RR. BRAKE *NH105* (MAT BLACK) (NOT AVAILABLE)

43100-KA3-830ZA

Unavailable

COLLAR, RR. BRAKE PANEL (NOT AVAILABLE)

43111-KA3-830

Unavailable

WASHER, RR. BRAKE PANEL (NOT AVAILABLE)

43112-KA3-830

Unavailable

CAP, DUST SEAL (NOT AVAILABLE)

43114-KA3-831

Unavailable

SHOE, RR. BRAKE This part replaces 43120-KA3-832.

43120-KA3-305

Unavailable

CAM, RR. BRAKE (NOT AVAILABLE)

43141-KA3-710

Unavailable

SPRING, RR. BRAKE SHOE

43151-329-000

$2.75

ARM, RR. BRAKE (NOT AVAILABLE)

43410-KA3-710

Unavailable

COLLAR, RR. BRAKE STOPPER ARM

43433-KA3-710

Unavailable

SPRING, BRAKE RETURN

43435-KS6-000

Unavailable

SPRING, BRAKE RETURN This part replaces 43435-KA3-830.

43435-KS6-000

Unavailable

DUST SEAL, BRAKE CAM

45134-KB7-005

$2.97

SEAT, FR. BRAKE CAM (NOT AVAILABLE)

45142-KB7-000

Unavailable

BOLT, RR. BRAKE PANEL STOPPER

90127-KA3-731

Unavailable

NUT, FLANGE (18MM)

90305-MB4-003

$12.52

NUT, FLANGE (M8X1.25) (SELF-LOCK) This part replaces 90309-KF0-003.

90309-428-731

$3.35

NUT, FLANGE (8MM)

90309-428-731

$3.35

WASHER (14MM)

90509-169-000

Unavailable

WASHER (14MM) This part replaces 90525-MA0-000.

90509-169-000

Unavailable

DUST SEAL (32X36.8X8) (ARAI)

91253-KA3-731

Unavailable

DUST SEAL

91253-KA4-701

$12.86

DUST SEAL This part replaces 91253-KA4-702.

91253-KA4-701

$12.86

O-RING (25.5X1.9) (ARAI)

91307-PN0-004

$3.11

O-RING (25.5X1.9) (ARAI) This part replaces 91354-KA3-831.

91307-PN0-004

$3.11

O-RING (10.8X2.4) (ARAI) This part replaces 91355-SA5-801.

15142-PH3-003

$3.08

O-RING (10.8X2.4) (ARAI) This part replaces 91366-759-000.

15142-PH3-003

$3.08

BOLT, FLANGE (6X25)

96000-06025-00

$2.00

BOLT, FLANGE (6X25)

96001-06025-00

$2.00
