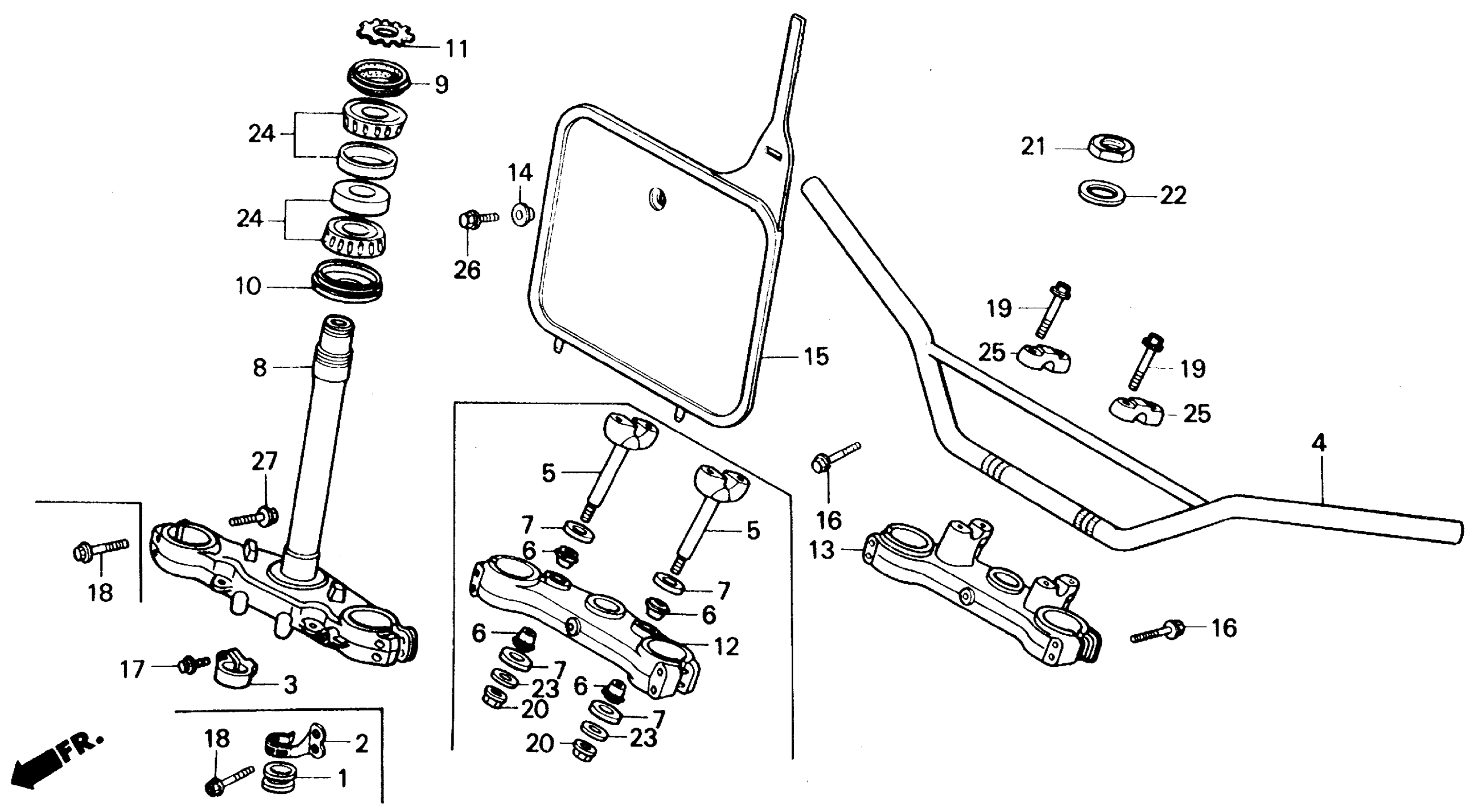

Honda CR125RA (85) MOTORCYCLE, JPN, VIN# JH2JE010-FC600001 TO JH2JE010-FC608237 HANDLEBAR + STEERING STEM Diagram

#

Description
Price

1

GUIDE, CABLE (INNER)

45466-KA4-000

$6.51

2

GUIDE, BRAKE HOSE (NOT AVAILABLE)

45468-KA3-830

Unavailable

4

HANDLEBAR (NOT AVAILABLE)

53100-KA3-830

Unavailable

5

HOLDER, HANDLE (LOWER)

53132-KA3-831

$30.57

5

HOLDER, HANDLE (LOWER) This part replaces 53132-KA3-830.

53132-KA3-831

$30.57

6

CUSHION, HANDLEBAR This part replaces 53133-KA3-830.

53133-KA3-832

$4.57

6

CUSHION, HANDLEBAR This part replaces 53133-KA3-831.

53133-KA3-832

$4.57

6

RUBBER, HANDLEBAR

53133-KA3-832

$4.57

7

CAP, HANDLEBAR

53135-KA3-730

Unavailable

8

STEM, STEERING (NOT AVAILABLE) This part replaces 53200-KA4-730.

53200-KA4-731

Unavailable

9

DUST SEAL, STEERING HEAD (ARAI) This part replaces 53214-KA3-731.

53214-KA3-732

$6.19

9

DUST SEAL, STEERING HEAD (ARAI)

53214-KA3-732

$6.19

10

DUST SEAL, STEERING HEAD (ARAI)

53214-KA4-701

$6.61

11

THREAD, STEERING HEAD TOP

53229-KA3-710

Unavailable

12

BRIDGE, FORK TOP (NOT AVAILABLE)

53230-KA3-830

Unavailable

14

COLLAR, FR. FENDER SETTING

61101-441-000

$4.13

15

PLATE, FR. NUMBER (TYPE3) (NOT AVAILABLE) This part replaces 61136-KA3-830ZC.

61136-KS6-000ZC

Unavailable

16

BOLT, FLANGE (8X45)

90103-KF0-000

$3.81

18

BOLT, FLANGE (8X40)

90107-KF0-000

$4.48

19

BOLT, FLANGE (8X35)

96300-08035-00

$1.95

20

NUT, U (10MM)

90304-GE8-003

$3.67

21

NUT, STEERING STEM

90304-KA3-710

$15.77

22

WASHER, STEERING STEM | Use up to Frame SN FC601444 This part replaces 90503-KK0-000.

90503-425-000

$4.21

22

WASHER, STEERING STEM | Use up to Frame SN FC601444

90503-425-000

$4.21

22

WASHER, STEERING STEM | Use up to Frame SN FC601444 This part replaces 90503-428-870.

90503-425-000

$4.21

22

WASHER, STEM (24.2MM) | Use from Frame SN FC601445

90503-KA3-830

Unavailable

23

WASHER, PLAIN (10MM)

90507-KA3-830

$3.74

24

BEARING, HEAD PIPE (UPPER) (NACHI) This part replaces 91015-425-831.

91015-425-832

$31.00

24

BEARING, HEAD PIPE (UPPER) (NACHI)

91015-425-832

$31.00

25

HOLDER B1, HANDLEBAR (UPPER)

95014-22100

$12.13

26

BOLT, FLANGE (6X12) This part replaces 96000-06012-00.

96001-06012-00

$1.80

26

BOLT, FLANGE (6X12)

96001-06012-00

$1.80
