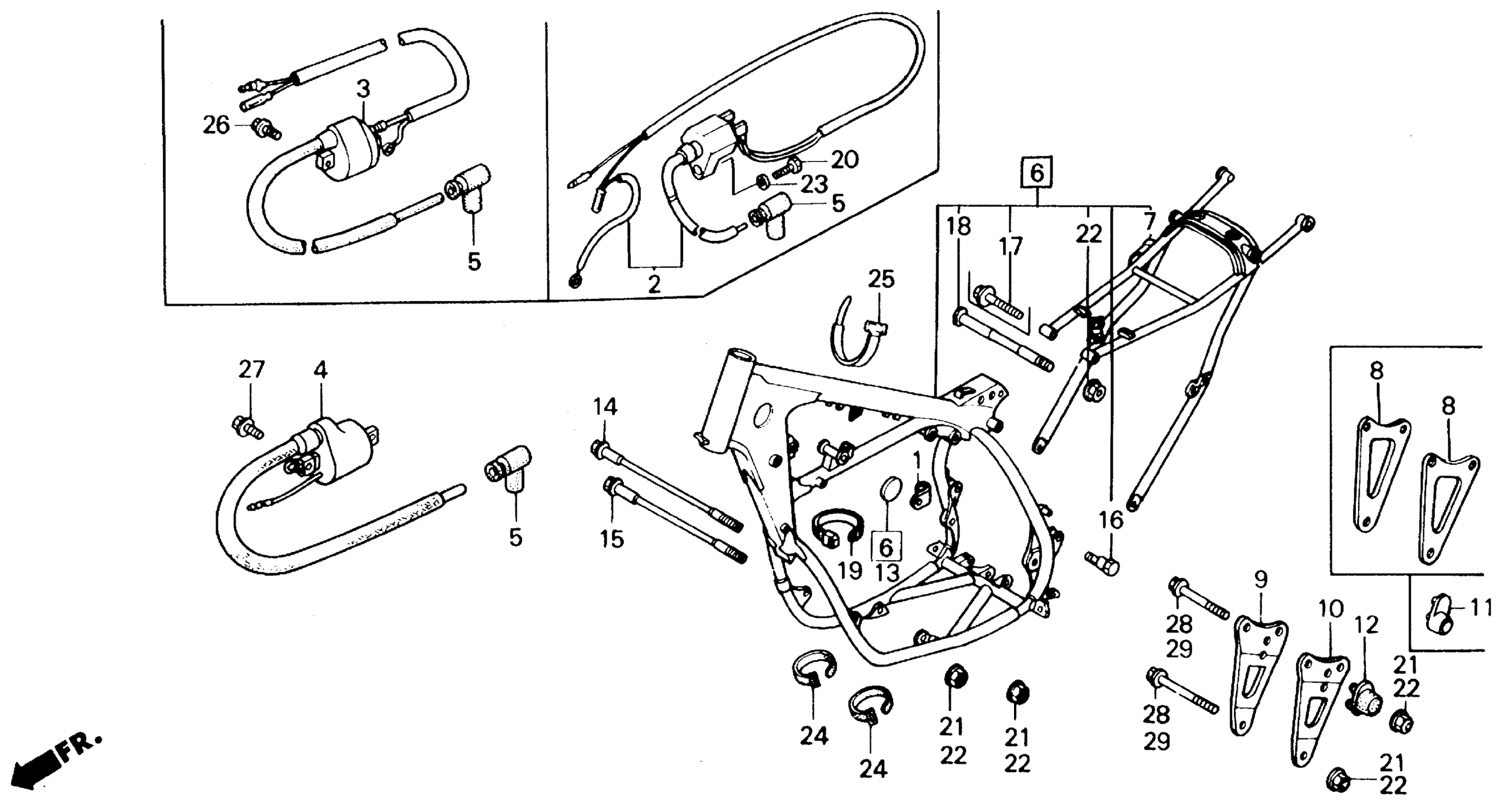

Honda CR125RA (85) MOTORCYCLE, JPN, VIN# JH2JE010-FC600001 TO JH2JE010-FC608237 FRAME 85-89 Diagram

COIL, IGNITION (TOYO)

30500-KA3-830

Unavailable

CAP ASSY., NOISE SUPPRESSOR This part replaces 30700-KA5-700.

30700-KA5-771

$31.04

CAP ASSY., NOISE SUPPRESSOR This part replaces 30700-KA5-770.

30700-KA5-771

$31.04

CAP ASSY., NOISE SUPPRESSOR

30700-KA5-771

$31.04

FRAME *R119* (FLASH RED)

50100-KA3-831ZA

Unavailable

FRAME, RR. *R119* (FLASH RED) (NOT AVAILABLE)

50140-KA3-830ZA

Unavailable

SEAL, HOLE SETTING (24MM)

87150-KA3-730

Unavailable

BOLT, FLANGE (8X94) (NOT AVAILABLE) This part replaces 90104-KA3-730.

90104-KA3-710

Unavailable

BOLT, FLANGE (8X124)

90104-KA3-830

Unavailable

BOLT, JOINT (8X20.6)

90108-KA3-830

Unavailable

BOLT, FLANGE (8X37)

90118-KA3-831

Unavailable

BOLT, HEX. (5X20) This part replaces 92000-05020-0A.

92101-05020-0A

$1.49

BOLT, HEX. (5X20)

92101-05020-0A

$1.49

BOLT, HEX. (5X20) This part replaces 92301-05020-0A.

92101-05020-0A

$1.49

NUT, FLANGE (8MM)

94050-08080

$1.49

WASHER, PLAIN (5MM)

94101-05000

$1.49

BAND B1, CABLE

32161-404-000

$2.23

BAND B1, CABLE This part replaces 95014-61100.

32161-404-000

$2.23

BAND A3, CABLE

95014-61300

$1.97
