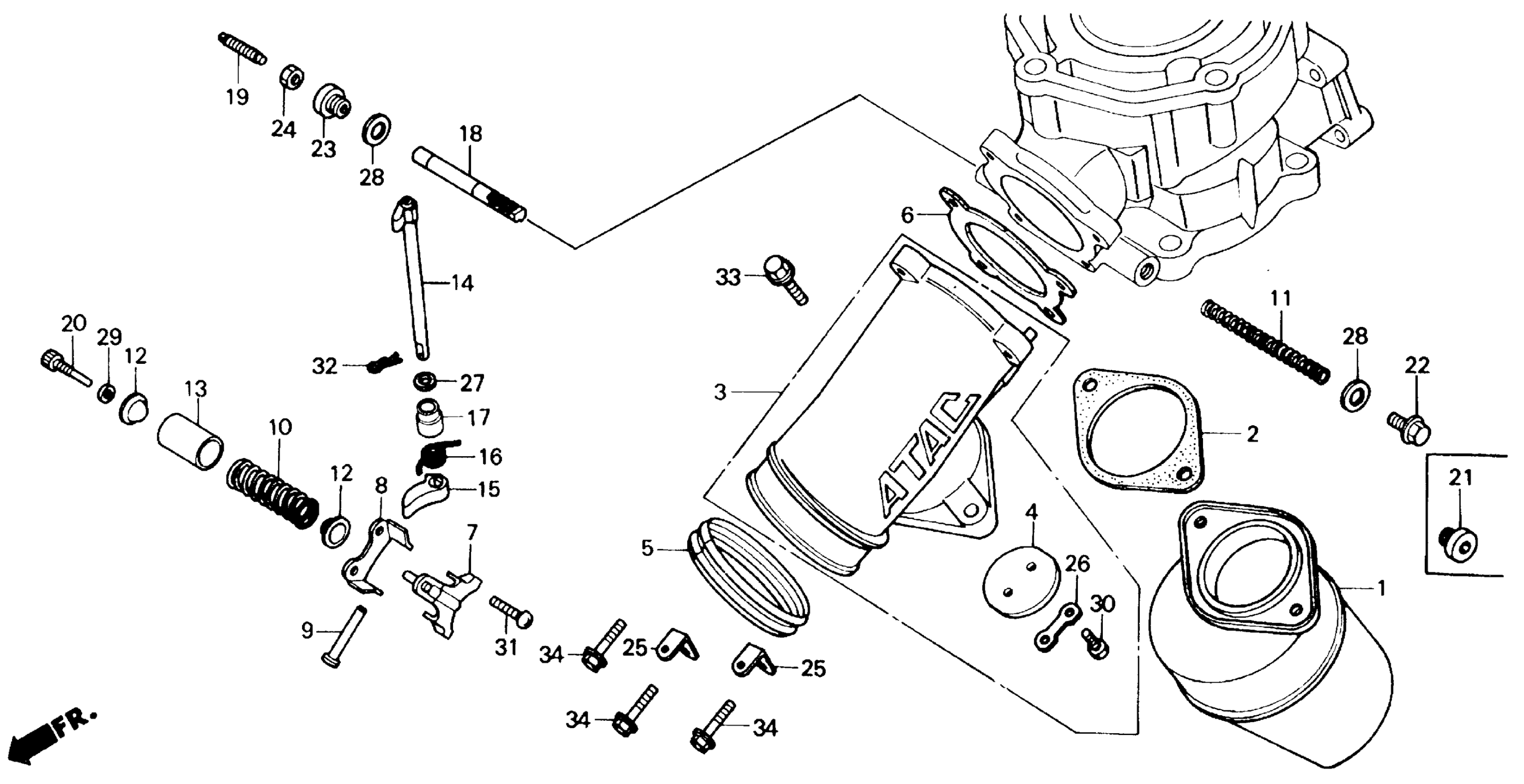

Honda CR125RA (85) MOTORCYCLE, JPN, VIN# JH2JE010-FC600001 TO JH2JE010-FC608237 EXHAUST MANIFOLD 84-86 Diagram

#

Description
Price

1

CHAMBER, SUB (NOT AVAILABLE)

18340-KA3-740

Unavailable

2

*061A1-KA3-S81 This part replaces 18345-KA3-740.

18345-KA3-306

Unavailable

3

MANIFOLD, EX.

18350-KA3-760

Unavailable

4

VALVE, BUTTERFLY (NOT AVAILABLE)

18353-KA3-760

Unavailable

5

SEAL, EX. MANIFOLD

18357-KA3-761

Unavailable

6

GASKET, EX. MANIFOLD

18359-KA3-306

Unavailable

6

GASKET, EX. MANIFOLD This part replaces 18359-KA3-740.

18359-KA3-306

Unavailable

7

ARM, ROCKER

19310-KA3-740

Unavailable

8

HOLDER, ROCKER ARM

19321-KA3-740

Unavailable

9

PIN, ROCKER ARM

19322-KA3-740

Unavailable

10

SPRING A, VALVE

19331-KA3-740

Unavailable

11

SPRING B, VALVE

19332-KA3-740

Unavailable

12

RETAINER, SPRING A (NOT AVAILABLE)

19343-KA3-740

Unavailable

13

GUIDE, SPRING (OUTER) (NOT AVAILABLE)

19345-KA3-760

Unavailable

14

SPINDLE, CAM (NOT AVAILABLE)

19351-KA3-760

Unavailable

15

CAM, FOLLOWER (NOT AVAILABLE)

19352-KA3-741

Unavailable

16

SPRING, CAM RETURN

19353-KA3-740

Unavailable

17

BUSH, PINION SHAFT (NOT AVAILABLE) | Use up to Engine SN 2608712 This part replaces 19355-KA3-740.

19355-KA3-741

Unavailable

17

BUSH, PINION SHAFT (NOT AVAILABLE) | Use from Engine SN 2608713

19355-KA3-741

Unavailable

18

RACK, BUTTERFLY (NOT AVAILABLE)

19361-KA3-740

Unavailable

19

SCREW, BUTTERFLY STOPPER

90011-KA3-761

Unavailable

20

BOLT, SPECIAL (6X23)

90012-KA3-740

Unavailable

21

BOLT, SEALING (8MM) This part replaces 90021-KA3-740.

90021-KS6-000

Unavailable

21

BOLT, SEALING (8MM)

90021-KS6-000

Unavailable

23

BOLT, SPECIAL (8X6.5) (NOT AVAILABLE) This part replaces 90022-KA3-740.

90022-GC4-730

Unavailable

24

NUT, LOCK (5MM)

90201-KA3-740

Unavailable

25

PLATE, SPRING HANGER (NOT AVAILABLE)

90442-KA3-760

Unavailable

26

WASHER, LOCK (4MM)

90445-KA3-740

Unavailable

27

WASHER (5.2X10) | Use up to Engine SN 2601683

90451-KA3-740

Unavailable

28

WASHER (8X13X0.5)

90541-KA3-740

Unavailable

29

GASKET, FR. FORK DRAIN VALVE

90543-273-000

$2.46

30

BOLT, SPECIAL (4X7.5)

90016-KA3-760

Unavailable

31

SCREW, PAN (5X16) (NOT AVAILABLE) This part replaces 93500-05016-00.

93500-05016

Unavailable

32

PIN, LOCK (5MM)

94251-05000

$1.49

33

BOLT, FLANGE (6X18) This part replaces 96000-06018-07.

96001-06018-07

$1.49

33

BOLT, FLANGE (6X18)

96001-06018-07

$1.49

34

BOLT, FLANGE (6X32) This part replaces 96000-06032-07.

96001-06032-07

$1.54

34

BOLT, FLANGE (6X32)

96001-06032-07

$1.54
