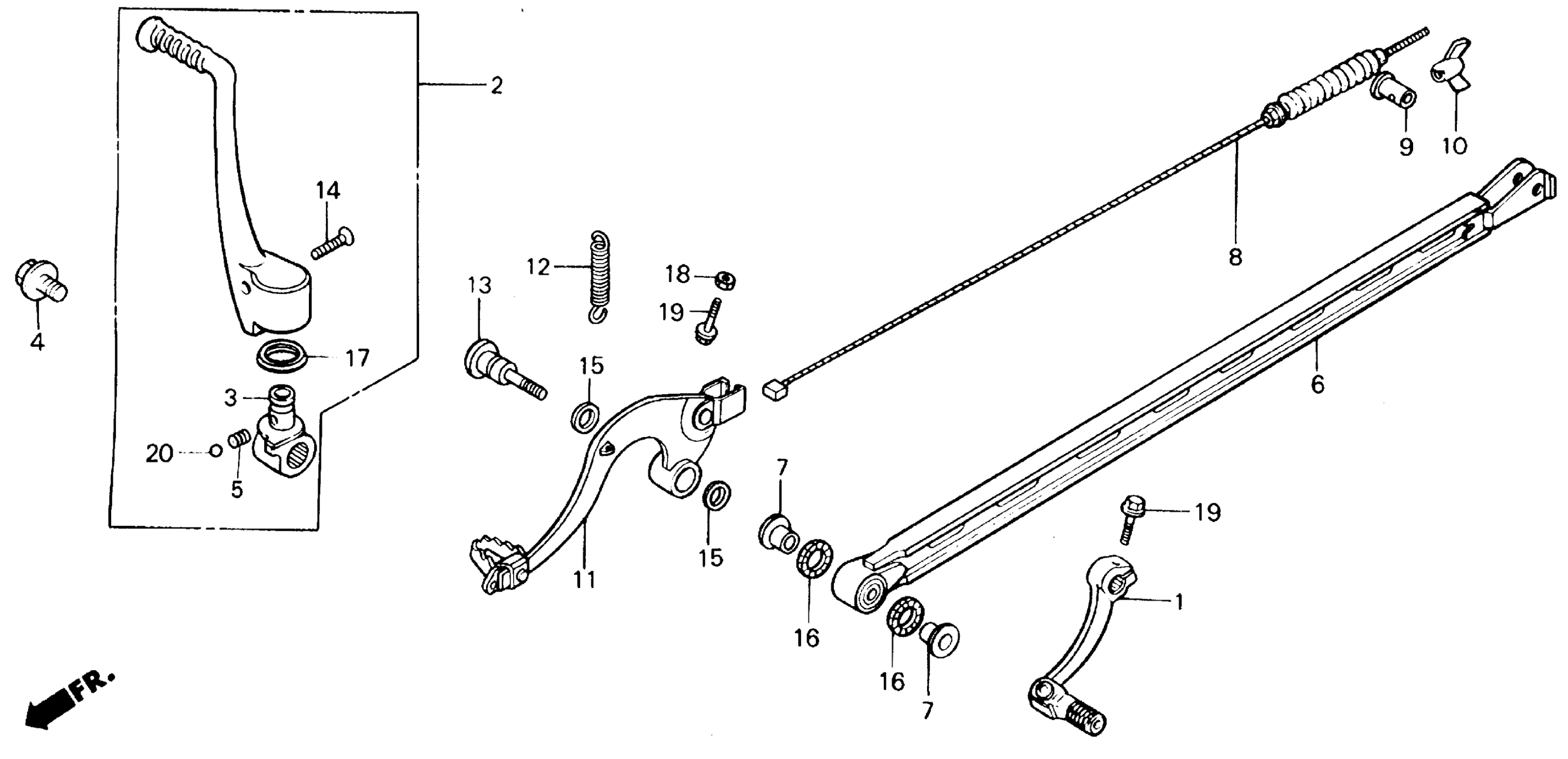

Honda CR125RA (84) MOTORCYCLE, JPN, VIN# JH2JE010-EC500001 TO JH2JE010-EC509553 PEDAL 84 Diagram

PEDAL, GEARSHIFT This part replaces 24700-KA3-730.

24700-KA3-830

Unavailable

PEDAL, GEARSHIFT

24700-KA3-830

Unavailable

ARM ASSY., KICK STARTER (NOT AVAILABLE) | Use up to Frame SN EC503888 This part replaces 28300-KA3-730.

28300-KA3-731

Unavailable

ARM ASSY., KICK STARTER (NOT AVAILABLE) | Use from Frame SN EC503889

28300-KA3-731

Unavailable

JOINT, KICK STARTER ARM (NOT AVAILABLE)

28302-KA3-730

Unavailable

BOLT, KICK JOINT

28306-KAE-000

$11.89

BOLT, KICK JOINT This part replaces 28306-KA3-730.

28306-KAE-000

$11.89

SPRING, KICK STARTER STOPPER

28333-124-000

$2.26

ARM, RR. BRAKE STOPPER (NOT AVAILABLE)

43431-KA3-730

Unavailable

COLLAR, RR. BRAKE STOPPER ARM

43432-KA3-710

Unavailable

CABLE, RR. BRAKE This part replaces 43451-KA3-730.

43451-KA4-730

Unavailable

CABLE, RR. BRAKE

43451-KA4-730

Unavailable

JOINT, BRAKE ARM

43454-KA4-700

Unavailable

NUT, BRAKE ADJUSTING This part replaces 43459-KA3-710.

43459-434-000

$15.27

NUT, BRAKE ADJUST

43459-434-000

$15.27

PEDAL, BRAKE (NOT AVAILABLE)

46500-KA3-730

Unavailable

SPRING, BRAKE PEDAL

46511-KA4-710

Unavailable

SHAFT, BRAKE PIVOT (NOT AVAILABLE)

46513-KA3-731

Unavailable

BOLT, KICK ARM This part replaces 90101-KA4-700.

90101-MAC-680

$5.92

BOLT, KICK ARM

90101-MAC-680

$5.92

DUST SEAL (15X20X2.5)

91251-444-000

$4.33

DUST SEAL (13X18X3) This part replaces 91272-KA3-711.

91272-KA3-712

Unavailable

DUST SEAL (13X18X3)

91272-KA3-712

Unavailable

DUST SEAL (19X25X4.1) (ARAI) | Use up to Frame SN EC504428 This part replaces 91303-KA3-731.

91303-KA3-732

$5.54

DUST, SEAL (19X25X4.1) (ARAI)

91303-KA3-732

$5.54

NUT, HEX. (6MM)

94002-06000-0S

$1.49

BOLT, FLANGE (6X20) This part replaces 96000-06020-00.

96001-06020-00

$1.49

BOLT, FLANGE (6X20)

96001-06020-00

$1.49

BALL, STEEL (#8) (1/4)

96211-08000

$1.49
