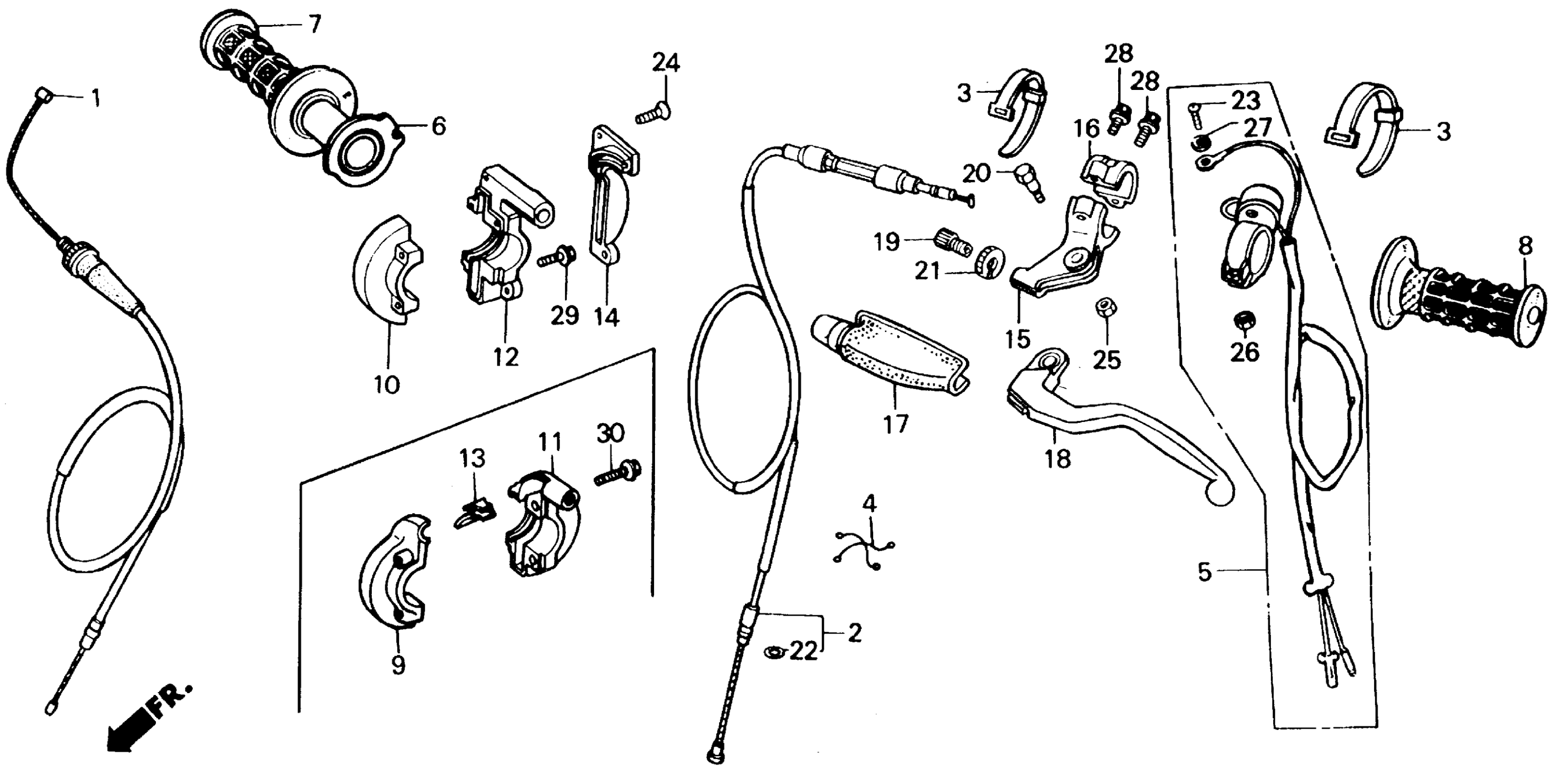

Honda CR125RA (84) MOTORCYCLE, JPN, VIN# JH2JE010-EC500001 TO JH2JE010-EC509553 HANDLE SWITCH + CABLES Diagram

#

Description
Price

1

CABLE, THROTTLE (NOT AVAILABLE)

17910-KA3-730

Unavailable

2

CABLE, CLUTCH

22870-KA3-730

Unavailable

3

BAND B1, CABLE

32161-404-000

$2.16

4

CLAMP, CABLE (NOT AVAILABLE)

32162-444-003

Unavailable

5

SWITCH ASSY., STOP This part replaces 35130-467-000.

35130-KZ3-860

$40.66

5

SWITCH ASSY., STOP This part replaces 35130-KA4-000.

35130-KZ3-860

$40.66

5

SWITCH ASSY., STOP

35130-KZ3-860

$40.66

5

SWITCH ASSY., STOP This part replaces 35130-444-000.

35130-KZ3-860

$40.66

6

PIPE, THROTTLE GRIP

53141-KA3-730

Unavailable

7

GRIP, R. HANDLE This part replaces 53165-430-000.

53165-GFW-305

$10.87

8

GRIP, L. HANDLEBAR This part replaces 53166-430-000.

53166-459-910

$8.69

9

HOUSING A, GRIP

53167-KA3-730

Unavailable

11

HOUSING B, GRIP

53168-KA3-730

Unavailable

13

SLIDER, THROTTLE CABLE

53169-KA3-730

Unavailable

15

BRACKET, L. HANDLEBAR

53172-KA3-730

$35.60

16

HOLDER, L. LEVER BRACKET

53174-KA3-730

$21.61

17

COVER, L. HANDLEBAR

53177-430-000

$10.10

18

CONTROL LEVER, L. HANDLEBAR This part replaces 53178-KA3-741.

53178-KA3-840

$27.37

18

CONTROL LEVER, L. HANDLEBAR

53178-KA3-840

$27.37

19

BOLT, CLUTCH CABLE ADJUSTING

53192-KA3-700

$12.91

20

BOLT, HANDLE LEVER PIVOT

90114-428-870

$3.87

21

NUT, FIXING This part replaces 90321-KA4-700.

90321-KF0-000

$8.99

21

NUT, FIXING

90321-KF0-000

$8.99

22

O-RING (5.8X1.9)

91357-KA4-004

$2.29

23

SCREW, PAN (4X12)

93500-04012-0A

$0.82

23

SCREW, PAN (4X12) This part replaces 93500-04012-1A.

93500-04012-0A

$0.82

25

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.31

25

NUT, HEX. (6MM)

94001-06200-0S

$1.31

26

NUT, HEX. (4MM)

94002-04000-0S

$0.96

27

WASHER, SPRING (4MM)

94111-04000

$0.99

28

BOLT, FLANGE (6X20) This part replaces 96000-06020-00.

96001-06020-00

$1.15

28

BOLT, FLANGE (6X20)

96001-06020-00

$1.15

30

BOLT, FLANGE (6X25)

96000-06025-00

$2.63

30

BOLT, FLANGE (6X25)

96001-06025-00

$2.63
