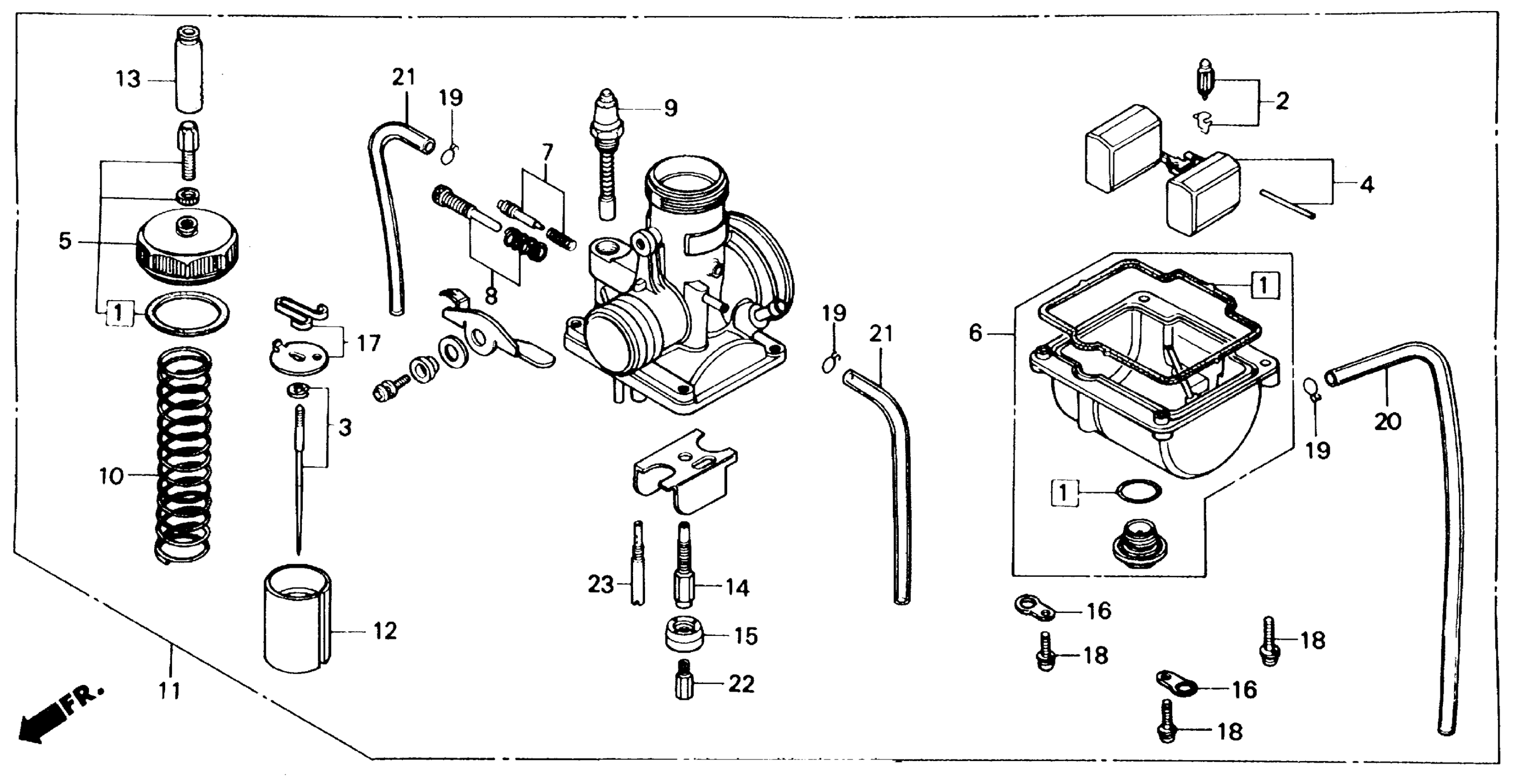

Honda CR125RA (84) MOTORCYCLE, JPN, VIN# JH2JE010-EC500001 TO JH2JE010-EC509553 CARBURETOR 84 Diagram

#

Description
Price

1

GASKET SET

16010-KA3-004

$48.37

2

VALVE SET, FLOAT

16011-KA3-741

$45.27

3

NEEDLE SET, JET (NOT AVAILABLE)

16012-KA3-741

Unavailable

4

FLOAT SET This part replaces 16013-KA3-741.

16013-HA2-671

$50.15

5

TOP SET (NOT AVAILABLE)

16014-KA3-701

Unavailable

6

CHAMBER SET, FLOAT This part replaces 16015-KA3-741.

16015-KA3-761

Unavailable

6

CHAMBER SET, FLOAT

16015-KA3-761

Unavailable

7

SCREW SET A This part replaces 16016-166-004.

16016-GB4-003

$23.02

8

SCREW SET B (NOT AVAILABLE)

16028-KA5-004

Unavailable

9

VALVE SET, STARTER This part replaces 16046-KAE-010.

16046-KAE-730

Unavailable

9

VALVE SET, STARTER This part replaces 16046-KAE-870.

16046-KAE-730

Unavailable

9

VALVE SET, STARTER This part replaces 16046-KA3-004.

16046-KAE-730

Unavailable

10

SPRING, COMPRESSION COIL (NOT AVAILABLE)

16050-KA3-701

Unavailable

11

CARBURETOR ASSY.

16100-KA3-741

Unavailable

12

VALVE, THROTTLE (#3.5) (NOT AVAILABLE)

16111-KA3-813

Unavailable

13

CAP, CABLE SEALING

16118-166-004

$8.08

14

NEEDLE, JET (NOT AVAILABLE) This part replaces 16164-KA5-004.

16164-HE0-670

Unavailable

15

HOLDER, JET

16168-KA5-004

Unavailable

16

BINDER

16179-428-671

Unavailable

17

PLATE SET (NOT AVAILABLE)

16212-KA3-701

Unavailable

18

SCREW-WASHER (4X16)

93892-04016-08

$1.49

19

CLIP, TUBE (B7)

95002-02070

$1.80

20

BULK HOSE, VINYL (3.5X6.5X8000) (3.5X6.5X300)

95003-05008-60M

$19.34

21

BULK HOSE, VINYL (4X7X8000) (4X7X390)

95003-07008-60M

$24.47

22

JET, MAIN (#142)

99101-357-1420

$8.55

23

JET, SLOW (#68)

99103-441-0680

Unavailable
