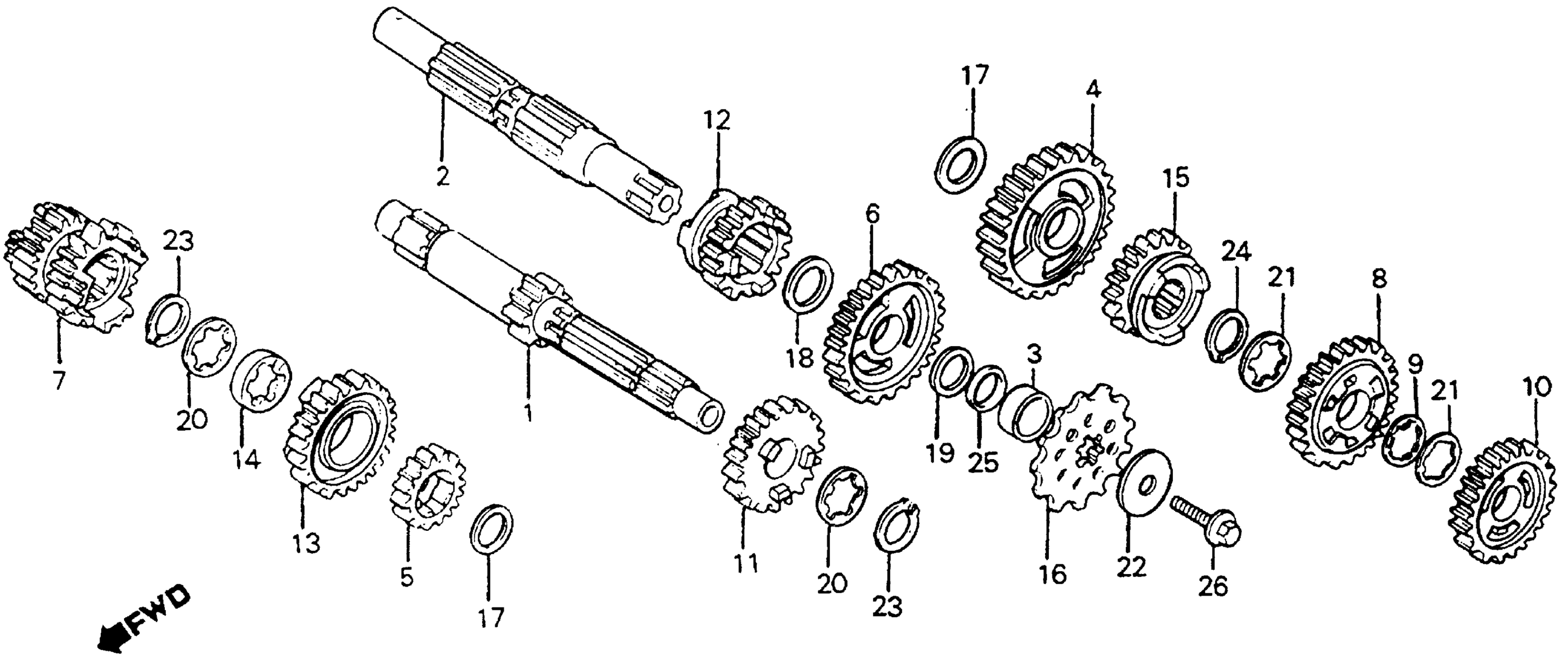

Honda CR125RA (83) MOTORCYCLE, JPN, VIN# JH2JE010-DC400014 TO JH2JE010-DC406712 TRANSMISSION 83 Diagram

#

Description
Price

1

MAINSHAFT, TRANSMISSION (12T) (NOT AVAILABLE)

23210-KA3-710

Unavailable

2

COUNTERSHAFT, TRANSMISSION (NOT AVAILABLE)

23221-KA3-710

Unavailable

3

COLLAR, COUNTERSHAFT (NOT AVAILABLE)

23225-KA3-710

Unavailable

4

GEAR, COUNTERSHAFT LOW (29T) (NOT AVAILABLE)

23410-KA3-710

Unavailable

5

GEAR, MAINSHAFT SECOND (15T)

23421-KA3-710

Unavailable

6

GEAR, COUNTERSHAFT SECOND (30T)

23431-KA3-710

Unavailable

7

GEAR, MAINSHAFT THIRD (18T/20T) This part replaces 23441-KA3-710.

23441-KA3-760

Unavailable

7

GEAR, MAINSHAFT THIRD (18T/20T)

23441-KA3-760

Unavailable

8

GEAR, COUNTERSHAFT THIRD (28T) (NOT AVAILABLE) This part replaces 23451-KA3-710.

23451-KA3-760

Unavailable

9

WASHER, LOCK

23456-KA3-000

$5.87

10

GEAR, COUNTERSHAFT FOURTH (26T) This part replaces 23461-KA3-710.

23461-KA3-760

Unavailable

10

GEAR, COUNTERSHAFT FOURTH (26T)

23461-KA3-760

Unavailable

11

GEAR, MAINSHAFT FIFTH (22T) This part replaces 23471-KA3-710.

23471-KA3-760

Unavailable

11

GEAR, MAINSHAFT FIFTH (22T)

23471-KA3-760

Unavailable

12

GEAR, COUNTERSHAFT FIFTH (25T) This part replaces 23481-KA3-710.

23481-KA3-760

Unavailable

12

GEAR, COUNTERSHAFT FIFTH (25T)

23481-KA3-760

Unavailable

13

GEAR, MAINSHAFT SIXTH (23T)

23491-KA3-710

Unavailable

14

COLLAR, MAINSHAFT SIXTH GEAR

23492-KA3-710

$30.90

15

GEAR, COUNTERSHAFT SIXTH (23T) This part replaces 23501-KA3-710.

23501-KA3-760

Unavailable

15

GEAR, COUNTERSHAFT SIXTH (23T)

23501-KA3-760

Unavailable

16

SPROCKET, DRIVE (13T) (NOT AVAILABLE)

23803-KA3-710

Unavailable

17

WASHER, THRUST (17.2MM)

90446-357-000

$3.60

18

WASHER, THRUST (22MM)

90452-357-000

$5.79

19

WASHER, THRUST (20X28X1.5)

90453-KA3-710

Unavailable

20

WASHER, SPLINE (20MM)

90461-444-000

$5.04

21

WASHER, SPLINE (22MM)

90464-444-000

$5.37

22

WASHER, SPRING (10X36) (NOT AVAILABLE) This part replaces 90501-KA3-711.

90501-KA3-712

Unavailable

22

WASHER, SPRING (10X36) (NOT AVAILABLE)

90501-KA3-712

Unavailable

23

SET-RING (20MM)

90601-360-000

$9.19

24

SET-RING (22MM)

90602-360-000

$9.66

25

O-RING (20MM)

91351-KA3-711

$4.06

26

BOLT, FLANGE (10X20) This part replaces 95700-10020-00.

95701-10020-00

$2.23

26

BOLT, FLANGE (10X20)

95701-10020-00

$2.23
