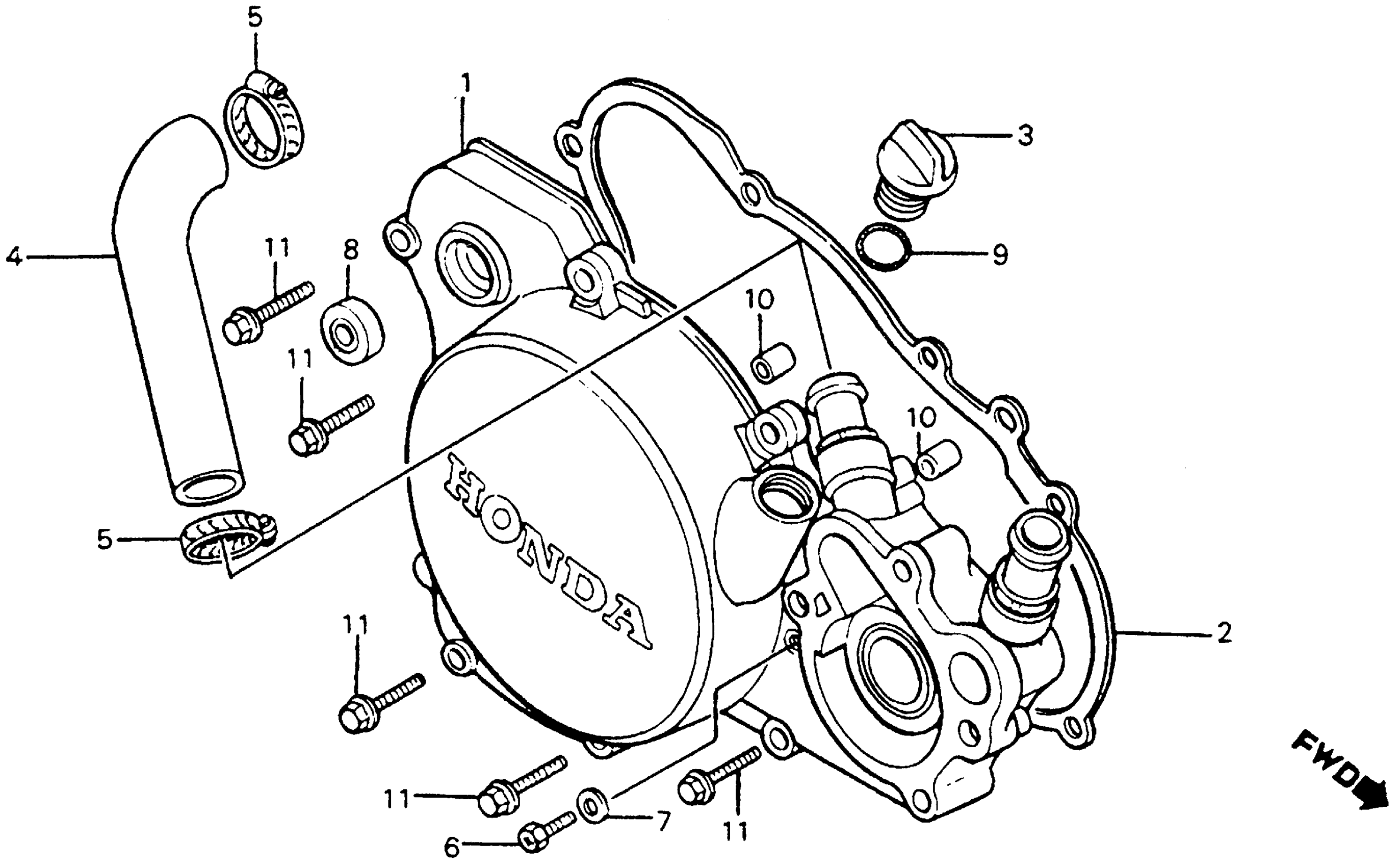

Honda CR125RA (83) MOTORCYCLE, JPN, VIN# JH2JE010-DC400014 TO JH2JE010-DC406712 RIGHT CRANKCASE COVER 83 Diagram

COVER, R. CRANKCASE (NOT AVAILABLE)

11340-KA3-710

Unavailable

GASKET, R. COVER

11394-KA3-309

Unavailable

GASKET, R. COVER This part replaces 11394-KA3-710.

11394-KA3-309

Unavailable

CAP, OIL FILLER

15611-KA3-710

$13.62

HOSE, WATER (NOT AVAILABLE)

19501-KA4-710

Unavailable

CLAMP, WATER HOSE

19506-KA4-000

$9.18

BOLT, OIL CHECK

90037-360-000

$3.26

GASKET, FR. FORK DRAIN VALVE

90543-273-000

$2.46

OIL SEAL (16.5X25X5) (NOK) This part replaces 91205-KA3-710.

91205-KA3-712

$6.16

OIL SEAL (16.5X25X5) (NOK) This part replaces 91205-KA3-711.

91205-KA3-712

$6.16

OIL SEAL (16.5X25X5) (NOK)

91205-KA3-712

$6.16

O-RING (11.9X2.2)

91370-461-000

$2.39

PIN, DOWEL (8X14)

94301-08140

$2.25

BOLT, FLANGE (6X32) This part replaces 96000-06032-00.

96001-06032-00

$1.49

BOLT, FLANGE (6X32)

96001-06032-00

$1.49
