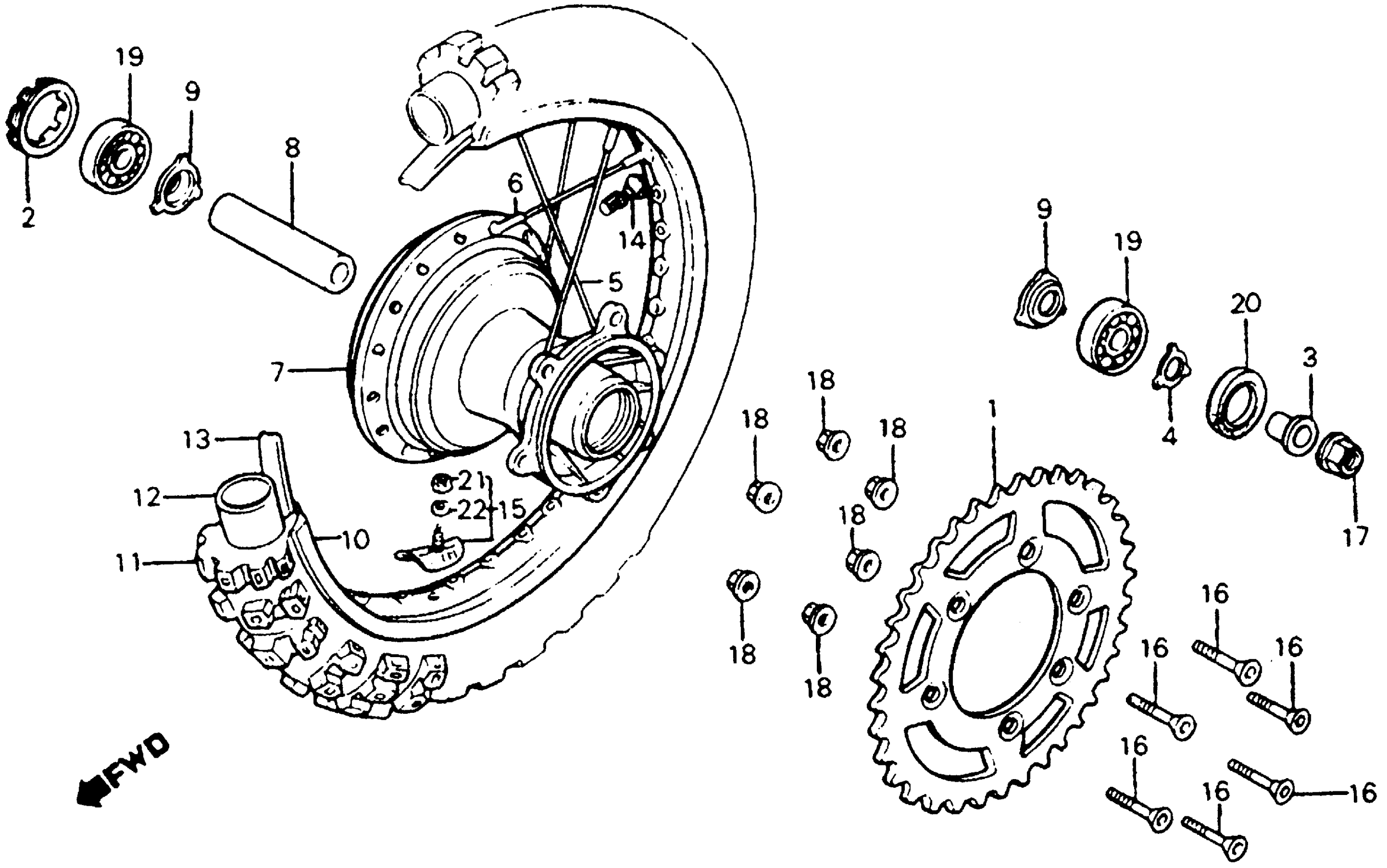

Honda CR125RA (83) MOTORCYCLE, JPN, VIN# JH2JE010-DC400014 TO JH2JE010-DC406712 REAR WHEEL 83 Diagram

#

Description
Price

1

SPROCKET, FINAL DRIVEN (51T) This part replaces 41201-KA3-710.

41201-MEY-000

$115.77

1

SPROCKET, FINAL DRIVEN (51T) This part replaces 41201-KS6-000.

41201-MEY-000

$115.77

1

SPROCKET, FINAL DRIVEN (51T) This part replaces 41201-KS6-700.

41201-MEY-000

$115.77

1

SPROCKET, FINAL DRIVEN (51T) This part replaces 41201-KS6-830.

41201-MEY-000

$115.77

1

SPROCKET, FINAL DRIVEN (51T) This part replaces 41201-KZ4-711.

41201-MEY-000

$115.77

1

SPROCKET, FINAL DRIVEN (49T) (NOT AVAILABLE) | (Optional). This part replaces 41202-KA3-710.

41202-KA3-730

Unavailable

1

SPROCKET, FINAL DRIVEN (49T) (NOT AVAILABLE) | (Optional).

41202-KA3-730

Unavailable

1

SPROCKET, FINAL DRIVEN (51T) This part replaces 41202-KZ3-B00.

41201-MEY-000

$115.77

1

SPROCKET, FINAL DRIVEN (51T) This part replaces 41202-KZ4-J20.

41201-MEY-000

$115.77

1

SPROCKET, FINAL DRIVEN (53T) (NOT AVAILABLE) | (Optional). This part replaces 41203-KA3-710.

41203-KA3-730

Unavailable

1

SPROCKET, FINAL DRIVEN (53T) (NOT AVAILABLE) | (Optional).

41203-KA3-730

Unavailable

1

SPROCKET, FINAL DRIVEN (51T) (STEEL) | (Optional).

41204-KA3-710

Unavailable

2

RETAINER, RR. WHEEL BEARING

41231-KA3-710

Unavailable

3

COLLAR, RR. WHEEL SIDE This part replaces 42311-KA3-710.

42311-KS6-700

Unavailable

3

COLLAR, RR. WHEEL SIDE

42311-KS6-700

Unavailable

4

WASHER, RR. WHEEL SIDE This part replaces 42312-KA3-710.

42312-KA3-730

Unavailable

4

WASHER, RR. WHEEL SIDE

42312-KA3-730

Unavailable

5

SPOKE SET A, RR. (NOT AVAILABLE)

426A0-KA3-710

Unavailable

6

SPOKE SET B, RR.

426B0-KA3-710

Unavailable

7

HUB, RR. WHEEL (NOT AVAILABLE)

42601-KA3-710

Unavailable

8

COLLAR, RR. WHEEL DISTANCE

42620-KA3-710

Unavailable

9

CAP, DISTANCE COLLAR This part replaces 42621-KA3-710.

42621-KA3-711

Unavailable

9

CAP, DISTANCE COLLAR

42621-KA3-711

Unavailable

10

RIM, RR. WHEEL

42701-KA3-711

Unavailable

11

TIRE, RR. (130/80-18) (BS) (NOT AVAILABLE)

42711-KA3-711

Unavailable

12

TUBE, TIRE This part replaces 08400-30000.

42712-KT1-673

$37.60

12

TUBE, TIRE This part replaces 42712-KA3-711.

42712-KT1-673

$37.60

12

TUBE, TIRE This part replaces 42712-KA5-681.

42712-KT1-673

$37.60

12

TUBE, TIRE This part replaces 42712-KS7-003.

42712-KT1-673

$37.60

12

TUBE, TIRE This part replaces 42712-KT1-671.

42712-KT1-673

$37.60

12

TUBE, TIRE This part replaces 42712-430-701.

42712-KT1-673

$37.60

13

FLAP, TIRE (1.40/1.60-18) (BS) This part replaces 42713-268-003.

42713-304-003

$6.69

14

CAP, VALVE

42714-KA3-710

$10.46

15

STOPPER, BEAD (1.85)

42715-KA2-680

$32.27

16

SCREW, FLAT (8X29)

90125-KA3-700

$6.19

17

NUT, FLANGE (18MM) This part replaces 90305-MA2-003.

90305-MB4-003

$12.52

17

NUT, U (18MM)

90305-MB4-003

$12.52

18

NUT, FLANGE (M8X1.25) (SELF-LOCK)

90309-428-731

$3.35

19

BEARING, RADIAL BALL (6004TM) (TOYO)

91061-KA4-701

Unavailable

20

DUST SEAL (28X42X8) (NOK) This part replaces 91257-KA3-711.

91257-MAY-003

$9.16

20

DUST SEAL (28X42X8) (NOK) This part replaces 91257-KA3-712.

91257-MAY-003

$9.16

20

DUST SEAL (28X42X8) (NOK)

91257-MAY-003

$9.16

21

NUT, HEX. (8MM)

94001-08000-0S

$1.49

22

WASHER, SPRING (8MM)

94111-08000

$1.49
