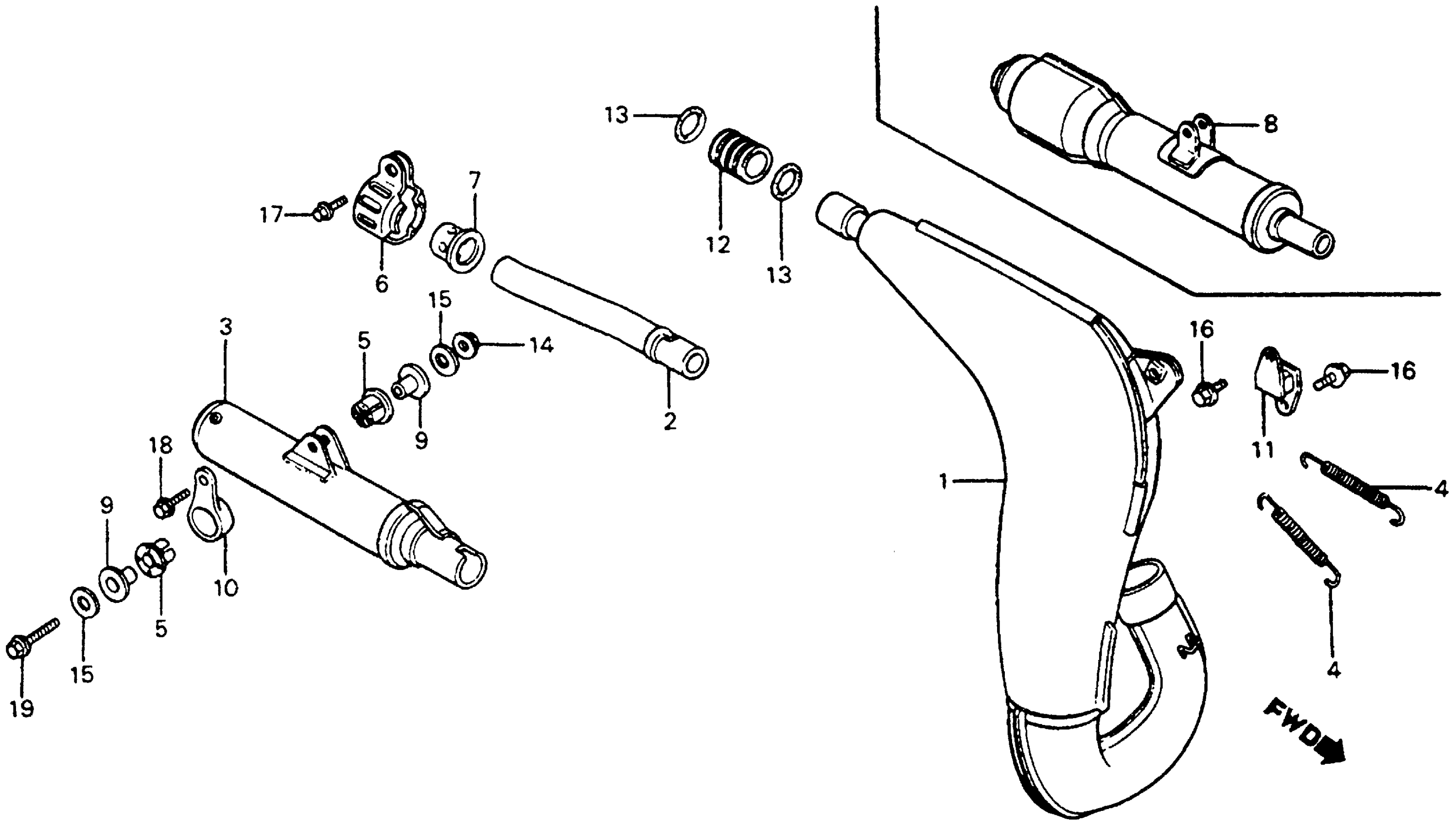

Honda CR125RA (83) MOTORCYCLE, JPN, VIN# JH2JE010-DC400014 TO JH2JE010-DC406712 MUFFLER 83 Diagram

#

Description
Price

1

MUFFLER *NH106* (HEATPROOF BLACK) (NOT AVAILABLE)

18300-KA3-710ZA

Unavailable

2

PIPE, MUFFLER CONNECTING (NOT AVAILABLE)

18328-KA3-711

Unavailable

3

MUFFLER (NOT AVAILABLE) This part replaces 18330-KA3-711.

18330-KA3-717

Unavailable

3

MUFFLER (NOT AVAILABLE)

18330-KA3-717

Unavailable

4

SPRING, EX. PIPE

18332-KA4-000

Unavailable

5

RUBBER, MUFFLER

18334-KA4-000

Unavailable

6

BAND, MUFFLER SETTING

18335-KA3-711

Unavailable

7

RUBBER, MUFFLER SETTING (NOT AVAILABLE)

18336-KA3-710

Unavailable

8

ARRESTER, SPARK (NOT AVAILABLE) | (Optional).

18350-KA3-821

Unavailable

9

COLLAR, MUFFLER

18357-KA4-710

$6.63

10

STAY, MUFFLER (NOT AVAILABLE)

18358-KA3-710

Unavailable

11

STAY, MUFFLER

18355-KA4-000

Unavailable

11

STAY, MUFFLER This part replaces 18359-KA3-000.

18355-KA4-000

Unavailable

12

SEAL, MUFFLER (NOT AVAILABLE)

18361-KA3-710

Unavailable

13

BAND, MUFFLER SEAL

18362-KA4-700

$7.16

14

NUT, FLANGE (6MM)

94050-06080

$1.49

15

WASHER, PLAIN (6MM)

94103-06000

$1.49

16

BOLT, FLANGE (8X14) This part replaces 95700-08014-08.

95701-08014-08

$1.80

16

BOLT, FLANGE (8X14)

95701-08014-08

$1.80

17

BOLT, FLANGE (6X10) This part replaces 96000-06010-00.

96001-06010-00

$1.55

17

BOLT, FLANGE (6X10)

96001-06010-00

$1.55

18

BOLT, FLANGE (6X12) This part replaces 96000-06012-00.

96001-06012-00

$1.80

18

BOLT, FLANGE (6X12)

96001-06012-00

$1.80

19

BOLT, FLANGE (6X40) This part replaces 96000-06040-00.

96001-06040-00

$2.16

19

BOLT, FLANGE (6X40)

96001-06040-00

$2.16
