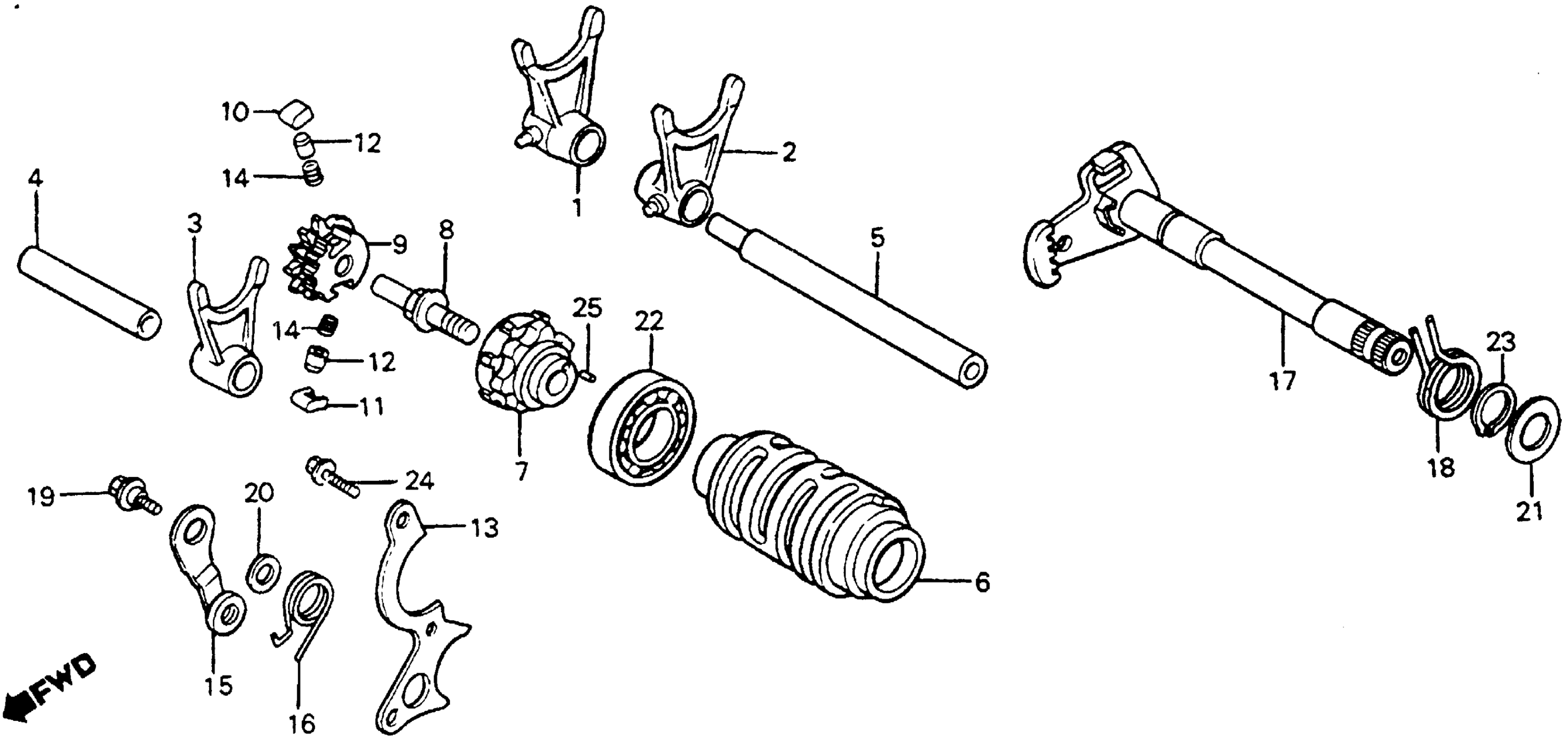

Honda CR125RA (83) MOTORCYCLE, JPN, VIN# JH2JE010-DC400014 TO JH2JE010-DC406712 GEARSHIFT DRUM 83 Diagram

#

Description
Price

1

FORK, R. GEARSHIFT (NOT AVAILABLE)

24211-KA3-710

Unavailable

2

FORK, L. GEARSHIFT (NOT AVAILABLE)

24221-KA3-710

Unavailable

3

FORK C, GEARSHIFT

24231-KA3-710

Unavailable

4

SHAFT, GEARSHIFT FORK (M) (NOT AVAILABLE)

24265-KA3-710

Unavailable

5

COUNTERSHAFT, GEARSHIFT FORK

24266-KA3-710

Unavailable

6

DRUM, GEARSHIFT (NOT AVAILABLE)

24311-KA3-710

Unavailable

7

CENTER, GEARSHIFT DRUM This part replaces 24312-KA3-711.

24312-KA3-741

$64.75

7

CENTER, GEARSHIFT DRUM

24312-KA3-741

$64.75

8

PIN, SHIFTER

24315-KA3-710

$21.03

9

SHIFTER, DRUM This part replaces 24321-KA3-711.

24321-MJ0-010

Unavailable

9

SHIFTER, DRUM This part replaces 24321-MJ0-000.

24321-MJ0-010

Unavailable

9

SHIFTER, DRUM

24321-MJ0-010

Unavailable

10

PAWL A, RATCHET This part replaces 24324-KA3-710.

24324-KA3-711

$13.21

10

PAWL A, RATCHET

24324-KA3-711

$13.21

11

PAWL B, RATCHET This part replaces 24325-KA3-710.

24325-KA3-711

$13.21

11

PAWL B, RATCHET

24325-KA3-711

$13.21

12

PLUNGER, PAWL This part replaces 24326-360-000.

24326-360-010

$5.19

12

PLUNGER, PAWL

24326-360-010

$5.19

13

PLATE, GUIDE

24328-KA3-710

Unavailable

14

SPRING, PAWL PLUNGER

24329-360-000

$2.90

15

STOPPER, DRUM

24430-KA3-710

Unavailable

16

SPRING, DRUM STOPPER

24435-KA3-710

Unavailable

17

SPINDLE, GEARSHIFT (NOT AVAILABLE) | Use up to Engine SN 2405656 This part replaces 24610-KA3-710.

24610-KA3-711

Unavailable

17

SPINDLE, GEARSHIFT (NOT AVAILABLE)

24610-KA3-711

Unavailable

18

SPRING, SHIFT RETURN

24651-KA3-710

Unavailable

19

BOLT, GEARSHIFT DRUM STOPPER ARM PIVOT This part replaces 90023-041-000.

90023-041-010

$2.25

19

BOLT, GEARSHIFT DRUM STOPPER ARM PIVOT

90023-041-010

$2.25

20

WASHER, DRUM STOPPER

90417-360-000

$1.74

21

WASHER B, THRUST (14MM)

90428-958-000

$4.66

22

BEARING, RADIAL BALL (25X42X9) (TOYO)

91004-GC4-731

$27.55

22

BEARING, RADIAL BALL (25X42X9) (TOYO) This part replaces 91004-430-003.

91004-GC4-731

$27.55

22

BEARING, RADIAL BALL (25X42X9) (TOYO) This part replaces 91004-430-004.

91004-GC4-731

$27.55

23

CIRCLIP, OUTER (14MM)

94510-14000

$1.49

24

BOLT, FLANGE (6X16) This part replaces 95700-06016-00.

95701-06016-00

$1.55

24

BOLT, FLANGE (6X16)

95701-06016-00

$1.55

25

ROLLER (4X8)

96220-40080

$1.49
