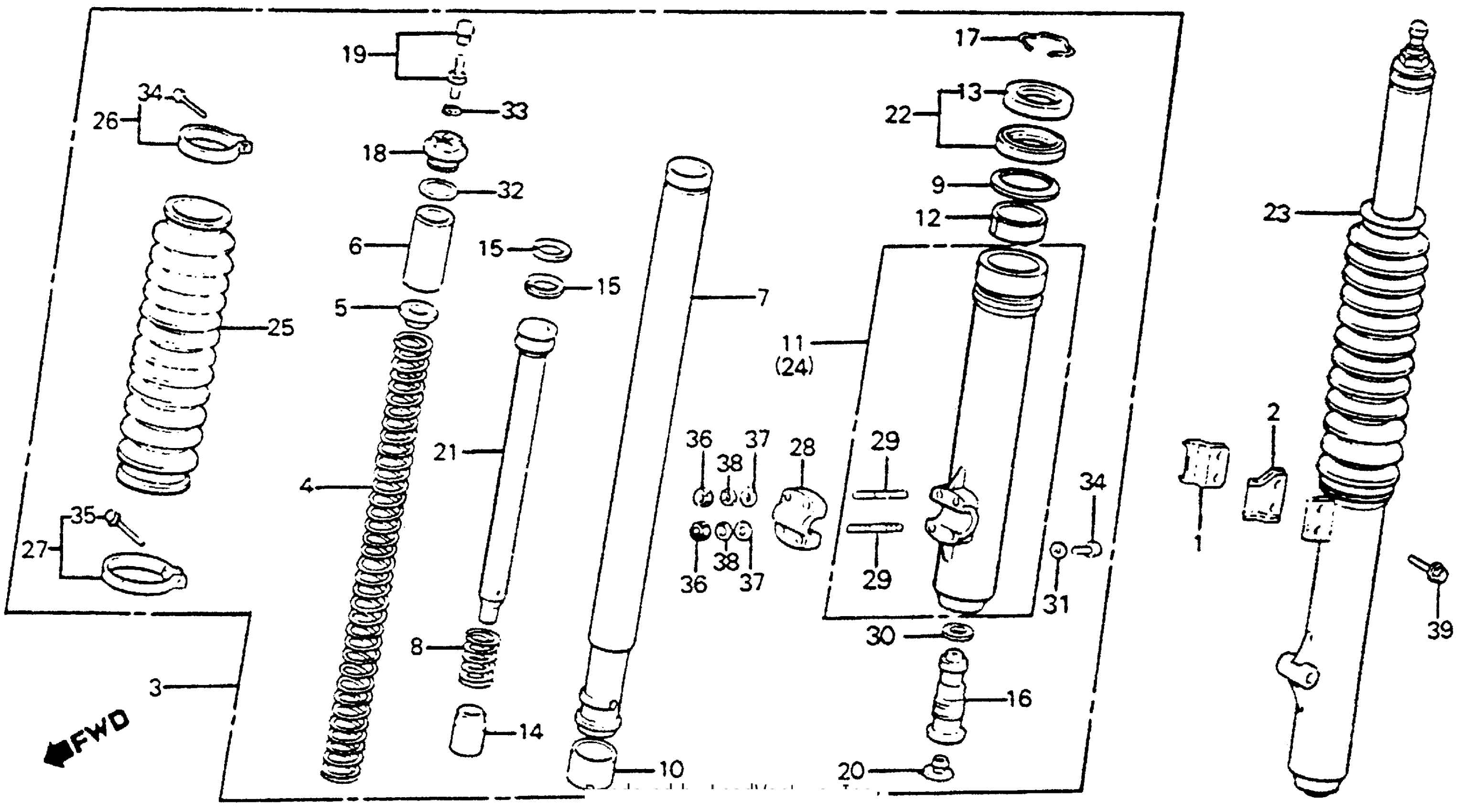

Honda CR125RA (83) MOTORCYCLE, JPN, VIN# JH2JE010-DC400014 TO JH2JE010-DC406712 FRONT SHOCK ABSORBER 83 Diagram

#

Description
Price

1

CLAMP A, FR. BRAKE CABLE

45461-KA3-710

$10.40

2

CLAMP B, FR. BRAKE CABLE

45462-KA3-710

$4.94

3

FORK ASSY., R. FR.

51400-KA3-711

Unavailable

4

SPRING, FR. FORK (0.285)

51401-KA3-711

Unavailable

4

SPRING, FR. FORK (0.265) (ONE GROOVE) | (Optional).

51402-KA3-711

Unavailable

4

SPRING, FR. FORK (0.305KG.MM) (2-GRV) | (Optional).

51403-KA3-711

Unavailable

5

GUIDE, SPRING

51403-KA3-004

Unavailable

6

SPACER, SPRING (NOT AVAILABLE)

51404-KA3-701

Unavailable

7

PIPE, FR. FORK

51410-KA3-711

Unavailable

8

SPRING, FR. FORK REBOUND

51411-KA3-004

Unavailable

9

WASHER

51412-KA3-305

Unavailable

10

SLEEVE, FORK PIPE

51415-KA3-004

Unavailable

11

CASE, R. (LOWER)

51421-KA3-701

Unavailable

12

BUSH, FORK PIPE This part replaces 51424-KA3-004.

51424-KT0-781

Unavailable

13

DUST SEAL (NOT AVAILABLE)

51425-KA3-701

Unavailable

14

PIECE, OIL LOCK (NOT AVAILABLE)

51432-KA3-701

Unavailable

15

RING, PISTON

51437-KA3-711

Unavailable

16

BOLT, CENTER

51441-KA3-711

Unavailable

17

RING, SNAP

51447-KA3-004

Unavailable

18

BOLT, FR. FORK (NOT AVAILABLE)

51455-KA3-711

Unavailable

19

VALVE ASSY., AIR (NOT AVAILABLE)

51456-KA3-711

Unavailable

20

CAP, ADJUSTING BOLT (NOT AVAILABLE)

51461-KA3-711

Unavailable

21

PIPE, SEAT

51470-KA3-711

Unavailable

22

SEAL SET, FR. FORK

51490-KA3-711

Unavailable

23

FORK ASSY., L. FR.

51500-KA3-711

Unavailable

24

CASE, L. (LOWER)

51521-KA3-711

Unavailable

25

BOOT, FR. FORK (KAYABA) (NOT AVAILABLE)

51611-KA3-711

Unavailable

26

BAND, BOOT (UPPER)

51612-KA3-711

Unavailable

27

BAND, BOOT (LOWER)

51613-KA3-711

Unavailable

28

HOLDER, AXLE This part replaces 51634-KA3-731.

51634-KT0-671

Unavailable

28

HOLDER, AXLE This part replaces 51634-KA4-004.

51634-KT0-671

Unavailable

28

HOLDER, AXLE

51634-KT0-671

Unavailable

29

BOLT, STUD (6X34)

90136-KA3-831

$4.51

29

BOLT, STUD (6X34) This part replaces 90136-KA4-004.

90136-KA3-831

$4.51

30

WASHER, DRAIN (4MM)

90543-KA4-004

Unavailable

31

WASHER

90544-KA3-701

Unavailable

32

O-RING (28.17X3.53)

91356-KA3-004

$3.10

33

O-RING (5.8X1.9)

91357-KA4-004

$2.48

34

SCREW, PAN (4X8)

93500-04008-0A

$1.49

35

SCREW, PAN (4X16)

93500-04016-0A

$1.49

36

NUT, HEX. (6MM) This part replaces 90310-KA3-711.

94001-06200-0S

$1.49

36

NUT, HEX. (6MM) This part replaces 94000-06000-0S.

94001-06200-0S

$1.49

36

NUT, HEX. (6MM) This part replaces 94001-06000.

94001-06200-0S

$1.49

36

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

36

NUT, HEX. (6MM) This part replaces 94001-06008-0S.

94001-06200-0S

$1.49

36

NUT, HEX. (6MM)

94001-06200-0S

$1.49

36

NUT, HEX. (6MM) This part replaces 94030-06000.

94001-06200-0S

$1.49

37

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

37

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

37

WASHER, PLAIN (6MM)

94101-06800

$1.49

38

WASHER, SPRING (6MM)

94111-06000

$1.49

39

BOLT, FLANGE (6X16) This part replaces 96000-06016-00.

96001-06016-00

$1.49

39

BOLT, FLANGE (6X16)

96001-06016-00

$1.49
