- CR125RA (83) MOTORCYCLE, JPN, VIN# JH2JE010-DC400014 TO JH2JE010-DC406712
CLUTCH 83

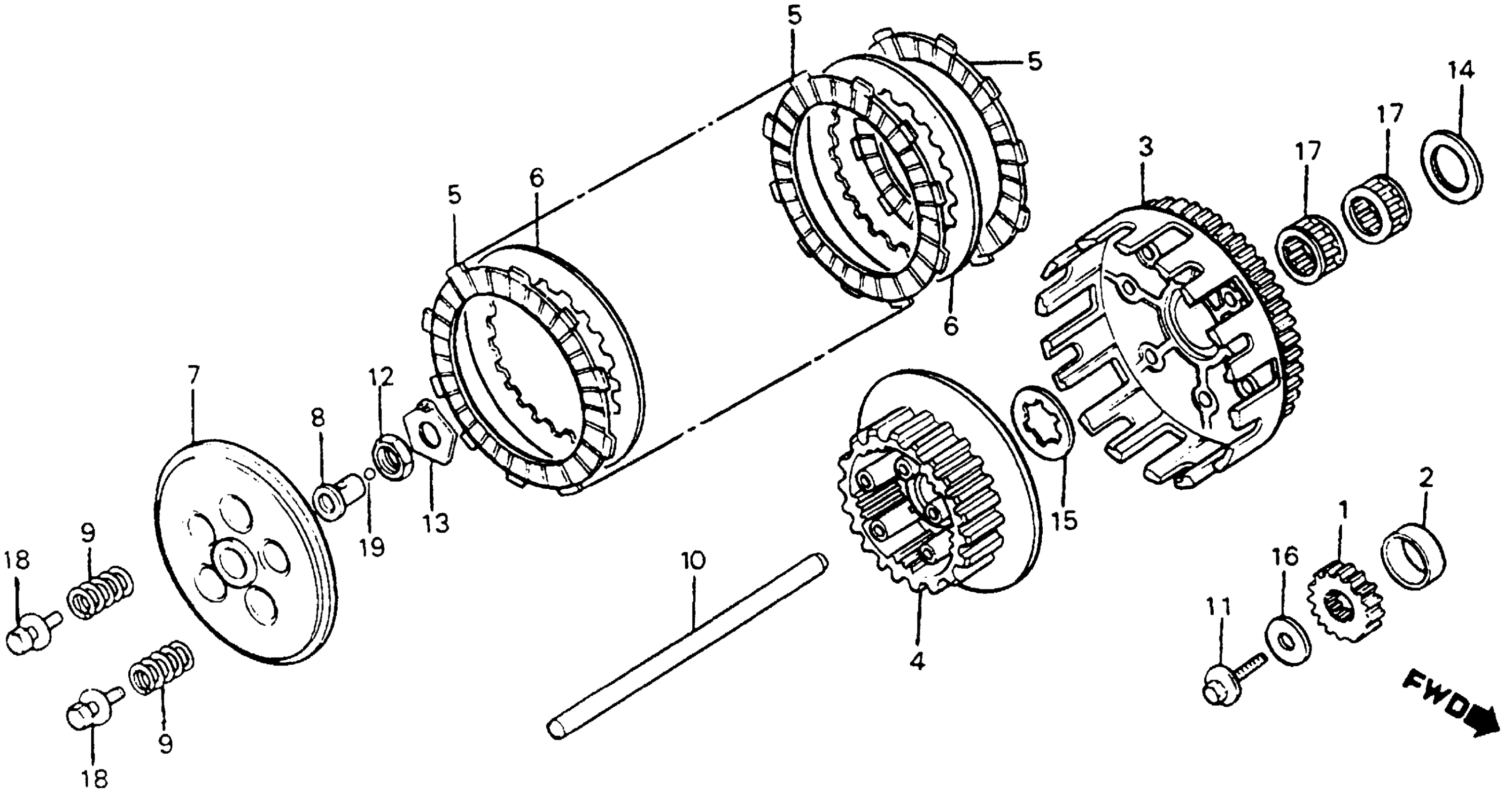

Honda CR125RA (83) MOTORCYCLE, JPN, VIN# JH2JE010-DC400014 TO JH2JE010-DC406712 CLUTCH 83 Diagram
#
Description
Price
1
GEAR, PRIMARY DRIVE (17T)
13615-KA3-710
Unavailable
2
COLLAR, DRIVE GEAR
13617-KA3-710
Unavailable
3
CLUTCH (OUTER) (56T) (NOT AVAILABLE)
22100-KA3-710
Unavailable
4
CENTER, CLUTCH (NOT AVAILABLE)
22120-KA3-710
Unavailable
5
DISK, CLUTCH FRICTION | Use up to Engine SN 2403926 This part replaces 22201-HA2-000.
22201-KAE-000
$19.37
5
DISK, CLUTCH FRICTION | Use up to Engine SN 2403926 This part replaces 22201-HA5-670.
22201-KAE-000
$19.37
5
DISK, CLUTCH FRICTION | Use up to Engine SN 2403926 This part replaces 22201-KA3-711.
22201-KAE-000
$19.37
5
DISK, CLUTCH FRICTION | Use up to Engine SN 2403926 This part replaces 22201-KA3-712.
22201-KAE-000
$19.37
7
PLATE, CLUTCH PRESSURE This part replaces 22351-KA3-710.
22351-KS6-000
Unavailable
7
PLATE, CLUTCH PRESSURE This part replaces 22351-KA3-760.
22351-KS6-000
Unavailable
7
PLATE, CLUTCH PRESSURE
22351-KS6-000
Unavailable
8
PIECE, CLUTCH LIFTER
22352-KA4-000
Unavailable
10
ROD, CLUTCH LIFTER (NOT AVAILABLE)
22850-KA3-710
Unavailable
12
NUT, LOCK (18MM)
90235-428-000
Unavailable
12
NUT, LOCK (18MM) This part replaces 90235-444-000.
90235-428-000
Unavailable
13
WASHER, LOCK (18MM) This part replaces 90411-KA3-000.
90411-KA3-760
Unavailable
13
WASHER, LOCK (18MM)
90411-KA3-760
Unavailable
14
WASHER, THRUST (22X32) (NOT AVAILABLE)
90451-KA3-710
Unavailable
15
WASHER, SPLINE (22MM) (NOT AVAILABLE)
90456-KA3-710
Unavailable
17
BEARING, NEEDLE (22X26X10) (TOYO) (NOT AVAILABLE)
91011-KA3-711
Unavailable
