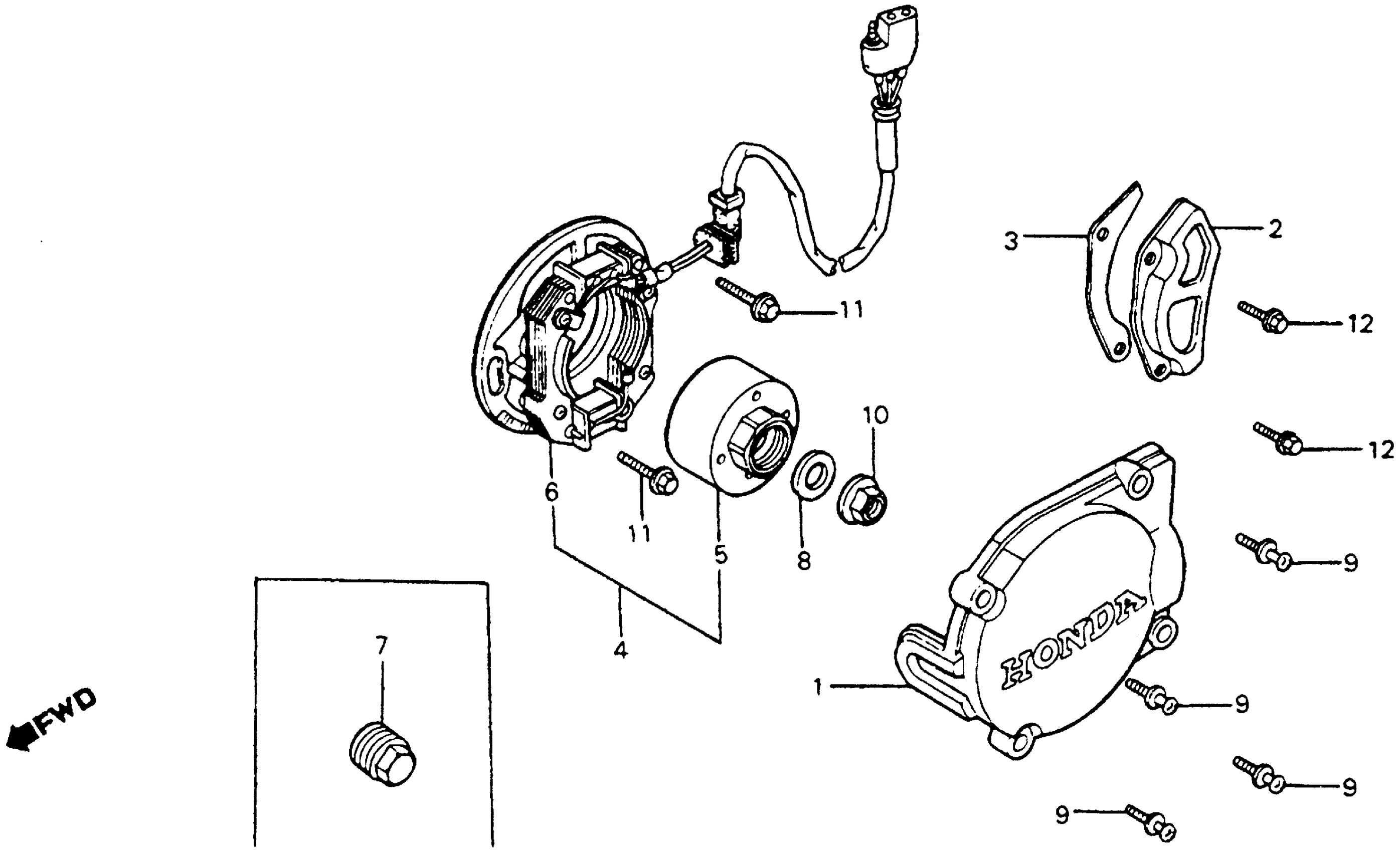

Honda CR125RA (83) MOTORCYCLE, JPN, VIN# JH2JE010-DC400014 TO JH2JE010-DC406712 ALTERNATOR + C.D.I. UNIT 83 Diagram

COVER, L. CRANKCASE (NOT AVAILABLE)

11350-KA3-710

Unavailable

COVER, DRIVE SPROCKET (NOT AVAILABLE)

23810-KA3-710

Unavailable

GUIDE, DRIVE CHAIN (NOT AVAILABLE)

23812-KA3-710

Unavailable

ALTERNATOR ASSY. (NOT AVAILABLE)

31100-KA3-711

Unavailable

ROTOR (NOT AVAILABLE)

31110-KA3-711

Unavailable

STATOR

31120-KA3-711

Unavailable

BOLT, REMOVING | (Optional).

07AMC-400A100

$68.10

BOLT, REMOVING | (Optional).

89301-400-000

$69.46

BOLT, REMOVING | (Optional). This part replaces 89302-KA4-810.

89301-400-000

$69.46

WASHER, PLAIN (12MM)

90437-611-000

$4.22

SCREW-WASHER (6X25)

93891-06025-07

$1.49

NUT, FLANGE (12MM)

94050-12000

$1.49

BOLT, FLANGE (6X18) BOLT, HEX. (6X18) This part replaces 95700-06018-00.

95701-06018-00

$1.62

BOLT, FLANGE (6X18)

95701-06018-00

$1.62

BOLT, FLANGE (6X18) This part replaces 96000-06018-00.

96001-06018-00

$1.80

BOLT, FLANGE (6X18)

96001-06018-00

$1.80
