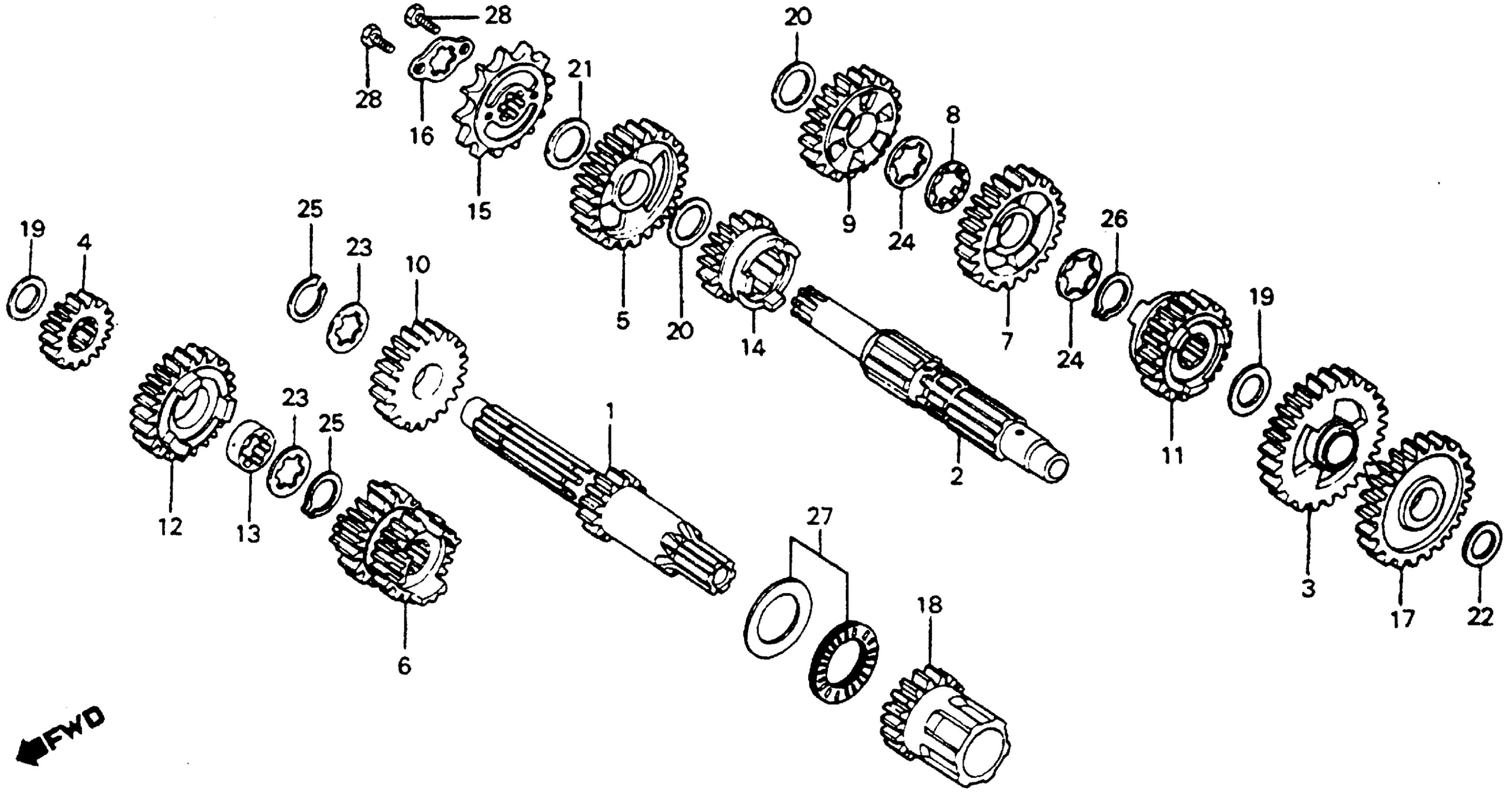

Honda CR125RA (82) MOTORCYCLE, JPN, VIN# JH2JE010-CC300001 TO JH2JE010-CC307692 TRANSMISSION 81-82 Diagram

#

Description
Price

1

MAINSHAFT (12T) (NOT AVAILABLE)

23210-KA3-010

Unavailable

2

COUNTERSHAFT

23220-KA3-700

Unavailable

3

GEAR, COUNTERSHAFT LOW (29T) (NOT AVAILABLE)

23410-KA3-000

Unavailable

4

GEAR, MAINSHAFT SECOND (15T) (NOT AVAILABLE)

23421-KA3-000

Unavailable

5

GEAR, COUNTERSHAFT SECOND (30T)

23431-KA3-000

Unavailable

6

GEAR, MAINSHAFT THIRD (18/20T) (NOT AVAILABLE)

23441-KA3-700

Unavailable

7

GEAR, COUNTERSHAFT THIRD (29T) (NOT AVAILABLE)

23451-KA3-700

Unavailable

8

WASHER, LOCK

23456-KA3-000

$5.87

9

GEAR, COUNTERSHAFT FOURTH (27T)

23461-KA3-000

Unavailable

9

GEAR, COUNTERSHAFT FOURTH (27T) This part replaces 23461-KA3-700.

23461-KA3-000

Unavailable

10

GEAR, MAINSHAFT FIFTH (22T) (NOT AVAILABLE)

23471-444-000

Unavailable

11

GEAR, COUNTERSHAFT FIFTH (25T) (NOT AVAILABLE)

23481-KA3-700

Unavailable

12

GEAR, MAINSHAFT SIXTH (23T) (NOT AVAILABLE)

23491-444-000

Unavailable

13

COLLAR, MAINSHAFT SIXTH GEAR

23492-444-000

Unavailable

14

GEAR, COUNTERSHAFT SIXTH (23T) (NOT AVAILABLE)

23501-KA3-700

Unavailable

15

SPROCKET, DRIVE (13T)

23801-KK1-000

Unavailable

15

SPROCKET, DRIVE (12T) | (Optional).

23803-444-810

Unavailable

15

SPROCKET, DRIVE (13T) This part replaces 23804-KA3-000.

23801-KK1-000

Unavailable

16

PLATE, FIXING (NOT AVAILABLE)

23811-444-000

Unavailable

17

GEAR, KICK STARTER IDLE (25T) (NOT AVAILABLE)

28231-KA3-000

Unavailable

18

GEAR, STARTER (16T) (NOT AVAILABLE)

28235-444-000

Unavailable

19

WASHER, THRUST (17.2MM)

90446-357-000

$3.60

20

WASHER, THRUST (22MM)

90452-357-000

$5.79

21

WASHER, THRUST (20MM)

90453-360-000

$3.30

22

WASHER (15MM) (NOT AVAILABLE)

90457-700-305

Unavailable

23

WASHER, SPLINE (20MM)

90461-444-000

$5.04

24

WASHER, SPLINE (22MM)

90464-444-000

$5.37

25

SET-RING (20MM)

90601-360-000

$9.19

26

SET-RING (22MM)

90602-360-000

$9.66

27

BEARING, THRUST (TOYO) (NOT AVAILABLE)

91015-KA3-003

Unavailable

28

BOLT, HEX. (6X10) This part replaces 92000-06010.

92101-06010-0A

$1.49

28

BOLT, HEX. (6X10)

92101-06010-0A

$1.49
