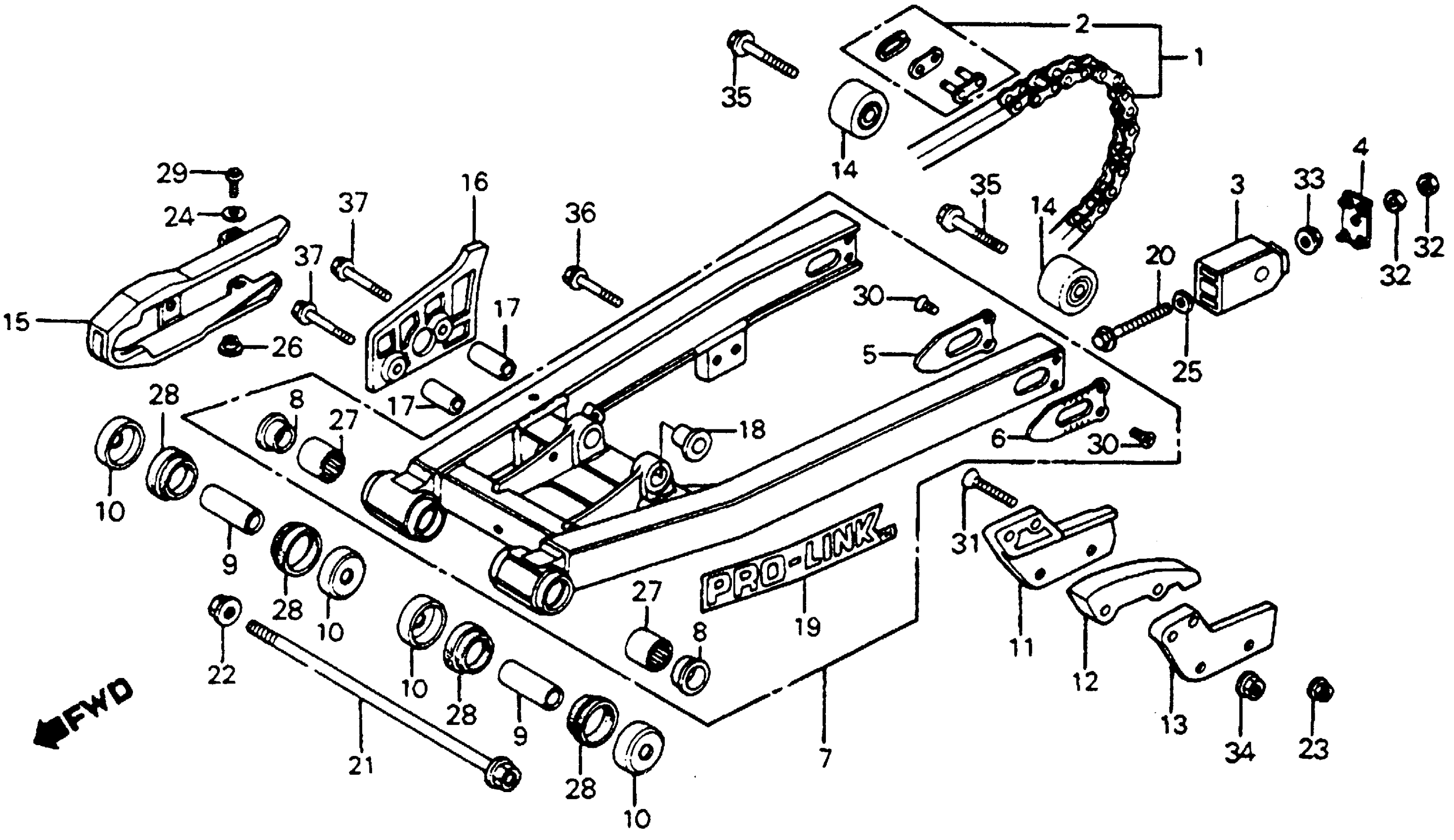

Honda CR125RA (82) MOTORCYCLE, JPN, VIN# JH2JE010-CC300001 TO JH2JE010-CC307692 SWINGARM + DRIVE CHAIN 82 Diagram

#

Description
Price

1

CHAIN, DRIVE

405W3-KA4-505

Unavailable

1

CHAIN, DRIVE This part replaces 40530-KA3-702.

405W3-KA4-505

Unavailable

1

CHAIN, DRIVE (520K-112L) (DAIDO) (NOT AVAILABLE)

40530-KA3-811

Unavailable

1

CHAIN, DRIVE (520KS-112L) (TAKASAGO) (NOT AVAILABLE) | (Optional).

40530-KA3-812

Unavailable

1

CHAIN, DRIVE (520K-Z-114L) | (Optional).

40532-KA4-702

Unavailable

1

CHAIN, DRIVE This part replaces 40532-KS6-703.

405W3-KA4-505

Unavailable

2

MASTER LINK (DAIDO) (NOT AVAILABLE)

40531-KA3-003

Unavailable

2

MASTER LINK (TAKASAGO) (NOT AVAILABLE)

40531-KA4-702

Unavailable

3

ADJUSTER, CHAIN

40543-KA4-700

Unavailable

4

RETAINER, CHAIN ADJUSTER (NOT AVAILABLE)

40544-KA3-710

Unavailable

4

RETAINER, CHAIN ADJUSTER (NOT AVAILABLE) This part replaces 40544-KA4-700.

40544-KA3-710

Unavailable

5

WASHER, SWINGARM INSIDE (NOT AVAILABLE)

42307-KA4-700

Unavailable

6

WASHER, SWINGARM (OUTER) (NOT AVAILABLE)

42308-KA4-700

Unavailable

7

SWINGARM ASSY., RR.

52000-KA3-701

Unavailable

8

BUSH, PIVOT THRUST

52109-KA4-701

$16.01

9

COLLAR, SWINGARM (NOT AVAILABLE)

52141-KA4-700

Unavailable

10

CAP, DUST SEAL

52144-KA3-731

$14.60

10

CAP, DUST SEAL This part replaces 52144-KA4-701.

52144-KA3-731

$14.60

11

GUIDE, R. CHAIN (NOT AVAILABLE)

52146-KA4-700

Unavailable

12

SLIDER, CHAIN GUIDE (NOT AVAILABLE)

52147-KA4-700

Unavailable

13

GUIDE, L. CHAIN

52156-KA4-700

Unavailable

14

ROLLER, CHAIN TENSIONER

52158-KA4-700

Unavailable

15

SLIDER, CHAIN (NOT AVAILABLE)

52170-KA4-701

Unavailable

16

SPLASH GUARD, CHAIN (NOT AVAILABLE)

52180-KA4-701

Unavailable

17

COLLAR, CHAIN SPLASH GUARD (NOT AVAILABLE)

52181-KA4-700

Unavailable

18

WASHER, CUSHION ARM (NOT AVAILABLE)

52464-KA4-700

Unavailable

19

EMBLEM, SWINGARM (NOT AVAILABLE)

87121-MA0-300

Unavailable

20

BOLT, FLANGE (8X72)

90106-KA4-700

Unavailable

21

BOLT, SWINGARM (NOT AVAILABLE)

90117-KA4-000

Unavailable

22

NUT, RR. SWINGARM PIVOT

90301-430-000

Unavailable

23

NUT, U (6MM)

90301-473-003

$4.07

24

WASHER, STOPPER This part replaces 90483-040-000.

90483-041-000

$1.92

24

WASHER, STOPPER

90483-041-000

$1.92

25

WASHER, CHAIN ADJUSTER

90507-KA4-700

Unavailable

26

WASHER, FR. FENDER SETTING

90556-044-000

$3.65

27

BEARING, SWINGARM PIVOT (NTN)

91071-MA0-003

$33.10

27

BEARING, RR. SWINGARM PIVOT (TOYO) This part replaces 91071-MA0-004.

91071-MA0-003

$33.10

28

DUST SEAL

91253-KA4-701

$12.86

28

DUST SEAL This part replaces 91253-KA4-702.

91253-KA4-701

$12.86

29

SCREW, PAN (5X10)

93500-05010-0H

$1.49

30

SCREW, FLAT (5X6) (NOT AVAILABLE)

93600-05006-0A

Unavailable

31

SCREW, FLAT (6X40) (SOURCE: VINTAGE PARTS INC.)

93600-06040-0H

Unavailable

32

NUT, HEX. (8MM)

94002-08000-0S

$1.49

33

NUT, FLANGE (8MM)

94050-08000

$1.49

34

NUT, FLANGE (8MM)

94050-08080

$1.49

35

BOLT, FLANGE (8X35) This part replaces 95700-08035-08.

95701-08035-08

$1.49

35

BOLT, FLANGE (8X35)

95701-08035-08

$1.49

36

BOLT, FLANGE (8X50) This part replaces 95700-08050-08.

95701-08050-08

$2.28

36

BOLT, FLANGE (8X50)

95701-08050-08

$2.28

37

BOLT, FLANGE (6X45) This part replaces 96000-06045-00.

96001-06045-00

$1.95

37

BOLT, FLANGE (6X45)

96001-06045-00

$1.95
