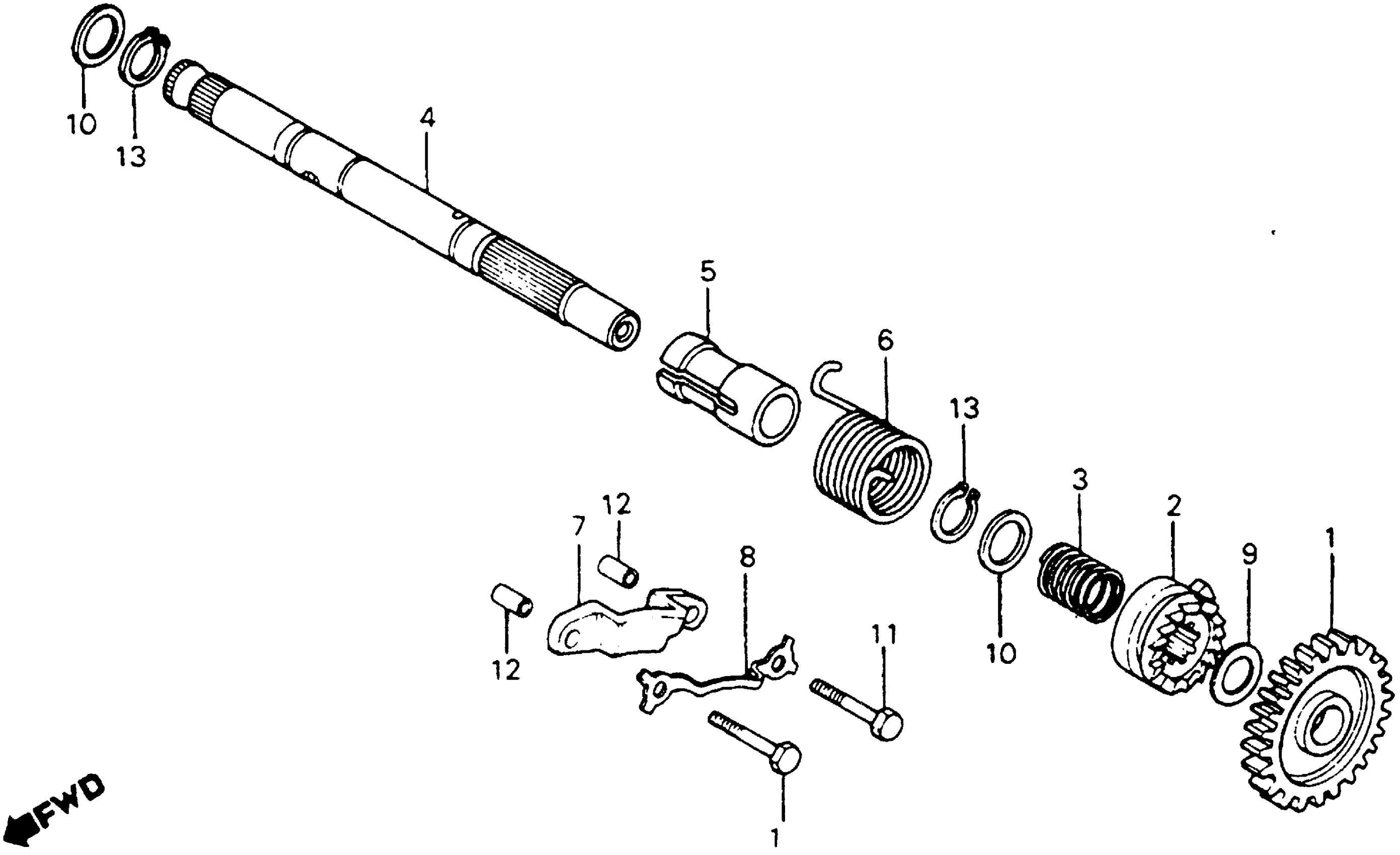

Honda CR125RA (82) MOTORCYCLE, JPN, VIN# JH2JE010-CC300001 TO JH2JE010-CC307692 KICK STARTER SPINDLE 82 Diagram

GEAR, KICK STARTER (27T)

28210-KA3-000

Unavailable

RATCHET, KICK STARTER

28241-444-000

Unavailable

SPRING, RATCHET (NOT AVAILABLE)

28242-444-000

Unavailable

SPINDLE, KICK STARTER (NOT AVAILABLE)

28250-KA3-700

Unavailable

COLLAR, KICK SPINDLE (NOT AVAILABLE)

28255-KA3-701

Unavailable

SPRING, KICK STARTER RETURN (NOT AVAILABLE)

28261-444-000

Unavailable

PLATE, KICK STOPPER (NOT AVAILABLE)

28262-KA3-000

Unavailable

WASHER, LOCK (6MM) (NOT AVAILABLE)

90435-444-000

Unavailable

WASHER, THRUST (14MM)

90453-444-000

Unavailable

WASHER (16.8X24)

90501-444-000

$4.17

BOLT, HEX. (6X32) This part replaces 92200-06032.

92201-06032-0A

Unavailable

BOLT, HEX. (6X32)

92201-06032-0A

Unavailable

PIN, DOWEL (8X14)

94301-08140

$2.25

CIRCLIP (OUTER) (16MM)

94510-16000

$1.49
