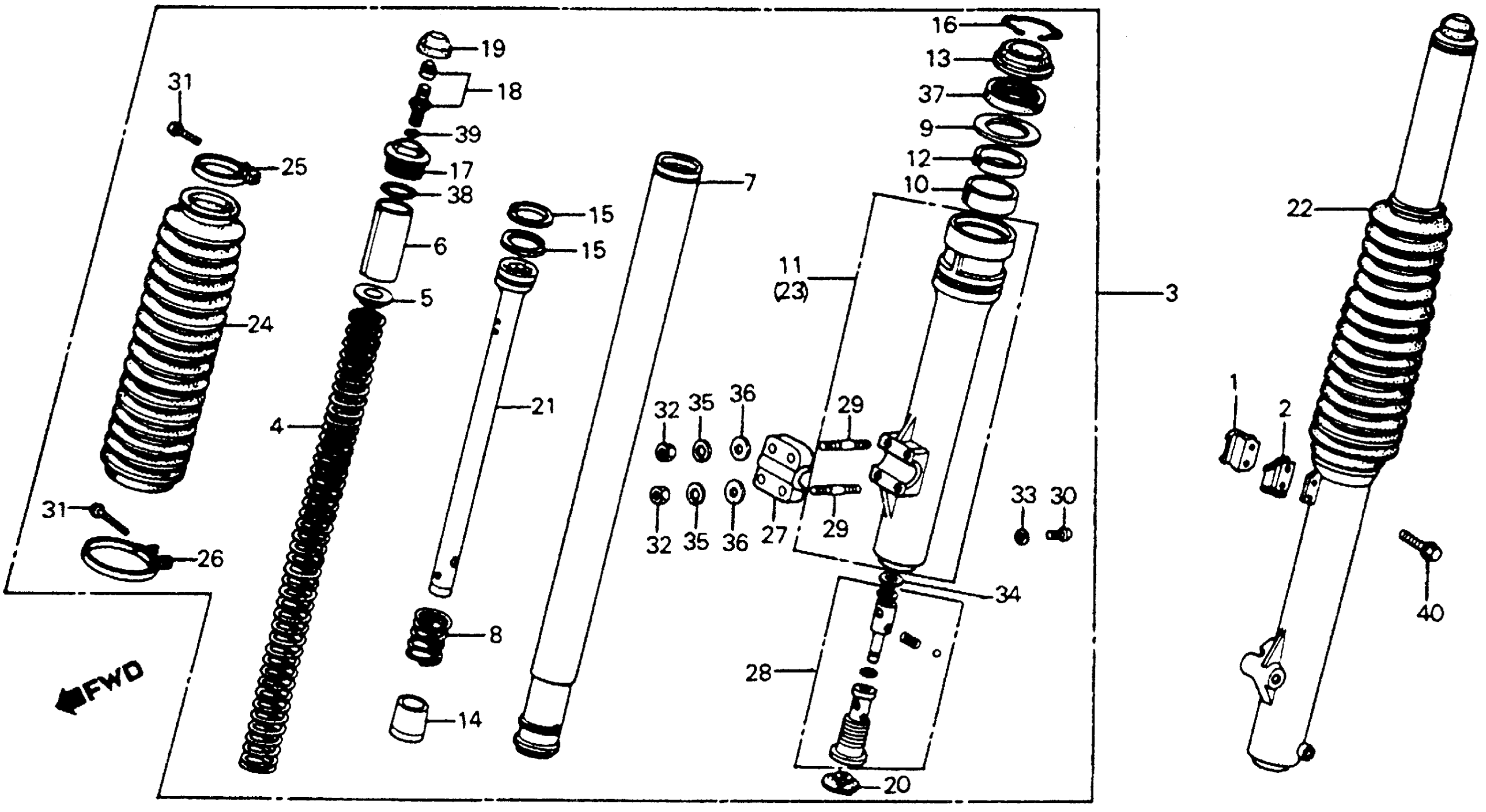

Honda CR125RA (82) MOTORCYCLE, JPN, VIN# JH2JE010-CC300001 TO JH2JE010-CC307692 FRONT SHOCK ABSORBER 82 Diagram

#

Description
Price

1

CLAMP A, FR. BRAKE CABLE

45461-KA3-710

$10.40

1

CLAMP A, FR. BRAKE CABLE This part replaces 45461-KA4-701.

45461-KA3-710

$10.40

2

CLAMP B, FR. BRAKE CABLE (NOT AVAILABLE)

45462-KA4-700

Unavailable

3

SHOCK ABSORBER ASSY., R. FR. (KAYABA)

51400-KA3-771

Unavailable

4

SPRING, FR. FORK

51401-KA3-771

Unavailable

4

SPRING, FR. FORK | (Optional).

51405-KA3-701

Unavailable

5

GUIDE, SPRING

51403-KA3-004

Unavailable

6

SPACER, SPRING (NOT AVAILABLE)

51404-KA3-701

Unavailable

7

PIPE, FR. FORK

51410-KA3-701

Unavailable

8

SPRING, FR. FORK REBOUND

51411-KA3-004

Unavailable

9

WASHER This part replaces 51412-KA3-004.

51412-KA3-305

Unavailable

9

WASHER

51412-KA3-305

Unavailable

10

SLEEVE, FORK PIPE

51415-KA3-004

Unavailable

11

CASE, R. (LOWER)

51421-KA3-701

Unavailable

12

BUSH, FORK PIPE This part replaces 51424-KA3-004.

51424-KT0-781

Unavailable

13

DUST SEAL (NOT AVAILABLE)

51425-KA3-701

Unavailable

14

PIECE, OIL LOCK (NOT AVAILABLE)

51432-KA3-701

Unavailable

15

RING, PISTON (NOT AVAILABLE)

51437-KA3-004

Unavailable

16

RING, SNAP

51447-KA3-004

Unavailable

17

BOLT, FR. FORK (NOT AVAILABLE)

51455-KA3-701

Unavailable

18

VALVE ASSY., AIR (NOT AVAILABLE)

51456-KA4-004

Unavailable

19

CAP, FORK BOLT (NOT AVAILABLE)

51457-KA4-004

Unavailable

20

CAP, ADJUSTING BOLT (NOT AVAILABLE)

51461-KA3-701

Unavailable

21

PIPE, SEAT (NOT AVAILABLE)

51470-KA3-701

Unavailable

22

SHOCK ABSORBER ASSY., L. FR. (KAYABA)

51500-KA3-771

Unavailable

23

CASE, L. (LOWER)

51521-KA3-701

Unavailable

24

BOOT, FR. FORK (NOT AVAILABLE)

51611-KA3-701

Unavailable

25

BAND, FR. FORK BOOT (NOT AVAILABLE) This part replaces 51612-KA3-701.

51612-KA3-004

Unavailable

26

BAND, BOOT (LOWER) (NOT AVAILABLE)

51613-KA3-701

Unavailable

27

HOLDER, AXLE This part replaces 51634-KA3-731.

51634-KT0-671

Unavailable

27

HOLDER, AXLE This part replaces 51634-KA4-004.

51634-KT0-671

Unavailable

27

HOLDER, AXLE

51634-KT0-671

Unavailable

28

BOLT, SOCKET (NOT AVAILABLE)

90116-KA3-701

Unavailable

29

BOLT, STUD (6X34)

90136-KA3-831

$4.51

29

BOLT, STUD (6X34) This part replaces 90136-KA4-004.

90136-KA3-831

$4.51

30

SCREW, PAN (4X8) (NOT AVAILABLE)

90201-KA4-004

Unavailable

30

SCREW, PAN (4X8)

93500-04008-0A

$1.49

31

SCREW, PAN (4X16)

90202-KA4-004

$2.48

31

SCREW, PAN (4X16)

93500-04016-0A

$1.49

32

NUT, HEX. (6MM) (NOT AVAILABLE)

90310-KA4-004

Unavailable

32

NUT, HEX. (6MM) This part replaces 94001-06020.

94001-06020-0S

$1.49

32

NUT, HEX. (6MM)

94001-06020-0S

$1.49

33

WASHER, DRAIN (4MM)

90543-KA4-004

Unavailable

34

WASHER

90544-KA3-701

Unavailable

35

WASHER, SPRING (6MM) (NOT AVAILABLE)

90545-KA4-004

Unavailable

35

WASHER, SPRING (6MM)

94111-06000

$1.49

36

WASHER, PLAIN (6MM)

90546-KA4-004

$2.48

36

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

36

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

36

WASHER, PLAIN (6MM)

94101-06800

$1.49

37

SEAL SET, FR. FORK

51490-KA3-711

Unavailable

37

SEAL SET, FR. FORK (NOT AVAILABLE) This part replaces 91255-KA3-701.

51490-KA3-711

Unavailable

38

O-RING (28.17X3.53)

91356-KA3-004

$3.10

39

O-RING (5.8X1.9)

91357-KA4-004

$2.48

40

BOLT, FLANGE (6X16) This part replaces 96000-06016-00.

96001-06016-00

$1.49

40

BOLT, FLANGE (6X16)

96001-06016-00

$1.49
