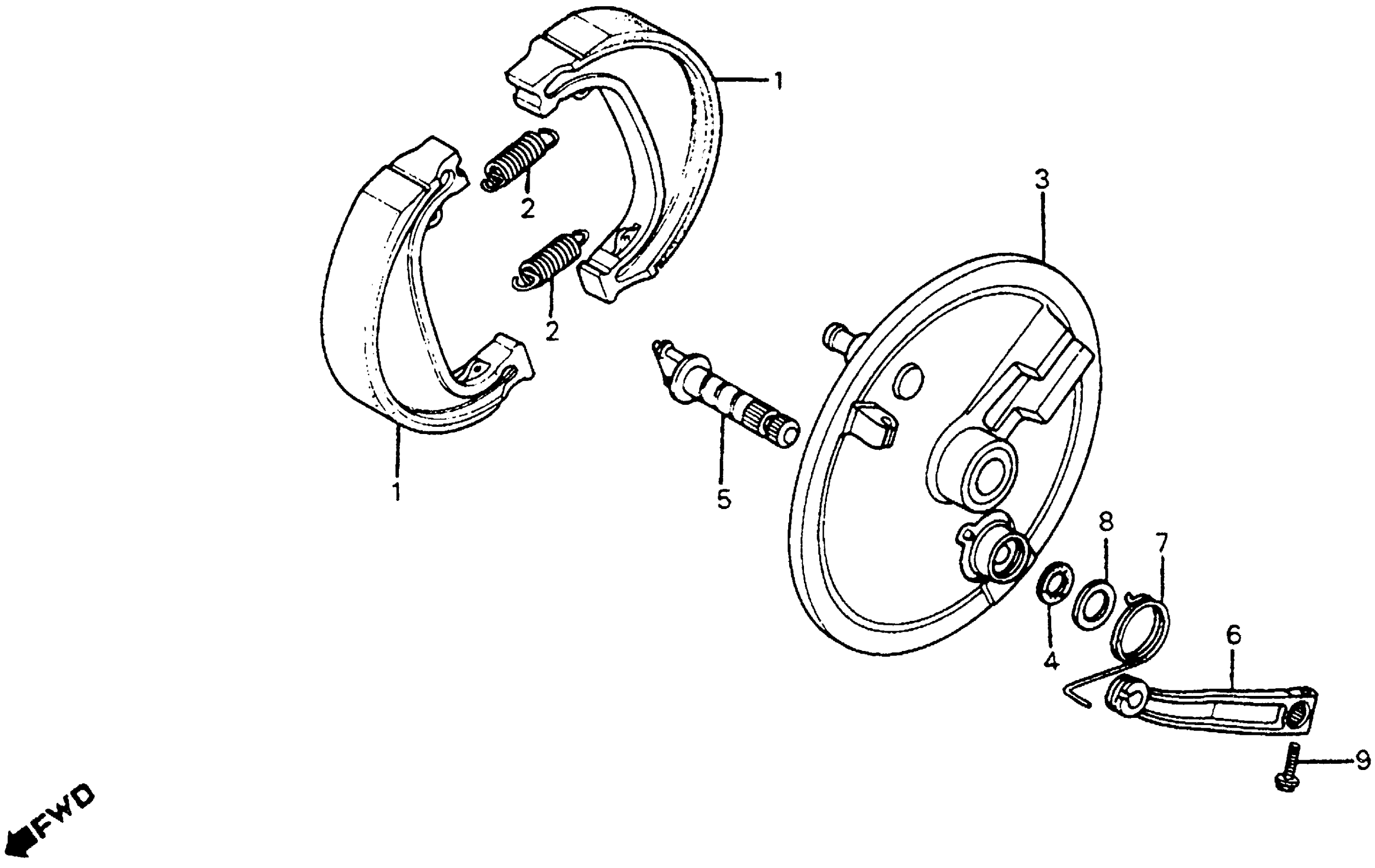

Honda CR125RA (82) MOTORCYCLE, JPN, VIN# JH2JE010-CC300001 TO JH2JE010-CC307692 FRONT BRAKE PANEL 82 Diagram

#

Description

Price

NI

SHOE KIT, BRAKE This part replaces 06430-444-405.

06450-KY0-601

$34.26

NI

SHOE KIT, BRAKE

06450-KY0-601

$34.26

NI

SHOE KIT, BRAKE This part replaces 431A2-KA4-700.

06450-KY0-601

$34.26

1

SHOE KIT, BRAKE

06450-KY0-601

$34.26

1

SHOE KIT, BRAKE This part replaces 43120-KA4-700.

06450-KY0-601

$34.26

2

SPRING, BRAKE SHOE

43151-329-000

$2.66

3

PANEL, FR. BRAKE (NOT AVAILABLE)

45100-KA3-700

Unavailable

4

DUST SEAL, BRAKE CAM

45134-250-000

$2.80

5

CAM, FR. BRAKE

45141-KA3-700

Unavailable

6

ARM, FR. BRAKE (NOT AVAILABLE)

45410-KA3-700

Unavailable

7

SPRING, BRAKE ARM RETURN (NOT AVAILABLE)

45435-KA4-700

Unavailable

8

WASHER (14MM)

90509-169-000

Unavailable

8

WASHER (14MM) This part replaces 90525-MA0-000.

90509-169-000

Unavailable

9

BOLT, FLANGE (6X25)

96000-06025-00

$2.63

9

BOLT, FLANGE (6X25)

96001-06025-00

$2.63
