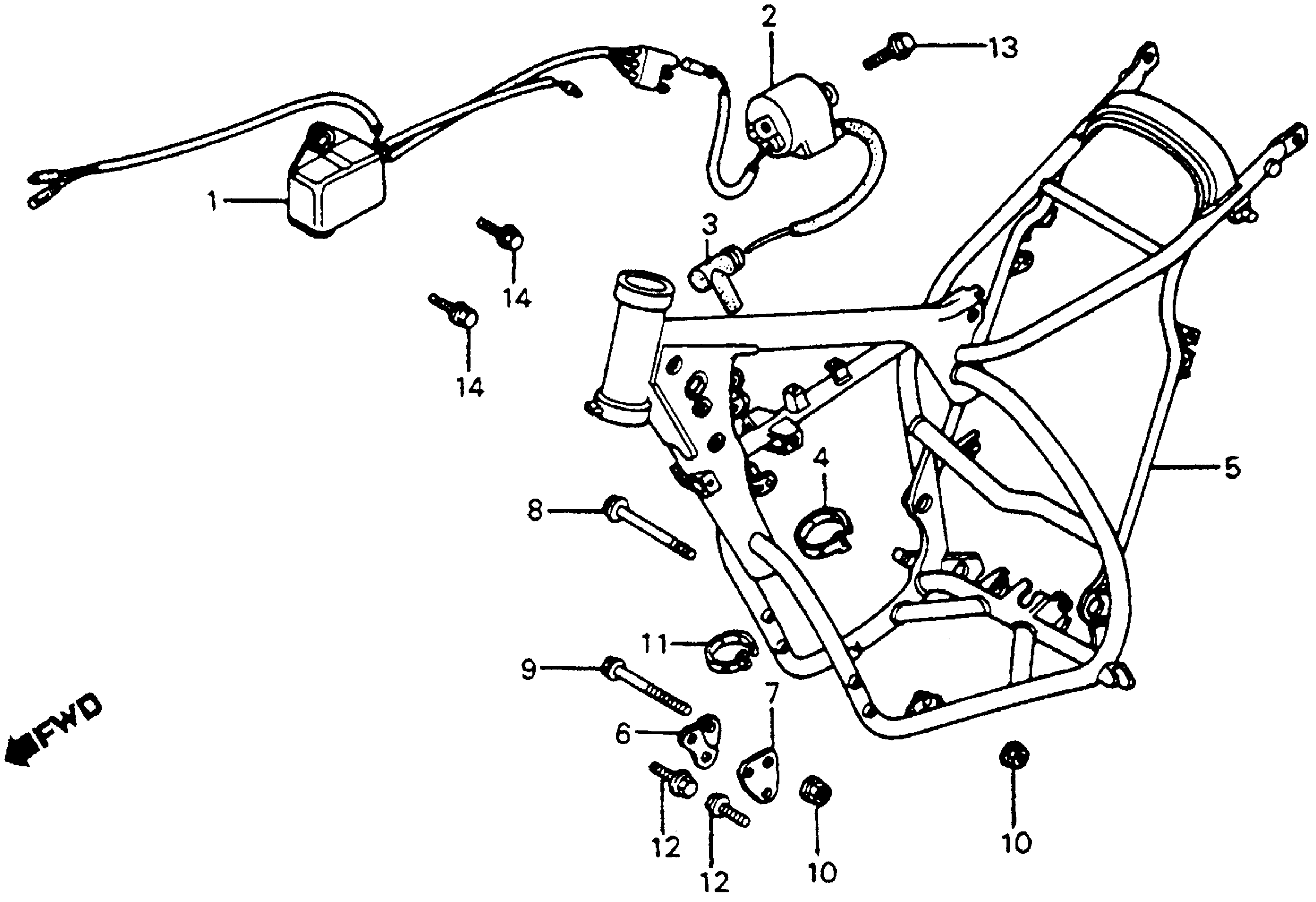

Honda CR125RA (82) MOTORCYCLE, JPN, VIN# JH2JE010-CC300001 TO JH2JE010-CC307692 FRAME + IGNITION COIL 82 Diagram

MODULE, IGNITION CONTROL (CDI) (NOT AVAILABLE) This part replaces 30400-KA3-700.

30400-KA3-711

Unavailable

MODULE, IGNITION CONTROL (CDI) (NOT AVAILABLE)

30400-KA3-711

Unavailable

COIL, IGNITION (NOT AVAILABLE)

30500-KA3-003

Unavailable

CAP ASSY., NOISE SUPPRESSOR

30700-KA5-771

$31.04

BAND B1, WIRE

32161-404-000

$2.23

FRAME *R23* (TAHITIAN RED)

50100-KA3-700ZA

Unavailable

BRACKET, R. FR. ENGINE (NOT AVAILABLE)

50352-KA3-701

Unavailable

BRACKET, L. FR. ENGINE

50353-KA3-701

Unavailable

BOLT, FLANGE (8X72) (NOT AVAILABLE)

90101-KA3-700

Unavailable

BOLT, FLANGE (8X88) (NOT AVAILABLE)

90102-KA3-700

Unavailable

NUT, FLANGE (8MM)

94050-08080

$1.49

BAND B1, WIRE

32161-404-000

$2.23

BAND B1, CABLE This part replaces 95014-61100.

32161-404-000

$2.23

BOLT, FLANGE (8X16) This part replaces 95700-08016-08.

95701-08016-08

$1.80

BOLT, FLANGE (8X16)

95701-08016-08

$1.80

BOLT, FLANGE (8X16) This part replaces 95900-08016-0B.

95701-08016-08

$1.80

BOLT, FLANGE (8X16) This part replaces 95900-08016-08.

95701-08016-08

$1.80

BOLT, FLANGE (8X16) This part replaces 96500-08016-08.

95701-08016-08

$1.80

BOLT, FLANGE (6X16) This part replaces 96000-06016-00.

96001-06016-00

$1.49

BOLT, FLANGE (6X16)

96001-06016-00

$1.49

BOLT, FLANGE (6X18) This part replaces 96000-06018-00.

96001-06018-00

$1.80

BOLT, FLANGE (6X18)

96001-06018-00

$1.80
