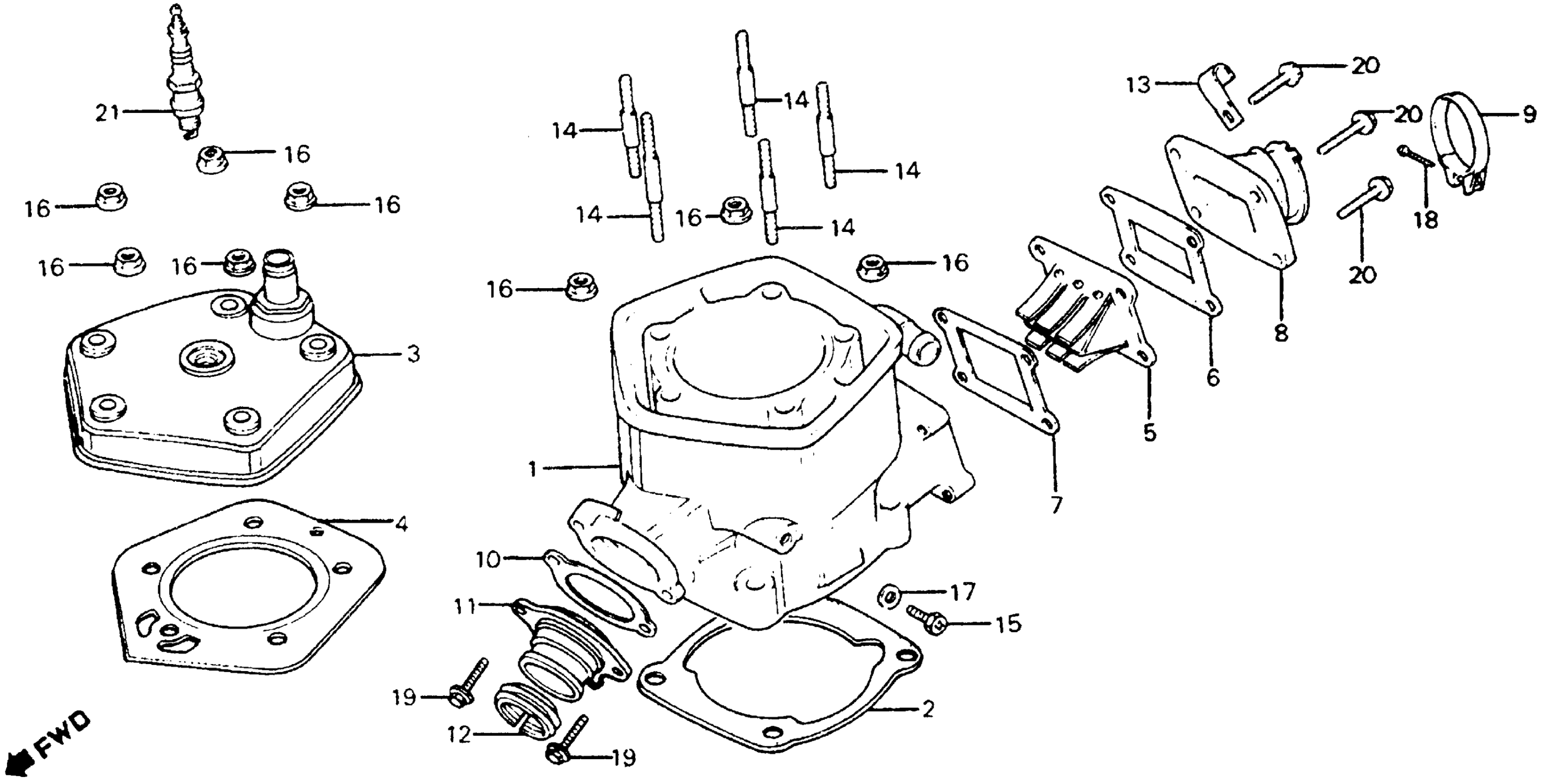

Honda CR125RA (82) MOTORCYCLE, JPN, VIN# JH2JE010-CC300001 TO JH2JE010-CC307692 CYLINDER HEAD + CYLINDER + REED VALVE 82 Diagram

CYLINDER (NOT AVAILABLE)

12100-KA3-700

Unavailable

GASKET, CYLINDER This part replaces 12191-KA3-700.

12191-444-306

$11.36

GASKET, CYLINDER This part replaces 12191-444-000.

12191-444-306

$11.36

GASKET, CYLINDER

12191-444-306

$11.36

CYLINDER HEAD (NOT AVAILABLE)

12200-KA3-700

Unavailable

GASKET, CYLINDER HEAD

12251-KA3-307

Unavailable

GASKET, CYLINDER HEAD This part replaces 12251-KA3-701.

12251-KA3-307

Unavailable

VALVE ASSY., REED (NOT AVAILABLE)

14100-KA3-701

Unavailable

GASKET A, REED VALVE This part replaces 14131-444-000.

14131-444-306

Unavailable

GASKET B, REED VALVE This part replaces 14132-444-000.

14132-444-306

Unavailable

INSULATOR, CARBURETOR (NOT AVAILABLE)

16221-KA3-000

Unavailable

BAND, INSULATOR (NOT AVAILABLE)

16223-KA3-000

Unavailable

GASKET, EX. JOINT This part replaces 18291-KA3-700.

18291-KA3-306

Unavailable

JOINT, EX. PIPE (NOT AVAILABLE)

18351-KA3-700

Unavailable

SEAL, EX. JOINT

18359-KA3-700

Unavailable

CLAMP, CABLE

32111-323-000

$3.98

BOLT, STUD (8X60) (NOT AVAILABLE)

90032-KA3-700

Unavailable

BOLT, OIL CHECK

90037-360-000

$3.26

NUT, FLANGE (8MM) This part replaces 90236-300-000.

94050-08000

$1.49

NUT, FLANGE (8MM)

94050-08000

$1.49

GASKET, FR. FORK DRAIN VALVE

90543-273-000

$2.46

SCREW, PAN (5X20)

93500-05020-0A

$1.49

BOLT, FLANGE (6X18) This part replaces 96000-06018-00.

96001-06018-00

$1.80

BOLT, FLANGE (6X18)

96001-06018-00

$1.80

BOLT, FLANGE (6X22) This part replaces 96000-06022-00.

96001-06022-00

$1.49

BOLT, FLANGE (6X22)

96001-06022-00

$1.49

SPARK PLUG (BR9EG) (NGK) This part replaces 98079-59649.

98079-59679

$5.80

SPARK PLUG (W27ESR-V) (DENSO)

98079-59659

$2.54

SPARK PLUG (BR9EG) (NGK) This part replaces 98079-59669.

98079-59679

$5.80

SPARK PLUG (BR9EG) (NGK)

98079-59679

$5.80
