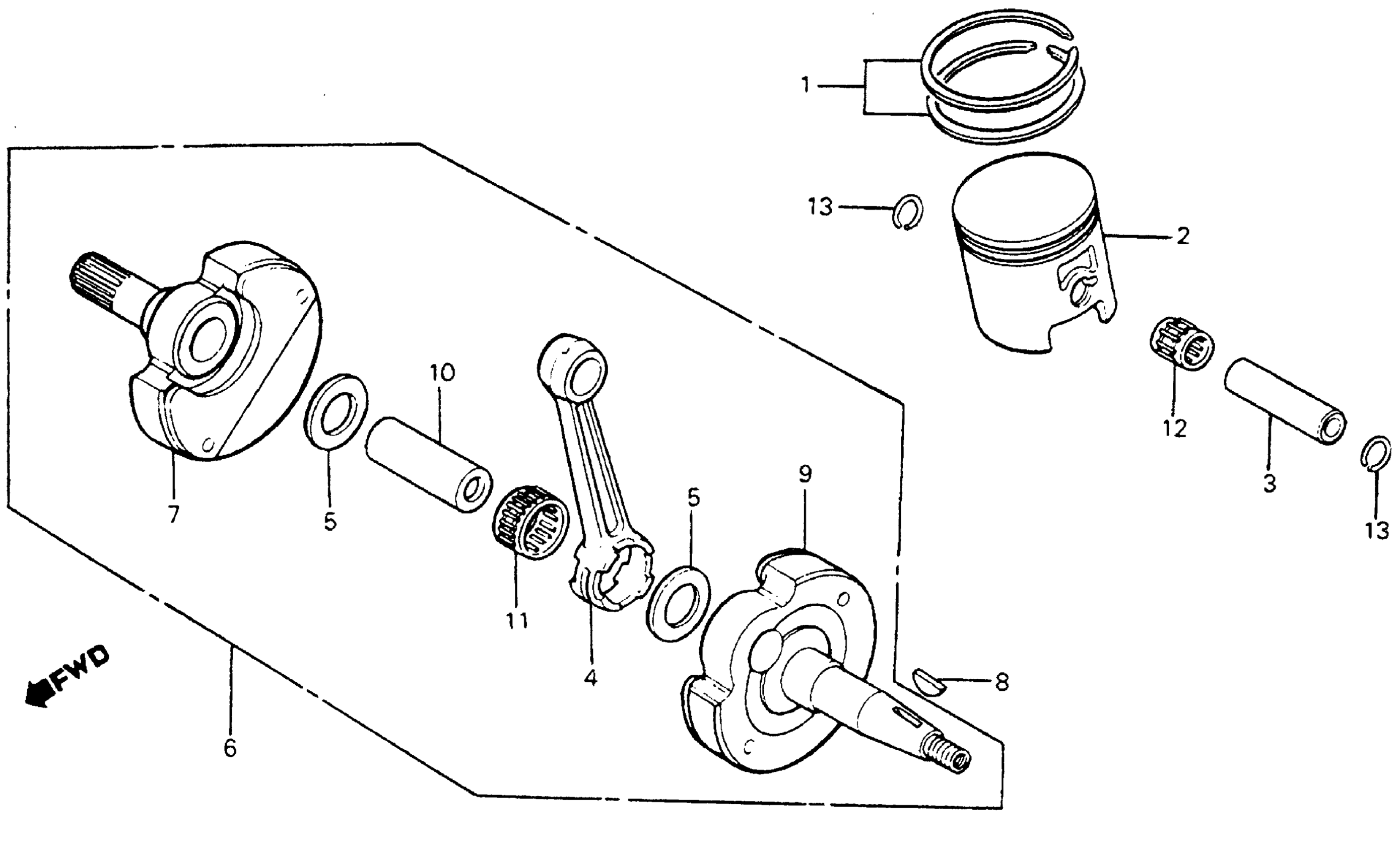

Honda CR125RA (82) MOTORCYCLE, JPN, VIN# JH2JE010-CC300001 TO JH2JE010-CC307692 CRANKSHAFT + PISTON 81-82 Diagram

#

Description
Price

1

RING SET, PISTON (STD)

13011-466-305

Unavailable

1

RING SET, PISTON (OS 0.25) | (Optional).

13012-466-305

Unavailable

1

RING SET, PISTON (OS 0.50) | (Optional).

13013-466-305

Unavailable

2

PISTON (STD) (NOT AVAILABLE) This part replaces 13101-KA3-700.

13101-KA3-740

Unavailable

2

PISTON (STD) (NOT AVAILABLE) This part replaces 13101-KA3-710.

13101-KA3-740

Unavailable

2

PISTON (OS 0.25) | (Optional). This part replaces 13102-KA3-700.

13102-KA3-740

$67.63

2

PISTON (OS 0.25) | (Optional).

13102-KA3-740

$67.63

2

PISTON (OS 0.50) | (Optional). This part replaces 13103-KA3-700.

13103-KA3-740

Unavailable

3

PIN, PISTON

13111-444-000

Unavailable

4

ROD, CONNECTING (NOT AVAILABLE) This part replaces 13201-KA3-700.

13201-KA3-740

$77.21

4

ROD, CONNECTING (NOT AVAILABLE) This part replaces 13201-KA3-710.

13201-KA3-740

$77.21

4

ROD, CONNECTING (NOT AVAILABLE)

13201-KA3-740

$77.21

5

PLATE, CONNECTING ROD SIDE This part replaces 13202-KA3-003.

13202-KR1-760

$8.77

5

PLATE, CONNECTING ROD SIDE

13202-KR1-760

$8.77

6

CRANKSHAFT

13300-KA3-700

Unavailable

7

CRANKSHAFT, R. (NOT AVAILABLE)

13330-KA3-700

Unavailable

8

KEY, SPECIAL WOODRUFF (25X14)

13331-360-000

$3.47

9

CRANKSHAFT, L.

13340-KA3-700

Unavailable

10

PIN, CRANK (1)

13391-KA3-700

$48.80

10

PIN, CRANK (2) (NOT AVAILABLE)

13392-KA3-700

Unavailable

10

PIN, CRANK (3) (NOT AVAILABLE)

13393-KA3-700

Unavailable

11

BEARING, NEEDLE This part replaces 91004-KA3-003.

91004-KS3-901

Unavailable

11

BEARING, NEEDLE This part replaces 91004-KA3-004.

91004-KS3-901

Unavailable

11

BEARING, NEEDLE

91004-KS3-901

Unavailable

11

BEARING, NEEDLE This part replaces 91005-KA3-003.

91005-KS3-901

Unavailable

11

BEARING, NEEDLE This part replaces 91005-KA3-004.

91005-KS3-901

Unavailable

11

BEARING, NEEDLE

91005-KS3-901

Unavailable

11

BEARING, CONNECTING ROD (WHITE) (TOYO)

91006-KA3-003

$19.15

11

BEARING, CONNECTING ROD (WHITE) (TOYO) This part replaces 91006-KA3-004.

91006-KA3-003

$19.15

12

BEARING, CONNECTING ROD SMALL END (-0.002/-0.004) (KOYO)

91008-444-004

Unavailable

13

CLIP, PISTON PIN (14MM)

94601-14000

$1.49
