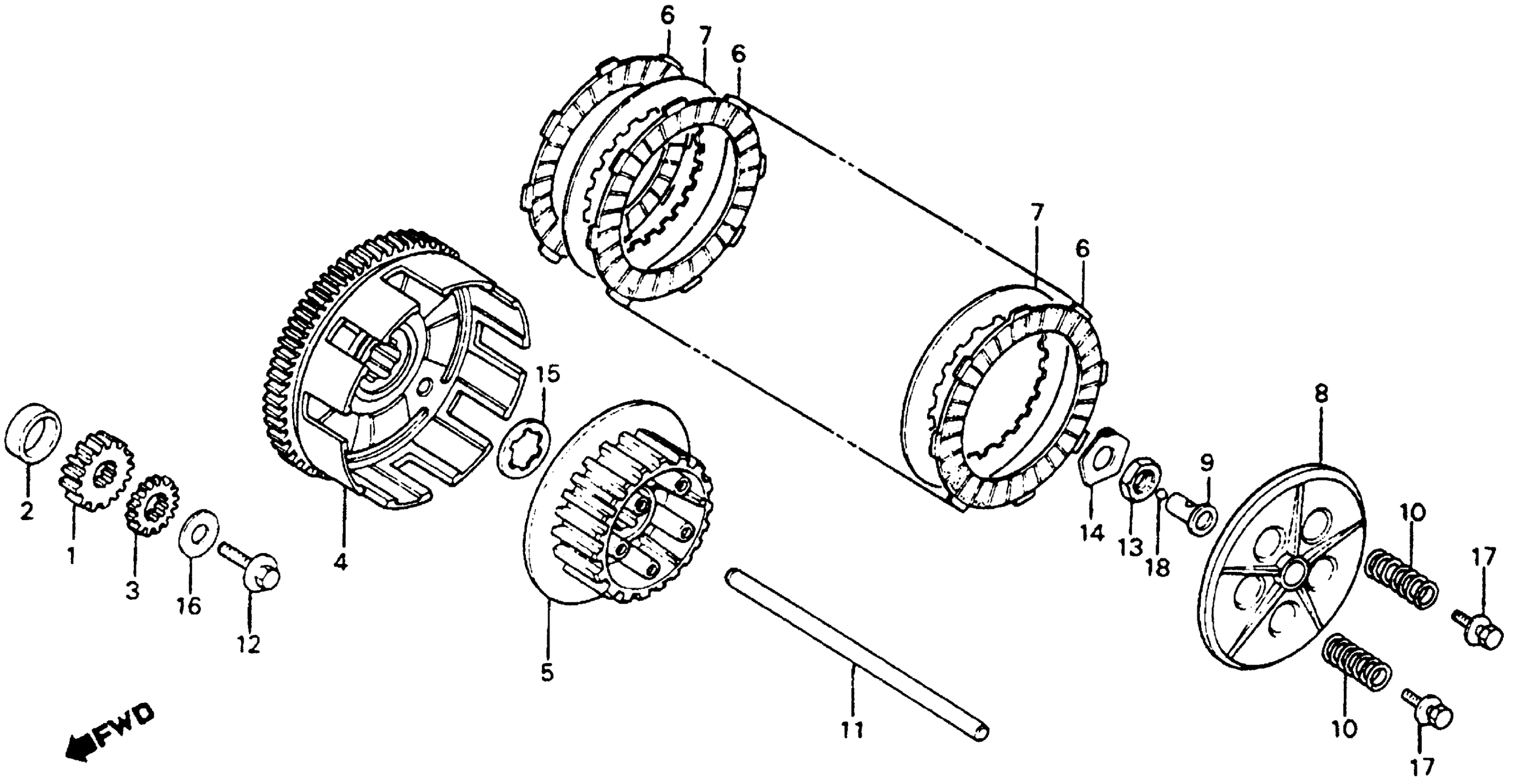

Honda CR125RA (82) MOTORCYCLE, JPN, VIN# JH2JE010-CC300001 TO JH2JE010-CC307692 CLUTCH 82 Diagram

#

Description
Price

1

GEAR, PRIMARY DRIVE (16T)

13615-KA3-700

Unavailable

2

COLLAR, DRIVE GEAR (NOT AVAILABLE)

13617-466-000

Unavailable

3

GEAR, PUMP DRIVE

19228-KA3-010

Unavailable

4

CLUTCH (OUTER) (NOT AVAILABLE) This part replaces 22100-KA3-700.

22100-KA3-701

Unavailable

4

CLUTCH (OUTER) (NOT AVAILABLE)

22100-KA3-701

Unavailable

5

CENTER, CLUTCH (NOT AVAILABLE)

22120-KA3-700

Unavailable

6

DISK, CLUTCH FRICTION This part replaces 22201-GF6-000.

22201-166-000

$17.44

6

DISK, CLUTCH FRICTION This part replaces 22201-KA3-700.

22201-166-000

$17.44

6

DISK, CLUTCH FRICTION

22201-166-000

$17.44

7

PLATE B, CLUTCH (NOT AVAILABLE)

22321-KA3-700

Unavailable

8

PLATE, CLUTCH PRESSURE (NOT AVAILABLE)

22351-KA3-700

Unavailable

9

PIECE, CLUTCH LIFTER

22352-KA4-000

Unavailable

10

SPRING, CLUTCH

22401-430-000

Unavailable

11

ROD, LIFTER (NOT AVAILABLE)

22850-KA3-000

Unavailable

12

BOLT, SPECIAL (10X25)

90013-430-000

$6.46

13

NUT, LOCK (18MM)

90235-428-000

Unavailable

13

NUT, LOCK (18MM) This part replaces 90235-444-000.

90235-428-000

Unavailable

14

WASHER, LOCK (18MM) This part replaces 90411-KA3-000.

90411-KA3-760

Unavailable

14

WASHER, LOCK (18MM)

90411-KA3-760

Unavailable

15

WASHER, SPLINE (22MM) (NOT AVAILABLE)

90456-KA3-000

Unavailable

16

WASHER, SPRING (10MM)

90481-430-000

$6.19

17

BOLT-WASHER (6X16)

93404-06016-08

$1.55

17

BOLT-WASHER (6X16) This part replaces 93494-06016-08.

93404-06016-08

$1.55

18

BALL, STEEL (#9) (9/32)

96211-09000

$1.49
