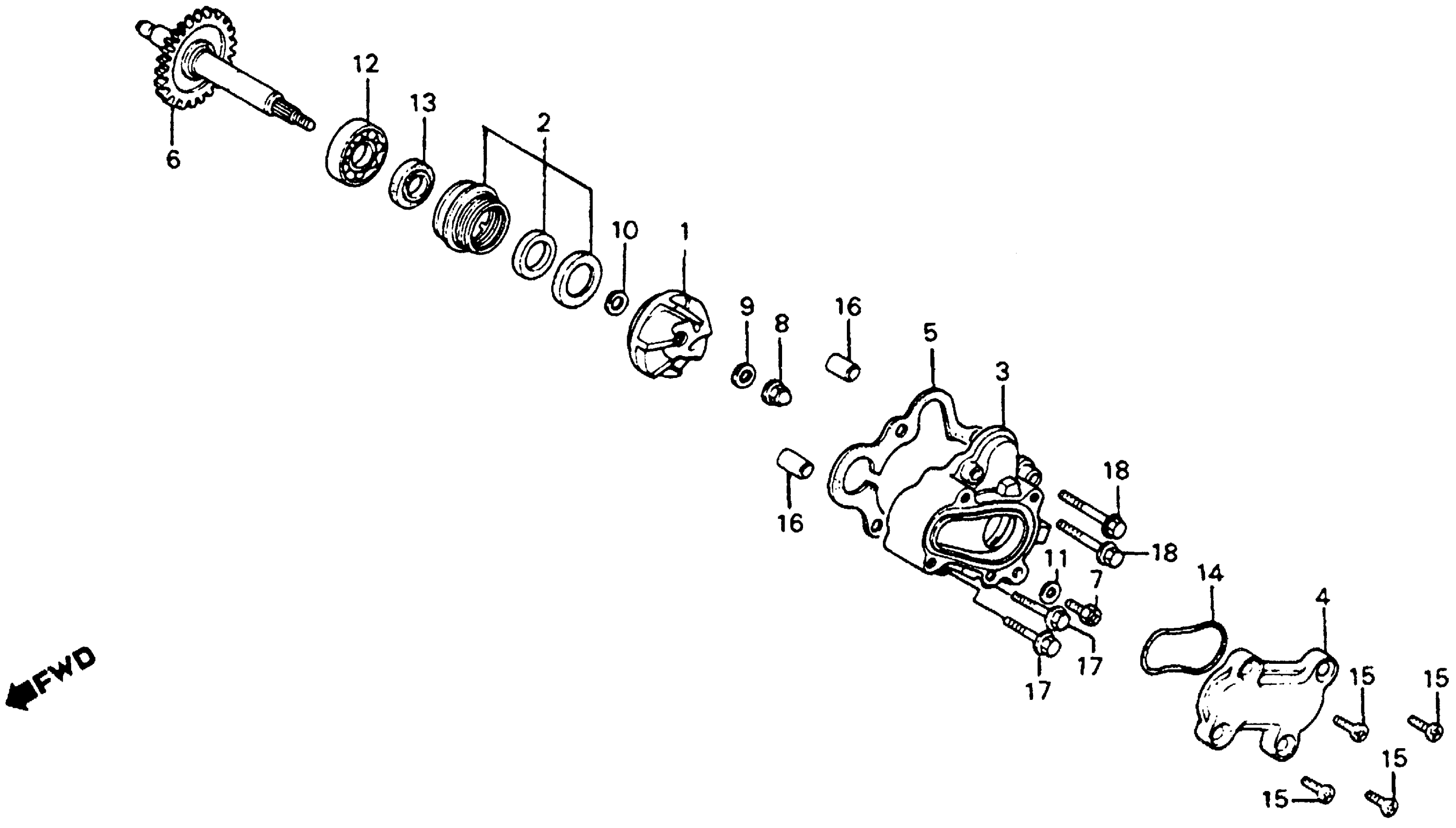

Honda CR125RA (81) ELSINORE, JPN, VIN# JH2JE010-BC200032 TO JH2JE010-BC206950 WATER PUMP 81 Diagram

#

Description
Price

1

IMPELLER, WATER PUMP

19215-KA4-000

Unavailable

2

SEAL, MECHANICAL This part replaces 19217-657-003.

19217-657-023

$53.27

2

SEAL, MECHANICAL This part replaces 19217-657-013.

19217-657-023

$53.27

2

SEAL, MECHANICAL

19217-657-023

$53.27

3

COVER, WATER PUMP (NOT AVAILABLE)

19221-KA4-300

Unavailable

4

CAP, WATER PUMP (NOT AVAILABLE)

19222-KA4-300

Unavailable

5

GASKET, WATER PUMP COVER This part replaces 19229-KA4-000.

19229-KA4-307

Unavailable

5

GASKET, WATER PUMP COVER

19229-KA4-307

Unavailable

5

GASKET, WATER PUMP COVER This part replaces 19229-KA4-710.

19229-KA4-307

Unavailable

6

SHAFT, WATER PUMP (NOT AVAILABLE)

19230-KA3-000

Unavailable

7

BOLT, OIL CHECK

90037-360-000

$3.26

8

NUT, CAP (6MM)

90201-415-000

$2.05

9

WASHER, SEALING (6MM)

90441-706-000

$1.49

10

WASHER (8X13)

90454-KA4-000

$3.08

11

GASKET, FR. FORK DRAIN VALVE

90543-273-000

$2.46

12

BEARING, RADIAL BALL (12X28X7) (NTN)

91001-KA4-003

$17.08

12

BEARING, RADIAL BALL (12X28X7) (NTN) This part replaces 91001-KA4-004.

91001-KA4-003

$17.08

13

OIL SEAL (12X22X5) This part replaces 91201-148-003.

91201-965-000

$4.06

13

OIL SEAL (12X22X5)

91201-965-000

$4.06

14

O-RING (2MM) (NOT AVAILABLE)

91302-KA4-003

Unavailable

15

SCREW, OVAL (5X16)

93700-05016-0A

$1.49

15

SCREW, OVAL (5X16) This part replaces 93700-05016-1A.

93700-05016-0A

$1.49

16

PIN, DOWEL (8X14)

94301-08140

$2.25

17

BOLT, FLANGE (6X25)

96000-06025-00

$2.00

17

BOLT, FLANGE (6X25)

96001-06025-00

$2.00

18

BOLT, FLANGE (6X32) This part replaces 96000-06032-00.

96001-06032-00

$1.49

18

BOLT, FLANGE (6X32)

96001-06032-00

$1.49
