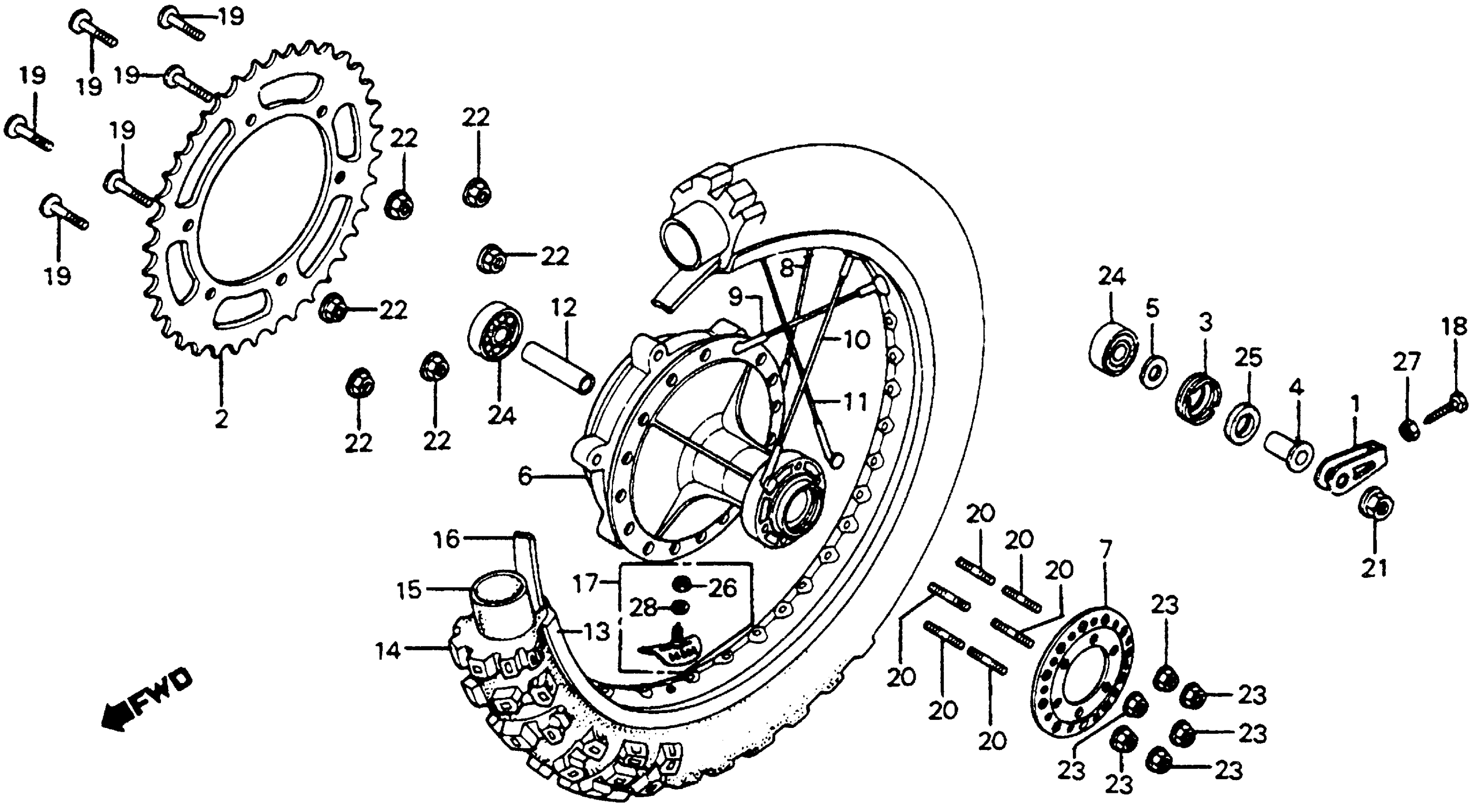

Honda CR125RA (81) ELSINORE, JPN, VIN# JH2JE010-BC200032 TO JH2JE010-BC206950 REAR WHEEL 81 Diagram

#

Description
Price

1

ADJUSTER, CHAIN

40543-KA3-010

Unavailable

2

SPROCKET, FINAL DRIVEN (51T) (STEEL) (NOT AVAILABLE) This part replaces 41201-444-000.

41201-444-810

Unavailable

2

SPROCKET, FINAL DRIVEN (49T) (ALUMINUM) (NOT AVAILABLE) | (Optional).

41202-444-810

Unavailable

2

SPROCKET, FINAL DRIVEN (53T) (ALUMINUM) (NOT AVAILABLE) | (Optional).

41203-444-810

Unavailable

3

RETAINER, RR. WHEEL BEARING (NOT AVAILABLE)

41231-444-000

Unavailable

4

COLLAR, RR. WHEEL SIDE (NOT AVAILABLE)

42311-KA3-000

Unavailable

5

WASHER, PLAIN (17MM)

42312-444-000

Unavailable

6

HUB, RR. WHEEL (NOT AVAILABLE)

42601-KA3-000

Unavailable

7

FLANGE, RR. SPOKE (NOT AVAILABLE)

42604-430-010

Unavailable

8

SPOKE ASSY. A, RR. (NOT AVAILABLE)

42605-444-305

Unavailable

9

SPOKE ASSY. B, RR. (NOT AVAILABLE)

42606-444-305

Unavailable

10

SPOKE ASSY. C, RR. (NOT AVAILABLE)

42607-444-305

Unavailable

11

SPOKE ASSY. D, RR. (NOT AVAILABLE)

42608-444-305

Unavailable

12

COLLAR, RR. WHEEL DISTANCE (NOT AVAILABLE)

42620-444-000

Unavailable

13

RIM, RR. WHEEL (NOT AVAILABLE)

42701-444-003

Unavailable

14

TIRE, RR. (4.00-18) (BS) (NOT AVAILABLE)

42711-KA3-003

Unavailable

15

TUBE, TIRE This part replaces 08400-30000.

42712-KT1-673

$37.60

15

TUBE, TIRE This part replaces 08400-34001.

42712-KT1-673

$37.60

15

TUBE, TIRE This part replaces 42712-KA3-711.

42712-KT1-673

$37.60

15

TUBE, TIRE This part replaces 42712-KA5-681.

42712-KT1-673

$37.60

15

TUBE, TIRE This part replaces 42712-KS7-003.

42712-KT1-673

$37.60

15

TUBE, TIRE This part replaces 42712-KT1-671.

42712-KT1-673

$37.60

15

TUBE, TIRE This part replaces 42712-300-000.

42712-KT1-673

$37.60

15

TUBE, TIRE This part replaces 42712-300-003.

42712-KT1-673

$37.60

15

TUBE, TIRE This part replaces 42712-310-004.

42712-KT1-673

$37.60

15

TUBE, TIRE This part replaces 42712-312-003.

42712-KT1-673

$37.60

15

TUBE, TIRE This part replaces 42712-340-006.

42712-KT1-673

$37.60

15

TUBE, TIRE This part replaces 42712-374-003.

42712-KT1-673

$37.60

15

TUBE, TIRE This part replaces 42712-400-003.

42712-KT1-673

$37.60

15

TUBE, TIRE This part replaces 42712-425-003.

42712-KT1-673

$37.60

15

TUBE, TIRE This part replaces 42712-430-701.

42712-KT1-673

$37.60

15

TUBE, TIRE This part replaces 42712-435-003.

42712-KT1-673

$37.60

15

TUBE, TIRE This part replaces 42712-446-003.

42712-KT1-673

$37.60

15

TUBE, TIRE (100/100-18) (DUNLOP)

44712-300-004

$65.43

16

FLAP, TIRE (1.40/1.60-18) (BS) This part replaces 42713-268-003.

42713-304-003

$6.69

17

STOPPER, BEAD (1.85)

42715-KA2-680

$32.27

17

STOPPER, BEAD (1.85) This part replaces 42715-444-000.

42715-KA2-680

$32.27

18

BOLT, CHAIN ADJUSTING (NOT AVAILABLE)

90119-KA4-000

Unavailable

19

SCREW, FLAT (8X31)

90125-KA4-000

$3.08

20

BOLT, STUD (6X28)

90135-107-720

$2.56

21

NUT, AXLE (16MM)

90305-MA0-003

$7.31

22

NUT, HEX. (8MM)

90309-357-000

$3.40

23

NUT, DRIVEN SPROCKET (TOKAI)

90352-122-003

$4.39

24

BEARING, RADIAL BALL (6203) (NIPPON SEIKO) (NOT AVAILABLE) This part replaces 90912-444-004.

90912-444-005

Unavailable

24

BEARING, RADIAL BALL (6203) (NIPPON SEIKO) (NOT AVAILABLE)

90912-444-005

Unavailable

25

DUST SEAL (26X40X7) (NOT AVAILABLE)

91257-444-003

Unavailable

26

NUT, HEX. (8MM)

94001-08000-0S

$1.49

27

NUT, HEX. (8MM)

94002-08000-0S

$1.49

27

NUT, HEX. (8MM) This part replaces 94002-08080-0S.

94002-08000-0S

$1.49

28

WASHER, SPRING (8MM)

94111-08000

$1.49
