- CR125RA (81) ELSINORE, JPN, VIN# JH2JE010-BC200032 TO JH2JE010-BC206950
REAR BRAKE PANEL 81

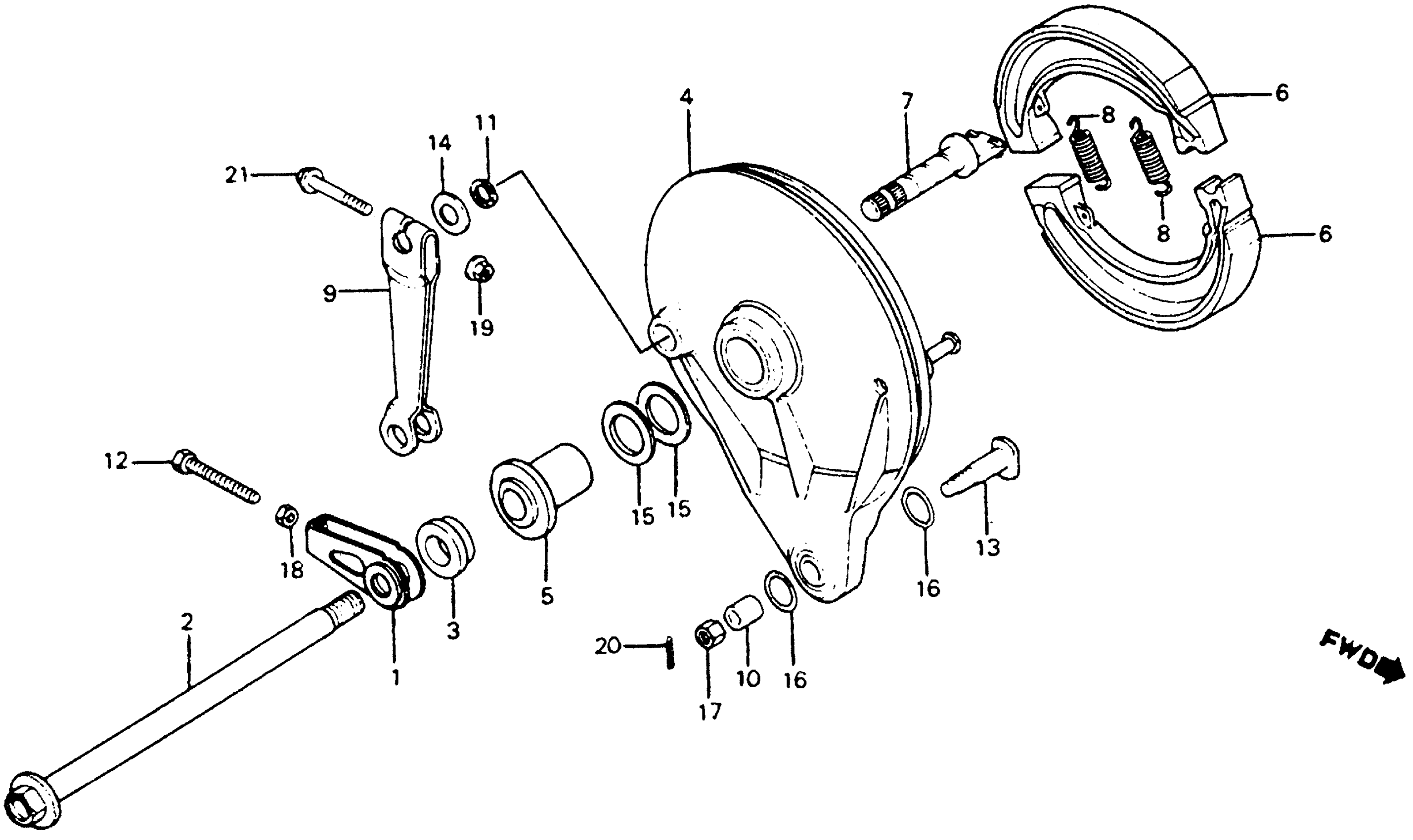

Honda CR125RA (81) ELSINORE, JPN, VIN# JH2JE010-BC200032 TO JH2JE010-BC206950 REAR BRAKE PANEL 81 Diagram
#
Description
Price
NI
SHOE KIT, BRAKE This part replaces 06430-444-000.
06450-KY0-601
Unavailable
NI
SHOE KIT, BRAKE This part replaces 06430-444-405.
06450-KY0-601
Unavailable
NI
SHOE KIT, BRAKE
06450-KY0-601
Unavailable
NI
SHOE KIT, BRAKE This part replaces 431A2-444-000.
06450-KY0-601
Unavailable
1
ADJUSTER, CHAIN
40543-KA3-010
Unavailable
2
AXLE, RR. WHEEL (NOT AVAILABLE)
42301-KA3-000
Unavailable
3
COLLAR, RR. PANEL SIDE
42313-KA3-000
Unavailable
4
PANEL, RR. BRAKE (NOT AVAILABLE)
43100-444-000
Unavailable
5
BUSH, RR. BRAKE PANEL
43111-444-000
Unavailable
6
SHOE KIT, BRAKE
06450-KY0-601
Unavailable
6
SHOE KIT, BRAKE This part replaces 43120-444-000.
06450-KY0-601
Unavailable
7
CAM, RR. BRAKE
43141-ME4-000
Unavailable
7
CAM, RR. BRAKE This part replaces 43141-399-010.
43141-ME4-000
Unavailable
9
ARM, RR. BRAKE (NOT AVAILABLE)
43410-KA3-000
Unavailable
10
COLLAR, RR. STOPPER ARM DISTANCE (NOT AVAILABLE)
43433-444-000
Unavailable
12
BOLT, CHAIN ADJUSTING (NOT AVAILABLE)
90119-KA4-000
Unavailable
13
BOLT, RR. BRAKE PANEL STOPPER (NOT AVAILABLE)
90127-444-000
Unavailable
14
WASHER (14MM)
90509-169-000
Unavailable
14
WASHER (14MM) This part replaces 90525-MA0-000.
90509-169-000
Unavailable
15
DUST SEAL (23X27X3) (NOT AVAILABLE)
91258-444-003
Unavailable
16
O-RING (20X1.8) (NOT AVAILABLE)
91302-430-003
Unavailable
