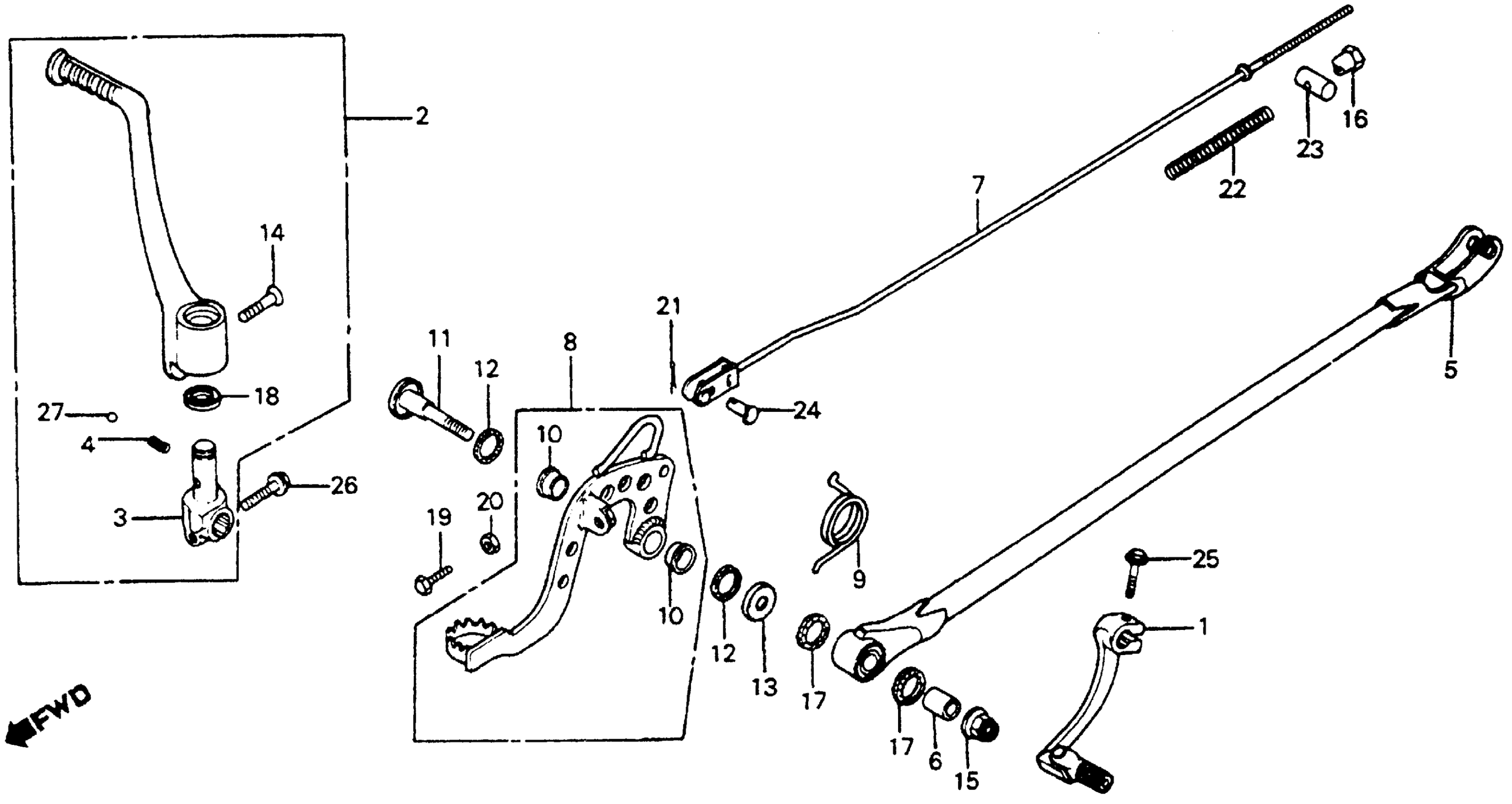

Honda CR125RA (81) ELSINORE, JPN, VIN# JH2JE010-BC200032 TO JH2JE010-BC206950 GEARSHIFT PEDAL + KICK STARTER ARM + BRAKE PEDAL 81 Diagram

PEDAL, GEARSHIFT (NOT AVAILABLE) This part replaces 24700-KA3-000.

24700-KA3-700

Unavailable

ARM ASSY., KICK STARTER (NOT AVAILABLE)

28300-KA3-000

Unavailable

JOINT, KICK ARM (NOT AVAILABLE)

28302-KA3-000

Unavailable

SPRING, KICK STARTER STOPPER

28333-124-000

$2.26

ARM, RR. BRAKE STOPPER *R23* (TAHITIAN RED) (NOT AVAILABLE)

43431-KA3-000ZA

Unavailable

COLLAR, RR. STOPPER ARM DISTANCE (NOT AVAILABLE)

43433-444-000

Unavailable

ROD, RR. BRAKE (NOT AVAILABLE)

43451-KA3-000

Unavailable

PEDAL, BRAKE (NOT AVAILABLE)

46510-KA3-000

Unavailable

SPRING, BRAKE PEDAL (NOT AVAILABLE)

46511-KA3-000

Unavailable

BUSHING, PEDAL

46512-360-300

$6.87

SHAFT, BRAKE PEDAL PIVOT (NOT AVAILABLE)

46513-KA3-000

Unavailable

DUST SEAL, BRAKE PEDAL

46516-430-000

Unavailable

WASHER, BRAKE PEDAL PIVOT (NOT AVAILABLE)

46518-444-000

Unavailable

BOLT, KICK ARM

90101-329-000

$3.67

NUT, AXLE (10MM)

90304-GA6-003

$2.89

NUT, BRAKE ADJUSTING (NOT AVAILABLE)

90339-430-000

Unavailable

O-RING (20X1.8) (NOT AVAILABLE)

91302-430-003

Unavailable

DUST, SEAL (19X25X3) (NOT AVAILABLE)

91303-KA4-003

Unavailable

BOLT, HEX. (6X28) (NOT AVAILABLE) This part replaces 92028-06028.

92028-06028-0A

Unavailable

NUT, HEX. (6MM) This part replaces 94002-06000.

94002-06000-0S

$1.49

NUT, HEX. (6MM)

94002-06000-0S

$1.49

PIN, SPLIT (1.6X12)

94201-16120

$1.49

SPRING A, BRAKE ROD

95014-73100

$1.49

JOINT B, BRAKE ARM

95015-32001

$1.49

PIN B, BRAKE ROD JOINT

95015-52000

$2.03

BOLT, FLANGE (6X22) This part replaces 95700-06022-08.

95701-06022-08

$1.72

BOLT, FLANGE (6X22)

95701-06022-08

$1.72

BOLT, FLANGE (8X25) This part replaces 95700-08025-08.

95701-08025-08

$1.49

BOLT, FLANGE (8X25)

95701-08025-08

$1.49

BALL, STEEL (#8) (1/4)

96211-08000

$1.49
