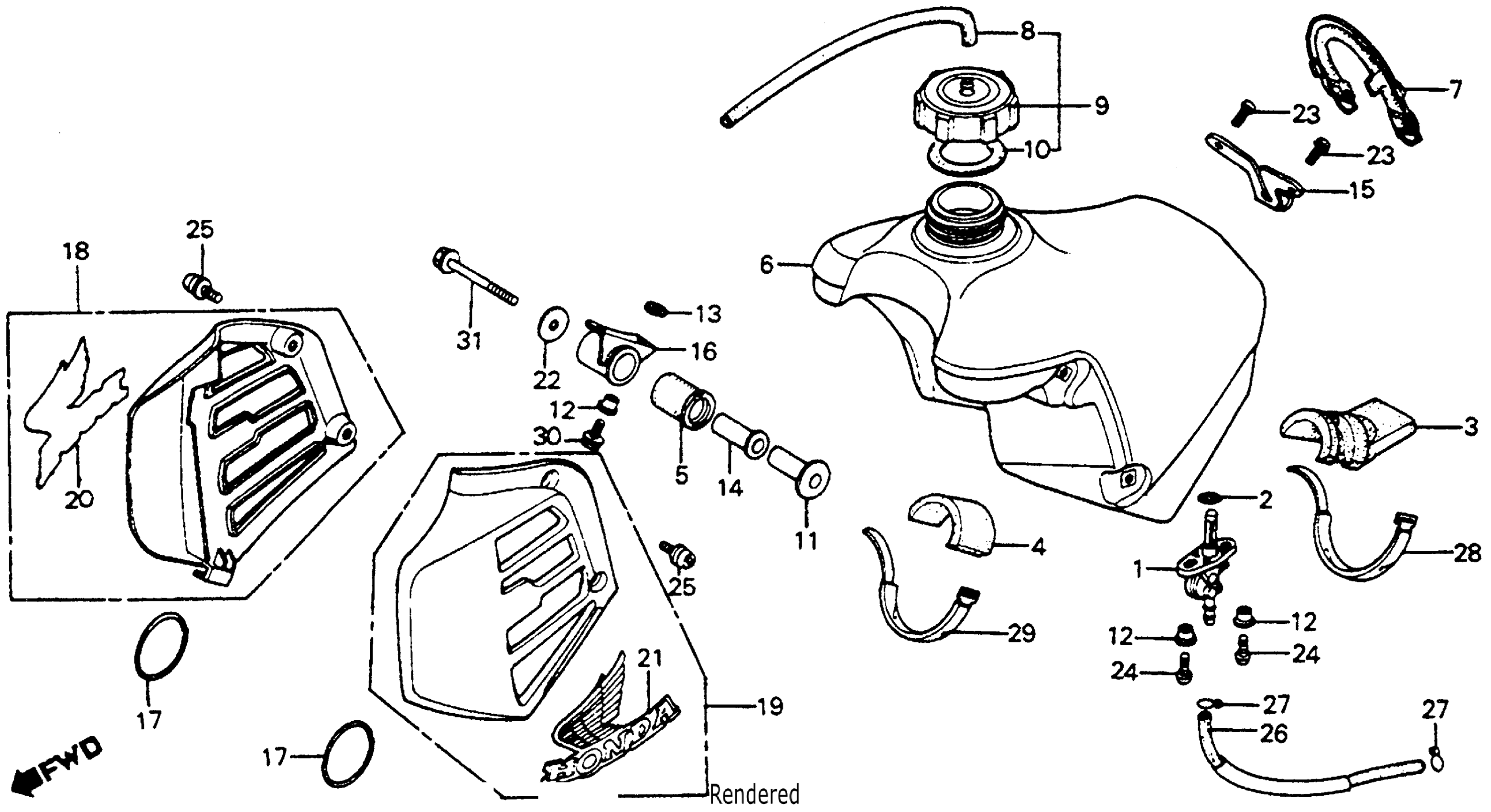

Honda CR125RA (81) ELSINORE, JPN, VIN# JH2JE010-BC200032 TO JH2JE010-BC206950 FUEL TANK + RADIATOR SHROUD 81 Diagram

#

Description
Price

1

PETCOCK ASSY. This part replaces 16950-KA3-005.

16950-ML3-911

$51.08

1

PETCOCK ASSY. This part replaces 16950-KA3-730.

16950-ML3-911

$51.08

1

PETCOCK ASSY. This part replaces 16950-KA3-731.

16950-ML3-911

$51.08

1

PETCOCK ASSY. This part replaces 16950-KA3-732.

16950-ML3-911

$51.08

1

PETCOCK ASSY.

16950-ML3-911

$51.08

1

PETCOCK ASSY. This part replaces 16950-467-005.

16950-ML3-911

$51.08

2

O-RING (11.8X3.55)

16997-467-000

$2.11

3

RUBBER A, FUEL TANK SETTING (NOT AVAILABLE)

17504-KA4-000

Unavailable

4

RUBBER B, FUEL TANK MOUNT (NOT AVAILABLE)

17506-357-000

Unavailable

5

RUBBER, FUEL TANK SETTING (NOT AVAILABLE)

17508-KA4-000

Unavailable

6

TANK, FUEL (NOT AVAILABLE)

17510-KA3-000

Unavailable

7

BAND, RR. FUEL TANK (NOT AVAILABLE)

17516-KA4-000

Unavailable

8

TUBE, FUEL CAP BREATHER

17521-429-000

$6.98

9

CAP ASSY., FUEL TANK (NOT AVAILABLE) This part replaces 17620-KA4-000.

17620-KA4-710

Unavailable

9

CAP ASSY., FUEL TANK (NOT AVAILABLE)

17620-KA4-710

Unavailable

10

GASKET, FUEL TANK CAP

17624-KA4-000

$5.94

11

COLLAR, FR. FUEL TANK MOUNTING (NOT AVAILABLE)

17625-KA4-000

Unavailable

12

COLLAR, FUEL TANK SETTING

17626-467-000

$4.76

13

RUBBER, FR. FUEL TANK

17627-467-000

$2.39

14

COLLAR, SLIDER (NOT AVAILABLE)

17628-KA4-000

Unavailable

15

BRACKET, RR. FUEL TANK (NOT AVAILABLE)

17629-KA4-000

Unavailable

16

BRACKET, L. FR. TANK (NOT AVAILABLE)

17634-KA4-000

Unavailable

17

BAND, RADIATOR SHROUD (NOT AVAILABLE)

19053-KA4-000

Unavailable

18

SHROUD SUB-ASSY., R. RADIATOR (NOT AVAILABLE)

19071-KA3-000

Unavailable

19

SHROUD SUB-ASSY., L. RADIATOR (NOT AVAILABLE)

19072-KA3-000

Unavailable

20

EMBLEM, R. RADIATOR SHROUD (NOT AVAILABLE)

87126-KA4-000

Unavailable

21

EMBLEM, L. RADIATOR SHROUD (NOT AVAILABLE)

87127-KA4-000

Unavailable

22

WASHER, SEAT (NOT AVAILABLE)

90501-040-000

Unavailable

23

SCREW, PAN (6X12)

93500-06012-0H

$1.49

23

SCREW, PAN (6X12) This part replaces 93500-06012-08.

93500-06012-0H

$1.49

24

SCREW, PAN (6X16)

93500-06016-0H

$1.49

25

SCREW-WASHER (6X16)

93891-06016-08

$1.49

26

BULK HOSE, FUEL (7.5X8000) (7.3X170)

95001-75008-60M

$103.82

27

CLIP, TUBE (B12)

95002-02120

$2.00

28

BAND A3, WIRE

95014-61300

$1.97

29

BAND B3, CABLE HARNESS

95014-62300

$2.25

30

BOLT, FLANGE (6X16) This part replaces 95700-06016-08.

95701-06016-08

$1.49

30

BOLT, FLANGE (6X16)

95701-06016-08

$1.49

31

BOLT, FLANGE (6X45) This part replaces 95700-06045-08.

95701-06045-08

$2.06

31

BOLT, FLANGE (6X45)

95701-06045-08

$2.06
