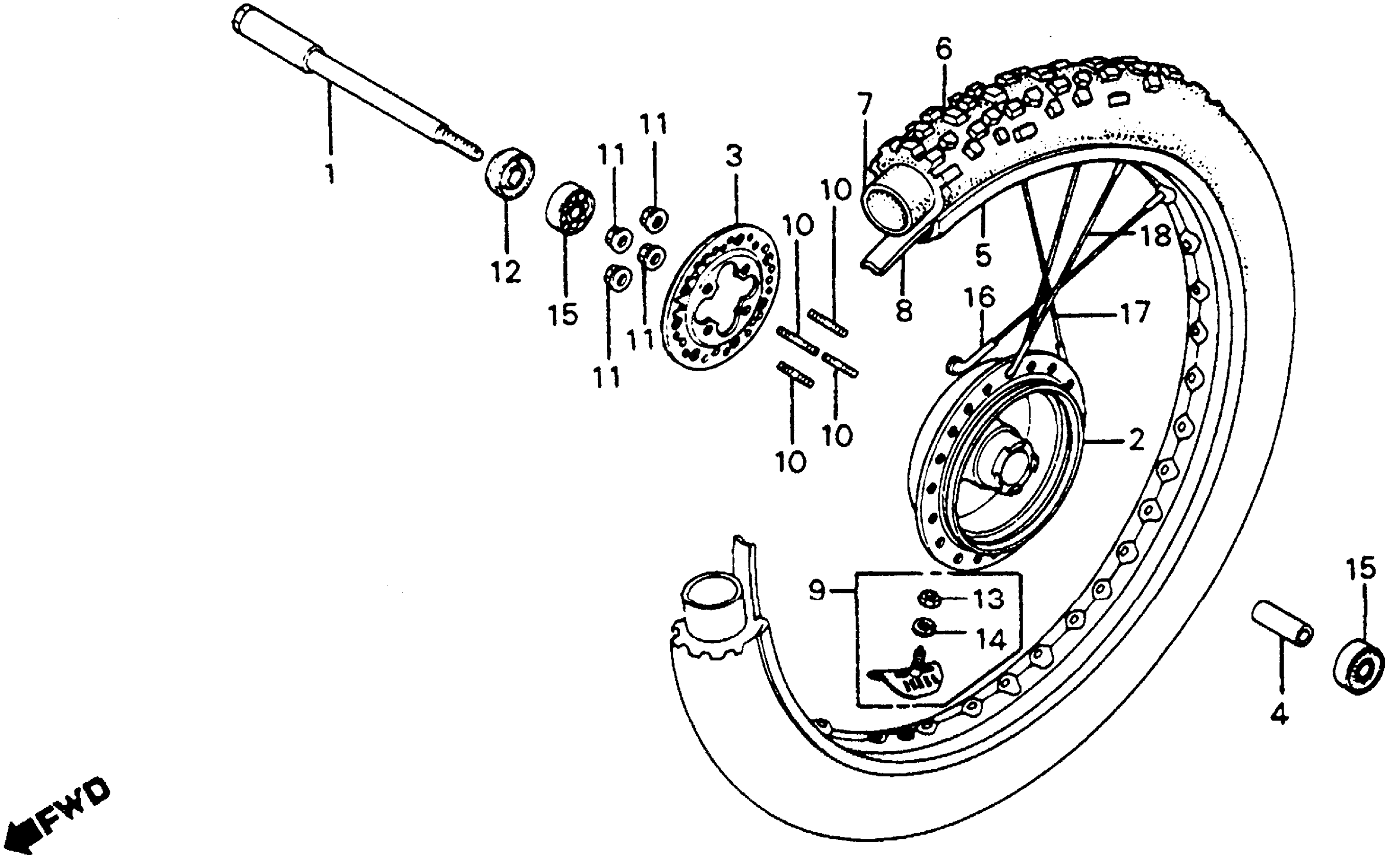

Honda CR125RA (81) ELSINORE, JPN, VIN# JH2JE010-BC200032 TO JH2JE010-BC206950 FRONT WHEEL 81 Diagram

AXLE, FR. WHEEL

44301-KA3-000

Unavailable

HUB, FR. WHEEL (NOT AVAILABLE)

44601-430-000

Unavailable

FLANGE, FR. SPOKE

44604-430-010

Unavailable

COLLAR, FR. WHEEL DISTANCE

44620-428-000

Unavailable

COLLAR, FR. WHEEL DISTANCE This part replaces 44620-430-000.

44620-428-000

Unavailable

RIM, FR. WHEEL (NOT AVAILABLE)

44701-430-003

Unavailable

TIRE, FR. (3.00-21) (4PR) (BS) (NOT AVAILABLE)

44711-KA4-003

Unavailable

TUBE, TIRE (2.75/3.00-21) (INOUE) This part replaces 44712-340-003.

44712-446-631

Unavailable

TUBE, TIRE (2.75/3.00-21) (INOUE)

44712-446-631

Unavailable

FLAP, TIRE (1.60-21) (BS) (NOT AVAILABLE)

44713-340-003

Unavailable

STOPPER, BEAD (1.60) (NOT AVAILABLE)

44715-444-000

Unavailable

BOLT, STUD (6X28)

90135-107-720

$2.56

NUT, DRIVEN SPROCKET (TOKAI)

90352-122-003

$4.39

DUST SEAL (20X35X7) (ARAI)

91254-430-003

$9.46

DUST SEAL (20X35X7) (ARAI) This part replaces 91254-430-005.

91254-430-003

$9.46

NUT, HEX. (8MM)

94001-08000-0S

$1.49

WASHER, SPRING (8MM)

94111-08000

$1.49

BEARING, RADIAL BALL (6202U)

96140-62020-10

$10.85

SPOKE B (9X236)

97412-69312-Q0

Unavailable

SPOKE SET (BS8X195.5) (NOT AVAILABLE)

97450-69231-Q0

Unavailable

SPOKE B (9X195)

97714-69230-Q0

Unavailable
