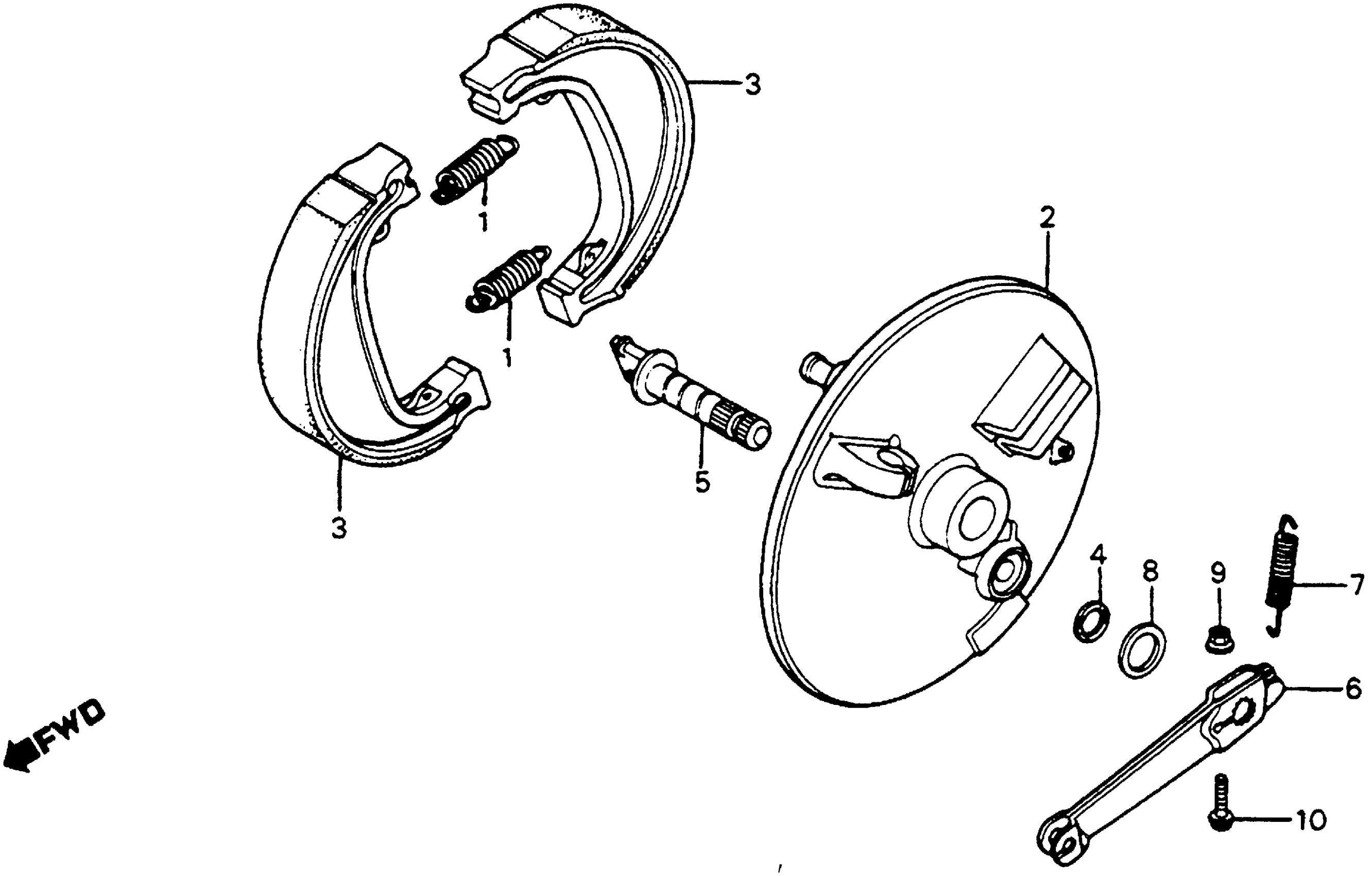

Honda CR125RA (81) ELSINORE, JPN, VIN# JH2JE010-BC200032 TO JH2JE010-BC206950 FRONT BRAKE PANEL 81 Diagram

#

Description
Price

NI

SHOE SET, BRAKE

06450-430-405

Unavailable

NI

SHOE SET, BRAKE This part replaces 451A2-430-000.

06450-430-405

Unavailable

1

SPRING, BRAKE SHOE

43151-329-000

$2.75

2

PANEL, FR. BRAKE (NOT AVAILABLE)

45100-430-000

Unavailable

3

SHOE, FR. BRAKE (SEE KIT P/N--END OF BLOCK) (NA USE ALT:06450-430-405)

45120-430-000

Unavailable

4

DUST SEAL, BRAKE CAM

45134-250-000

$2.92

5

CAM, FR. BRAKE (NOT AVAILABLE)

45141-KA3-000

Unavailable

6

ARM, FR. BRAKE (NOT AVAILABLE)

45410-KA3-000

Unavailable

7

SPRING, BRAKE ARM RETURN (NOT AVAILABLE)

45435-357-000

Unavailable

8

WASHER (14MM)

90509-169-000

Unavailable

8

WASHER (14MM) This part replaces 90525-MA0-000.

90509-169-000

Unavailable

9

NUT, FLANGE (6MM)

94050-06000

$1.49

10

BOLT, FLANGE (6X32) This part replaces 95700-06032-00.

95701-06032-00

$1.89

10

BOLT, FLANGE (6X32)

95701-06032-00

$1.89
