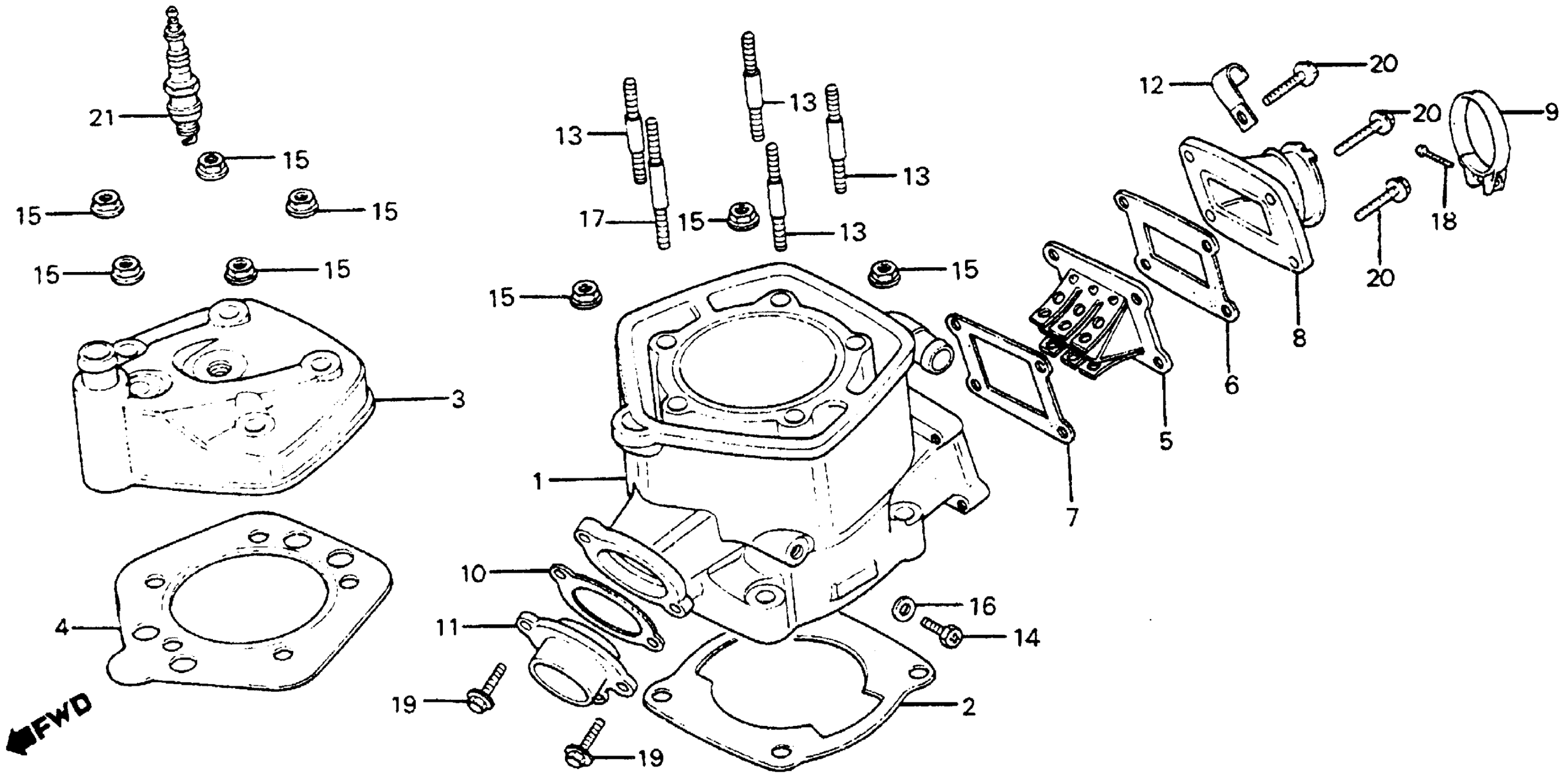

Honda CR125RA (81) ELSINORE, JPN, VIN# JH2JE010-BC200032 TO JH2JE010-BC206950 CYLINDER HEAD + CYLINDER + REED VALVE 81 Diagram

#

Description
Price

1

CYLINDER | Use up to Engine SN 2203302 This part replaces 12100-KA3-000.

12100-KA3-020

Unavailable

1

CYLINDER | Use up to Engine SN 2203302 This part replaces 12100-KA3-010.

12100-KA3-020

Unavailable

1

CYLINDER This part replaces 12100-KA3-010.

12100-KA3-020

Unavailable

1

CYLINDER | Use up to Engine SN 2203302

12100-KA3-020

Unavailable

1

CYLINDER

12100-KA3-020

Unavailable

2

GASKET, CYLINDER This part replaces 12191-444-000.

12191-444-306

$11.36

2

GASKET, CYLINDER

12191-444-306

$11.36

3

CYLINDER HEAD (NOT AVAILABLE)

12200-KA3-000

Unavailable

4

GASKET, CYLINDER HEAD This part replaces 12251-KA3-003.

12251-KA3-306

Unavailable

4

GASKET, CYLINDER HEAD

12251-KA3-306

Unavailable

5

VALVE, REED (NOT AVAILABLE)

14100-466-003

Unavailable

6

GASKET A, REED VALVE This part replaces 14131-444-000.

14131-444-306

Unavailable

7

GASKET B, REED VALVE This part replaces 14132-444-000.

14132-444-306

Unavailable

8

INSULATOR, CARBURETOR (NOT AVAILABLE) | Use up to Engine SN 2200033

16210-KA3-000

Unavailable

8

INSULATOR, CARBURETOR (NOT AVAILABLE) | Use from Engine SN 2200034

16221-KA3-000

Unavailable

9

BAND, INSULATOR (NOT AVAILABLE)

16223-KA3-000

Unavailable

10

GASKET, EX. JOINT This part replaces 18291-466-000.

18291-466-306

Unavailable

11

JOINT, EX. PIPE (NOT AVAILABLE)

18351-466-000

Unavailable

12

CLAMP, CABLE

32111-323-000

$3.98

13

BOLT, STUD (8X68) (NOT AVAILABLE) | Use from Engine SN 2203303

90031-KA4-000

Unavailable

13

BOLT, STUD (8X45) | Use up to Engine SN 2203302 This part replaces 92700-08065-3E.

92900-08045-3E

$2.16

13

BOLT, STUD (8X45) | Use up to Engine SN 2203302

92900-08045-3E

$2.16

14

BOLT, OIL CHECK

90037-360-000

$3.26

15

NUT, FLANGE (8MM) This part replaces 90236-300-000.

94050-08000

$1.49

15

NUT, FLANGE (8MM)

94050-08000

$1.49

16

GASKET, FR. FORK DRAIN VALVE

90543-273-000

$2.46

17

BOLT, STUD (8X70) (NOT AVAILABLE)

92700-08070-0E

Unavailable

18

SCREW, PAN (5X20)

93500-05020-0A

$1.49

19

BOLT, FLANGE (6X18) BOLT, HEX. (6X18) This part replaces 95700-06018-00.

95701-06018-00

$1.62

19

BOLT, FLANGE (6X18)

95701-06018-00

$1.62

20

BOLT, FLANGE (6X22)

95701-06022-00

$1.80

20

BOLT, FLANGE (6X22) This part replaces 95722-06022-00.

95701-06022-00

$1.80

21

SPARK PLUG (BR9EG) (NGK) This part replaces 98079-59644.

98079-59679

$5.80

21

SPARK PLUG (BR9EG) (NGK) This part replaces 98079-59654.

98079-59679

$5.80

21

SPARK PLUG (BR9EG) (NGK)

98079-59679

$5.80

21

SPARK PLUG (B10EV) (NGK) (NOT AVAILABLE) This part replaces 98079-60560.

98079-60644

Unavailable

21

SPARK PLUG (B10EV) (NGK) (NOT AVAILABLE)

98079-60644

Unavailable
