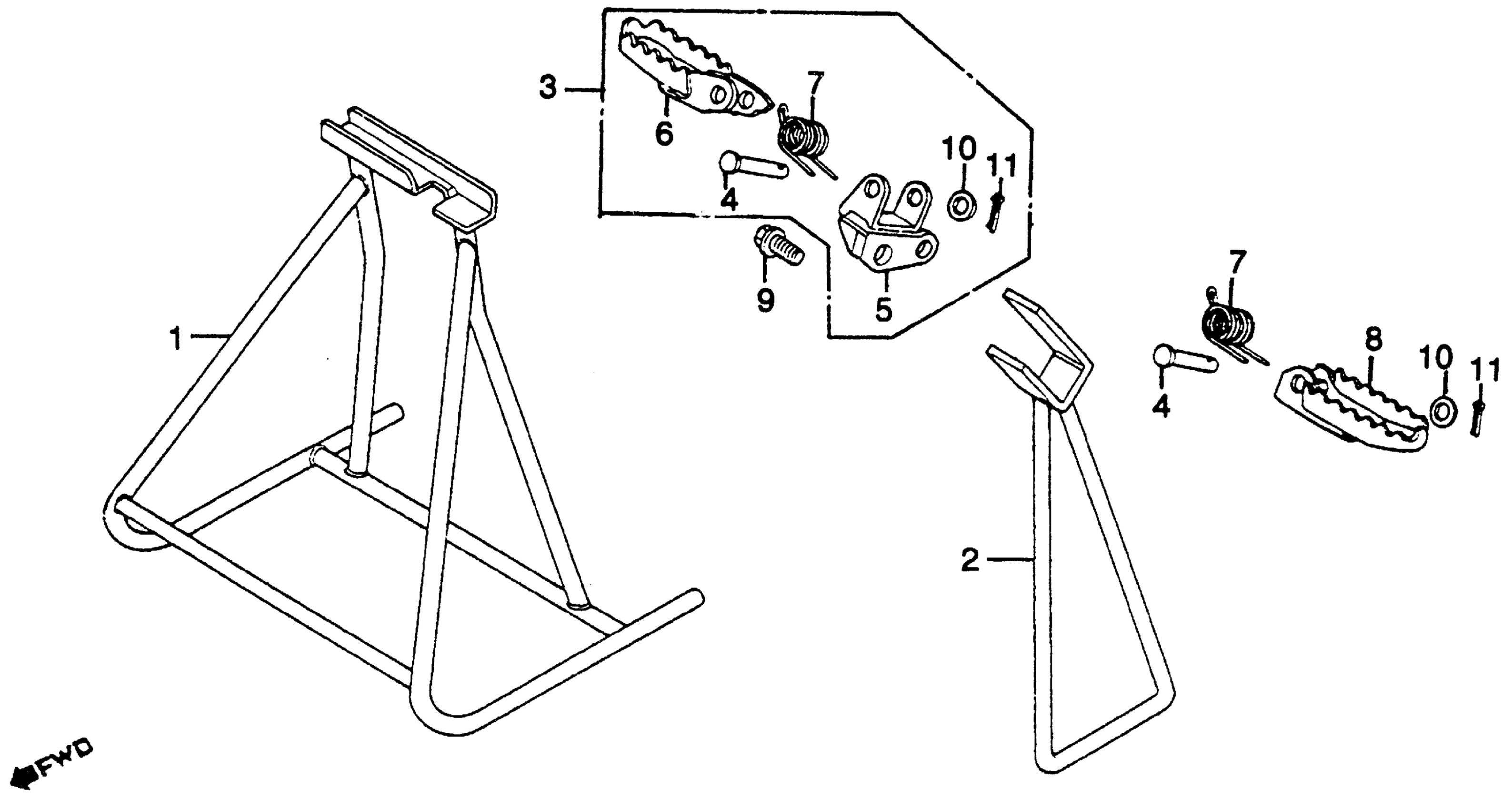

Honda CR125RA (80) ELSINORE, JPN, VIN# JE01-2100025 STAND + STEP 80 Diagram

#

Description

Price

1

STAND, MAIN (NOT AVAILABLE) | (Optional).

50500-444-810

Unavailable

2

BAR, SIDE STAND

50530-466-000

Unavailable

3

STEP ASSY., R. (NOT AVAILABLE)

50601-466-000

Unavailable

4

PIN, STEP JOINT (NOT AVAILABLE)

50603-444-000

Unavailable

5

BRACKET, R. STEP BAR (NOT AVAILABLE)

50613-466-000

Unavailable

6

ARM, R. STEP (NOT AVAILABLE)

50616-466-000

Unavailable

7

SPRING, FOOTPEG RETURN SPRING, STEP RETURN

50617-MA0-770

$5.80

7

SPRING, FOOTPEG RETURN This part replaces 50617-466-000.

50617-MA0-770

$5.80

8

ARM, L. STEP (NOT AVAILABLE)

50642-466-000

Unavailable

9

BOLT, FLANGE (12X20) (NOT AVAILABLE)

90120-444-000

Unavailable

10

WASHER (10.2MM)

90401-430-000

$1.64

11

PIN, COTTER (1.6X25) This part replaces 94201-16150.

94201-16250

$1.49

11

PIN, COTTER (1.6X25)

94201-16250

$1.49
