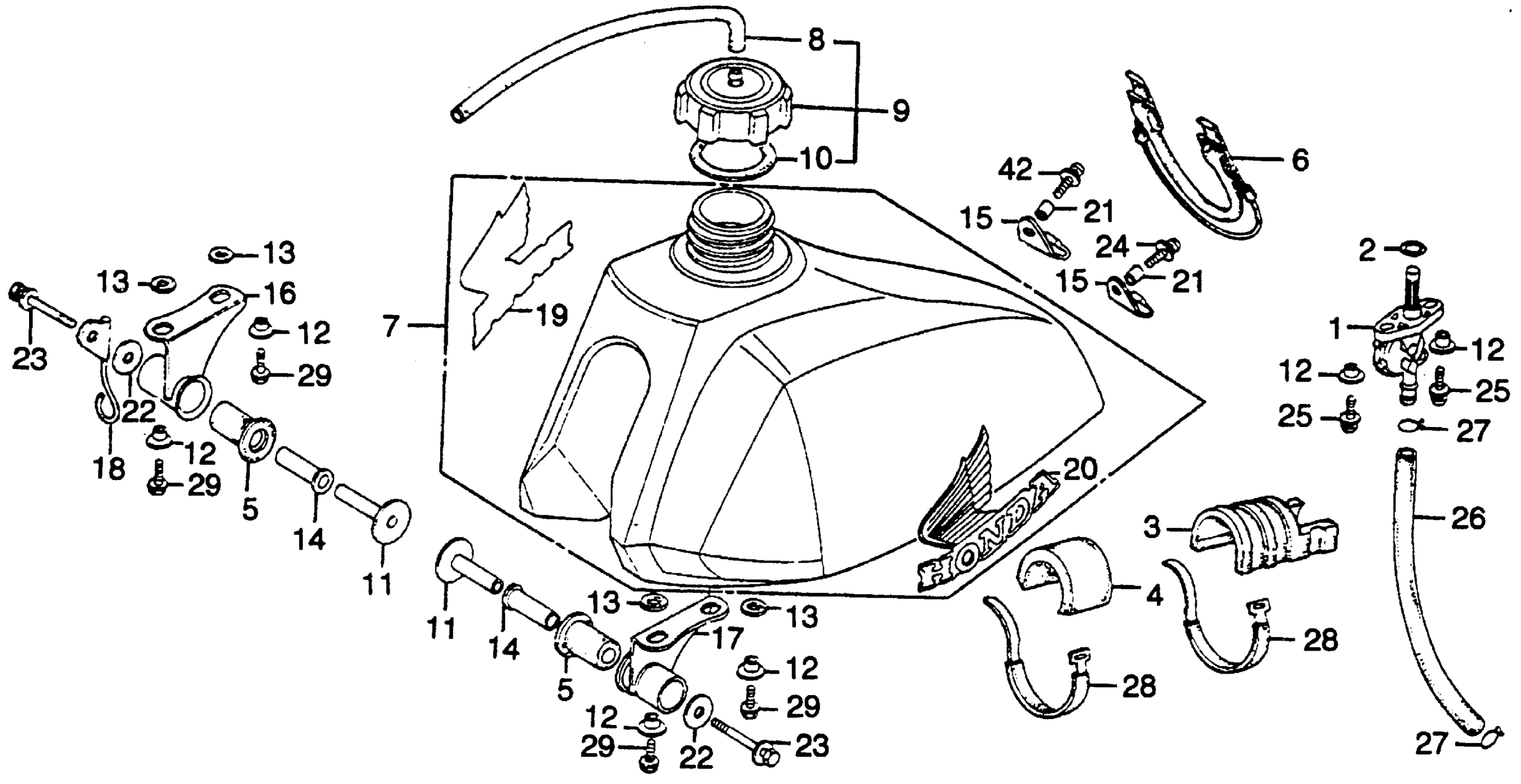

Honda CR125RA (80) ELSINORE, JPN, VIN# JE01-2100025 FUEL TANK 80 Diagram
#
Description
Price
3
RUBBER A, FUEL TANK MOUNT (NOT AVAILABLE)
17504-467-000
Unavailable
4
RUBBER B, FUEL TANK MOUNT (NOT AVAILABLE)
17506-357-000
Unavailable
5
RUBBER, FUEL TANK SETTING
17508-467-000
Unavailable
6
BAND, RR. FUEL TANK MOUNT (NOT AVAILABLE)
17516-466-000
Unavailable
7
TANK, FUEL This part replaces 17520-466-000.
17520-466-010
Unavailable
9
CAP ASSY., FUEL FILLER (NOT AVAILABLE)
17620-467-020
Unavailable
10
GASKET, FUEL TANK CAP
17624-467-020
Unavailable
11
COLLAR, FR. FUEL TANK (NOT AVAILABLE)
17625-467-010
Unavailable
14
COLLAR, SLIDER (NOT AVAILABLE)
17628-467-010
Unavailable
15
HOOK, RR. FUEL TANK (NOT AVAILABLE)
17629-467-000
Unavailable
16
BRACKET, R. TANK (NOT AVAILABLE)
17633-466-000
Unavailable
17
BRACKET, L. FR. FUEL TANK MOUNTING (NOT AVAILABLE)
17634-466-000
Unavailable
18
CLAMP, CLUTCH CABLE (NOT AVAILABLE)
22878-466-000
Unavailable
19
MARK, R. FUEL TANK (A.M.) (NOT AVAILABLE) This part replaces 87123-466-000.
87123-466-010
Unavailable
19
MARK, R. FUEL TANK (A.M.) (NOT AVAILABLE)
87123-466-010
Unavailable
20
MARK, L. FUEL TANK (A.M.) (NOT AVAILABLE) This part replaces 87124-466-000.
87124-466-010
Unavailable
20
MARK, L. FUEL TANK (A.M.) (NOT AVAILABLE)
87124-466-010
Unavailable
21
COLLAR, FUEL TANK MOUNT (NOT AVAILABLE)
90137-444-000
Unavailable
22
WASHER, SEAT
90501-040-000
Unavailable
23
BOLT-WASHER (6X55)
93491-06055-08
Unavailable
