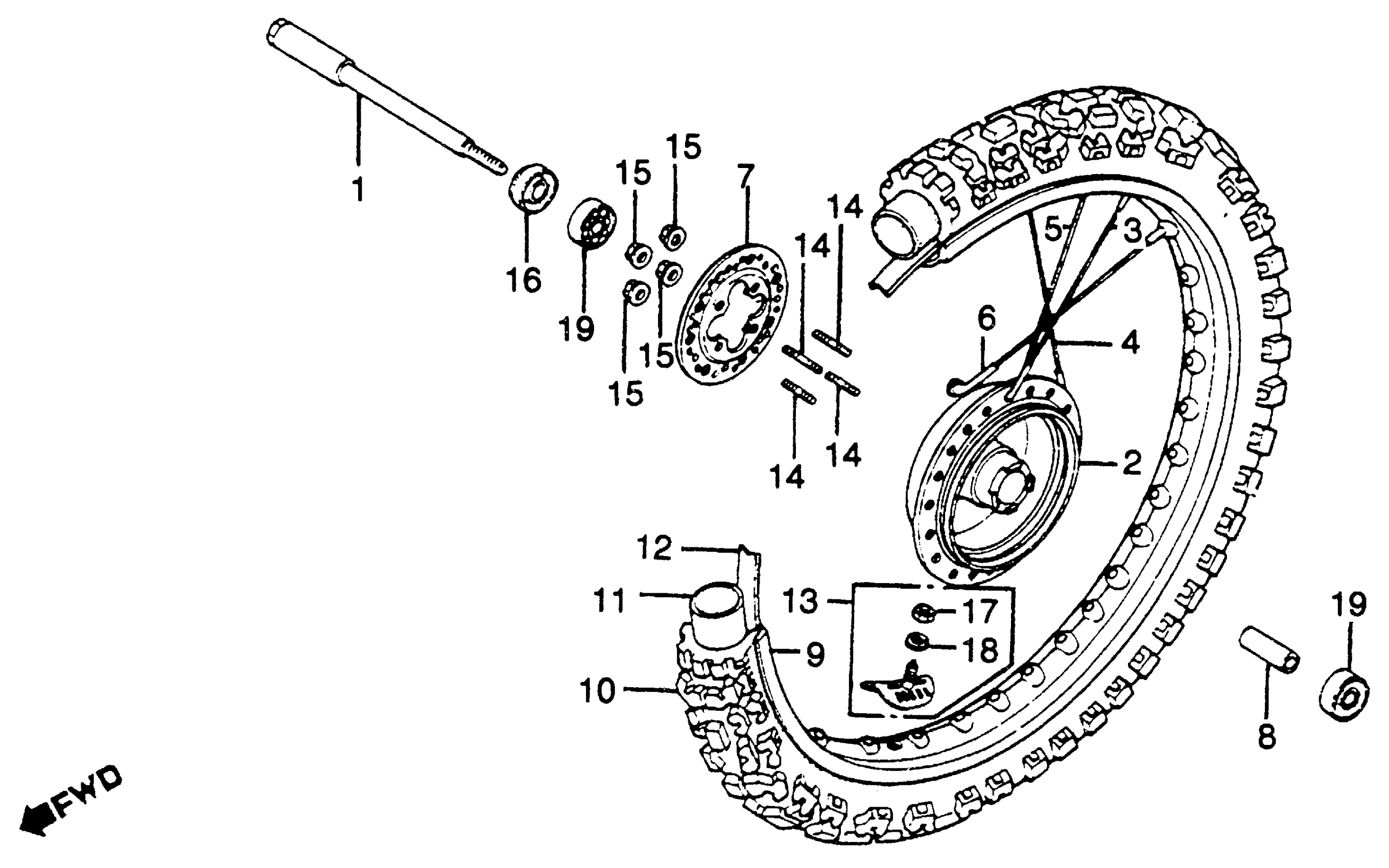

Honda CR125RA (80) ELSINORE, JPN, VIN# JE01-2100025 FRONT WHEEL Diagram
#
1
AXLE, FR. WHEEL (NOT AVAILABLE)
44301-430-700
Unavailable
2
HUB, FR. WHEEL (NOT AVAILABLE)
44601-430-000
Unavailable
3
SPOKE B (9X195) This part replaces 97606-52230-Q0.
97714-69230-Q0
Unavailable
3
SPOKE B (9X195)
97714-69230-Q0
Unavailable
4
SPOKE B (9X195.5)
97284-52231-Q0
Unavailable
5
SPOKE B (9X236) (NOT AVAILABLE)
97276-52312-Q0
Unavailable
5
SPOKE B (9X236)
97412-69312-Q0
Unavailable
6
SPOKE B (9X236) (NOT AVAILABLE)
97276-52312-Q0
Unavailable
6
SPOKE B (9X236)
97412-69312-Q0
Unavailable
7
FLANGE, FR. SPOKE This part replaces 44604-430-000.
44604-430-010
Unavailable
7
FLANGE, FR. SPOKE
44604-430-010
Unavailable
8
COLLAR, FR. WHEEL DISTANCE
44620-428-000
Unavailable
8
COLLAR, FR. WHEEL DISTANCE This part replaces 44620-430-000.
44620-428-000
Unavailable
9
RIM, FR. WHEEL (NOT AVAILABLE)
44701-430-003
Unavailable
10
TIRE, FR. (80/100-21) (BS) This part replaces 44711-KA3-841.
44711-KCE-671
Unavailable
10
TIRE, FR. (80/100-21) (BS)
44711-KCE-671
Unavailable
10
TIRE, FR. (80/100-21) (BS) This part replaces 44711-KS7-771.
44711-KCE-671
Unavailable
10
TIRE, FR. (3.00-21) (BS)
44711-466-003
Unavailable
11
TUBE, TIRE (2.75/3.00-21) (INOUE) This part replaces 0Y400-33100.
44712-446-631
Unavailable
11
TUBE, TIRE (2.75/3.00-21) (INOUE) This part replaces 08400-33100.
44712-446-631
Unavailable
11
TUBE, TIRE (2.75/3.00-21) (INOUE) This part replaces 08400-34010.
44712-446-631
Unavailable
11
TUBE, TIRE (2.75/3.00-21) (INOUE) This part replaces 44712-KB1-911.
44712-446-631
Unavailable
11
TUBE, TIRE (2.75/3.00-21) (INOUE) This part replaces 44712-MC4-005.
44712-446-631
Unavailable
11
TUBE, TIRE (2.75/3.00-21) (INOUE) This part replaces 44712-329-003.
44712-446-631
Unavailable
11
TUBE, TIRE (2.75/3.00-21) (INOUE) This part replaces 44712-331-671.
44712-446-631
Unavailable
11
TUBE, TIRE (2.75/3.00-21) (INOUE) This part replaces 44712-340-003.
44712-446-631
Unavailable
11
TUBE, TIRE (2.75/3.00-21) (INOUE) This part replaces 44712-340-006.
44712-446-631
Unavailable
11
TUBE, TIRE (2.75/3.00-21) (INOUE) This part replaces 44712-400-004.
44712-446-631
Unavailable
11
TUBE, TIRE (2.75/3.00-21) (INOUE) This part replaces 44712-437-971.
44712-446-631
Unavailable
11
TUBE, TIRE (2.75/3.00-21) (INOUE) This part replaces 44712-446-003.
44712-446-631
Unavailable
11
TUBE, TIRE (2.75/3.00-21) (INOUE)
44712-446-631
Unavailable
12
FLAP, TIRE (1.60-21) (BS) (NOT AVAILABLE)
44713-340-003
Unavailable
13
STOPPER, BEAD (1.60) (NOT AVAILABLE)
44715-444-000
Unavailable
